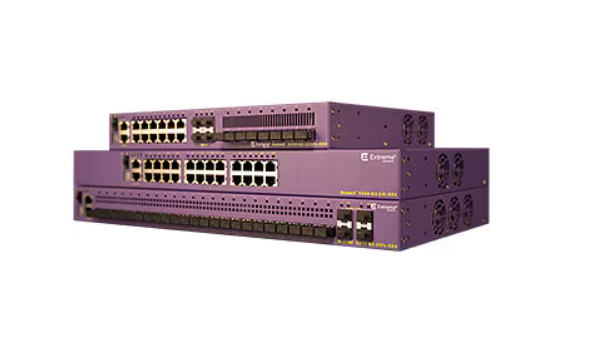

Extreme Networks ExtremeSwitching X440-G2 X440-G2-48p-10GE4 – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Extreme switch
  • Managed
  • 48-ports
  • Consumes 961 watts
  • ExtremeXOS operating system
  • Rack-mountable
  • Hot-pluggable AC 120/230 V internal power supply
  • 1 RU

7,299.00 د.إ

Add to Wishlist

Know your gear

Improve network management using the Extreme NetworksĀ® ExtremeSwitchingā„¢ X440-G2-48p-10GE4 Edge Switch. With 48 10/100/1000 Ethernet, two 1 Gigabit / 10 Gigabit SFP+ and four combo SFP ports, it enables swift network expansion. Since it runs on the user-friendly ExtremeXOS operating system, this switch is easy to operate. Choose from a broad range of network management options such as ExtremeCloudā„¢ IQ, Extreme Cloud Appliance and Extreme Management Center to meet your unique needs. The Extreme switch X440 supports cloud-based and on-premise configuration for versatility. Use zero-touch provisioning to enable quick deployment of new sites.

This switch comes with PoE+ technology, which helps reduce cable clutter and simplify installation. It uses a hot-pluggable AC 120/230 V internal power supply and consumes 961 watts. Built-in a compact 1 RU rack-mountable form factor, the X440 series Extreme Networks switch saves server room space. It has LEDs that indicate accurate power and port status to allow fast troubleshooting. This product comes with an Extreme Networks limited lifetime

SKU: 16535 Category: Tag:
Category Details
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching X440-G2
Model X440-G2-48p-10GE4
Manufacturer EXTREME NETWORKS
Processor
Clock Speed 1 GHz
Processor Brand MIPS
Memory
Flash Memory Installed 4 GB
Memory Technology DDR3 SDRAM
RAM Installed 1 GB
Network & Communication
Compliant Standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Features 3MB packet buffer, CLEAR-Flow Security Rules Engine, DoS attack prevention, Traffic shaping
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 16K entries
Manageable Yes
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Stackable Stackable
Status Indicators Fan, Port status, Power
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
QSFP Slots Combo SFP
Connectivity
Interface Provided 1 x console RJ-45 management, 1 x management (Gigabit LAN) RJ-45, 48 x 1000Base-T RJ-45 PoE+ – 30 W, 8 x 10GBase-X SFP+
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+
Power
Features Redundant Power System (RPS) connector
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Consumption Operational 961 watt
Power Supplies Installed 1
Power Supplies Supported 2
Redundant Power Supply Optional
Software
Software Type ExtremeXOS Edge
Technical Information
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 122 degrees Fahrenheit
Max Storage Temperature 158 degrees Fahrenheit
Min Operating Temperature 32 degrees Fahrenheit
Min Storage Temperature -40 degrees Fahrenheit
Operating Humidity 10 – 95% (non-condensing)
Product Information
Capacity QoS hardware queues per port: 8, Virtual interfaces (VLANs): 4094
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate switching bandwidth: 176 Gbps, Forwarding performance: 130.9 Mpps, Latency (64-byte packets): 4 Āµs
Ports (2nd) Quantity 2
Ports (3rd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 14.55 lbs
Width 17.4 inch
Depth 14.5 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards 21 CFR 1040.10, ACMA, AS/NZS 60950-1, CB, CCC, CDRH, China RoHS, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1-03, EMC, EMC 2004/108/EC, EN 60825-1, EN 60950-1 Second Edition, EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-4-11, EN 61000-4-2:2009, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5:2006, EN 61000-4-6:2009, EN55022:2006+A1:2007 Class A, EN55024 Class A, FCC, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-2:2008, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-4:2004, IEC 61000-4-5, IEC 61000-4-5:2005, IEC 61000-4-6, IEC 61000-4-6:2008, KCC, LVD 2006/95/EC, RCM, RoHS, UL 60950-1 Second Edition, VCCI Class A, WEEE
ENERGY STAR Certified No
