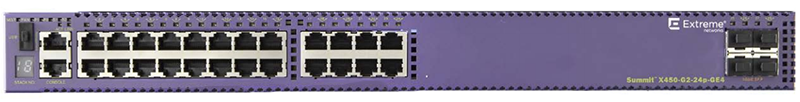

Extreme Networks ExtremeSwitching X450-G2 24-port Switch

Scalable edge switches with ExtremeXOS operating system
24-port or 48-port Gigabit Ethernet connectivity
Copper and PoE+ models
4 x 10Gb SFP+ uplink ports on front faceplate
Built-in 21Gbps stacking ports on rear panel for all models (SummitStack-V84)
Front-to-Back airflow
Modular PoE power supplies
Hot-swappable fan tray and PoE power supplies
All configurations non-blocking full duplex
Role-based policy and Fabric Attach for secure, automated access to network applications or services

22,399.00 د.إ

Overview:

The ExtremeSwitching X450-G2 series is based on Extreme Networks ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability and operational efficiency. Each switch offers the same high-performance, non-blocking hardware technology, The X450-G2 series switches provide high-performance routing and switching, flexible stacking, PoE+ support and comprehensive security, while extending the benefits of ExtremeXOS to the campus edge.

The X450-G2 Series easy-to-use, yet powerful, management options include ExtremeCloudTM IQ and Extreme Management Center for either cloud-based or on-premise oversight and configuration. The X450-G2 also supports role-based policies and Fabric Attach for secure, automated access to specific network resources and applications.

Smart Management Choices

ExtremeCloud™ IQ for powerful, simple and secure public or private cloud management
Extreme Management Center for centralized, unified management capabilities

Features:

High-Performance Stacking

Up to eight X450-G2 switches can be stacked using two different methods of stacking: SummitStack-V, and SummitStack-V84. Each X450-G2 unit comes equipped with 2 ports of 21 Gigabit stacking ports via a QSFP interface. Standard passive 40Gb copper cables can be used for stacking X450-G2s together.

Fabric Attach

Fabric Attach on the X450-G2 can be used to automate the connection to Extreme’s campus-based Fabric Connect solution. Fabric Attach not only provides zero-touch edge provisioning, it also allows the X450-G2 to take advantage of the virtualized services and inherent security capabilities of the Extreme Fabric Connect infrastructure.

Power over Ethernet

X450-G2 Series switches support both IEEE 802.3at PoE+ and IEEE 802.3af PoE to enable connection of standards compliant PoE devices. Power over Ethernet allows connection of Ethernet-powered devices, such as wireless access points, Voice over IP phones, and security cameras. The X450-G2 can support full PoE+ 30W power across all 24 or 48 ports using its internal power supplies.

Audio Video Bridging

The X450-G2 series supports IEEE 802.1 Audio Video Bridging (AVB) to enable reliable, real-time audio/ video transmission over Ethernet. AVB technology delivers the quality of service required for today’s high-definition and time-sensitive multimedia streams.

Role-Based Policy

The X450-G2 supports role-based policies that can be centrally administered through the ExtremeControl policy manager. This policy framework empowers network administrators to define distinct roles or profiles to represent specific operational groups that may exist in an enterprise. Each defined role can then be granted individualized access to specific network services and applications and these access privileges remain associated with users as they move across both wired and wireless network access points.

Management

The X450-G2 can be managed in a variety of ways. Simple on-box management functions are delivered by a web-based GUI, and a generic CLI is available for manual configuration.

ExtremeCloudTM IQ along with Extreme Management Center (XMC) provide a comprehensive unified management capability with a consolidated view of users, devices and applications for wired and wireless networks. Zero-touch provisioning lets one quickly bring new X450-G2 switches online and a granular view of devices, ports and users enables efficient inventory and network topology management.

SKU: 16172 Category: Switches Tag: 16172

Specifications:

	X450-G2-24t-10GE4
Performance and Scale
Maximiu Active Gbe Ports	24
Maximiu Active 10Gbe Ports	4
21 Gbps Stacking Ports	2
Aggregated Switch Bandswitch*	212 Gbps
Frame Forwarding Rate*	157.7 Mpps
External Ports
External Ports	24 x 10/100/1000BASE-T (RJ-45)
	4 x 10GBASE-X SFP+ (unpopulated ports)
	1 x Serial (console port RJ-45) with RTS/CTS modem control
	1 x 10/100/1000BASE-T out-of-band management port
	1 x USB 2.0 port for external USB flash
	2 dedicated QSFP-form factor 21Gbps stacking ports on the rear panel
Physical
Dimension	Height: 1 RU / 1.73 inches (4.4 cm)
	Width: 17.4 inches (44.2 cm)
	Depth: 19.2 inches (48.8 cm)
Weight	13.71 lb (6.22 kg)
Power
Minimum Heat Dissipation (BTU/HR)	149.4
Minimum Power Consumption (Watts)	43.8
Maximum Heat Dissipation (BTU/HR)	244.6
Maximum Power Consumption* (Watts)	71.1
Non-PoE Switches
Voltage Input Range	100-240 VAC
Line Frequency Range	47 to 64 Hz
Power Supply Input Socket	IEC 320 C14
Power Cord Input Plug	IEC 320 C13
Operating Temperature	0° C to 50° C Normal Operation

CPU/Memory

64-bit MIPS Processor, 1 GHz clock, dual core
1GB ECC DDR3 DRAM
4GB eMMC Flash
4MB packet buffer

LED Indicators

Per port status LED including power status
System Status LEDs: management, fan and power
7 segment display of stack number

Performance

Less than 4 microsecond latency (64-byte)
Layer 2/MAC Addresses: 68K
IPv4 LPM Entries: 16K
IPv6 LPM (64-bit) Entries: 8K
IPv6 LPM (128-bit) Entries: 256
4096 VLAN/VMANs*
9216 Byte Max Packet Size (Jumbo Frame)
128 load sharing trunks, up to 32 members per trunk
1,024 ingress bandwidth meters
Ingress and egress bandwidth policing/rate limiting per flow/ACL
8 QoS egress queues/port
Egress bandwidth rate shaping per egress queue and per port
Rate Limiting Granularity: 8 Kbps
Rate Limiting: Per Class of Service
All ports Full Duplex – half duplex operation is not supported

Policy Capabilities

Policy Profiles: 63
Rules per Profile: Up to 1464
Authenticated Policy Users per Switch: Up to 1024
Authenticated Policy Users per Port: Up to 1024
Unique Permit/Deny Rules per switch: 1464
- MAC Rules: 512
- IPv4 Rules: 512
- IPv6 Rules: 256
- L2 Rules: 184

Environmental Specifications

EN/ETSI 300 019-2-1 v2.1.2 – Class 1.2 Storage
EN/ETSI 300 019-2-2 v2.1.2 – Class 2.3 Transportation
EN/ETSI 300 019-2-3 v2.1.2 – Class 3.1e Operational
EN/ETSI 300 753 (1997-10) – Acoustic Noise
ASTM D3580 Random Vibration Unpackaged 1.5 G

Environmental Compliance

EU RoHS: 2011/65/EU
EU WEEE: 2012/19/EU
China RoHS: SJ/T 11363-2006
Taiwan RoHS: CNS 15663 (2013.7)

Operating Conditions

Temp: 0° C to 50° C (32° F to 122° F)
Humidity: 10% to 95% relative humidity, non-condensing
Altitude: 0 to 5,000 meters (16,404 feet) – PoE switches
Altitude: 0 to 2,000 meters (6,562 feet) – non- PoE switches
Shock (half sine): 30 m/s2 (3 G), 11 ms, 6 shocks
Random vibration: 3 to 500 Hz at 1.5 G rms

Packaging and Storing Specifications

Temp: -40° C to 70° C (-40° F to 158° F)
Humidity: 10% to 95% relative humidity, non-condensing
Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms,
600 shocks
Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G
Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz
Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)

Regulatory and Safety

North American ITE
- UL 60950-1 2nd Ed., Listed Device (U.S.)
- CSA 22.2 #60950-1-03 2nd Ed. (Canada)
- Complies with FCC 21CFR 1040.10 (U.S. Laser Safety)
- CDRH Letter of Approval (US FDA Approval)
European ITE
- EN 60950-1:2007 2nd Ed.
- EN 60825-1:2007/IEC 60825 2007 Class 1
- (Lasers Safety)
- TUV-R GS Mark by German Notified Body
- 2014/35/EU Low Voltage Directive
International ITE
- CB Report & Certificate per IEC 60950-1 2nd Ed. + National Differences
- AS/NZX 60950-1 (Australia /New Zealand)

EMI/EMC Standards

North American EMC for ITE
- FCC CFR 47 part 15 Class A (USA)
- ICES-003 Class A (Canada)
European EMC Standards
- EN 55022:2006+A1:2007 Class A
- EN 55024:A2-2003 Class A includes IEC 61000-4-2, 3, 4, 5, 6, 11
- EN 61000-3-2,8-2006 (Harmonics)
- EN 61000-3-3 2008 (Flicker)
- ETSI EN 300 386 v1.4.1, 2008-04 (EMC Telecommunications)
- 2004/108/EC EMC Directive
International EMC Certifications
- CISPR 22: 2006 Ed 5.2, Class A (International Emissions)
- CISPR 24:A2:2003 Class A (International Immunity)
- IEC 61000-4-2:2008/EN 61000-4-2:2009 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria A
- IEC 61000-4-3:2008/EN 61000-4-3:2006+A1:2008 Radiated Immunity 10V/m, Criteria A
- IEC 61000-4-4:2004 am1 ed.2./EN 61000-4-4:2004/A1:2010 Transient Burst, 1 kV, Criteria A
- IEC 61000-4-5:2005 /EN 61000-4-5:2006 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A
- IEC 61000-4-6:2008/EN 61000-4-6:2009 Conducted Immunity, 0.15- 80 MHz, 10V/m unmod. RMS, Criteria A
- IEC/EN 61000-4-11:2004 Power Dips & Interruptions, >30%, 25 periods, Criteria C

Country Specific

VCCI Class A (Japan Emissions)
ACMA (C-Tick) (Australia Emissions)
CCC Mark
KCC Mark, EMC Approval (Korea)

Telecom Standards

ETSI EN 300 386:2001 (EMC Telecommunications)
ETSI EN 300 019
(Environmental for Telecommunications)
CE 2.0 Compliant

IEEE 802.3 Media Access Standards

IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3ae 10GBASE-X
IEEE 802.3at PoE Plus
IEEE 802.3az (EEE)
