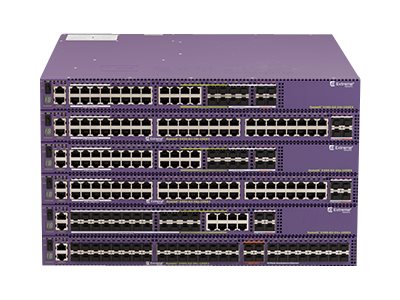

Extreme Networks ExtremeSwitching X460-G2 Series X460-G2-24t-GE4 – switch – 24 ports – managed – rack-mountable 16716

Availability:

10 in stock
Add to Wishlist

12,399.00 د.إ

10 in stock

Add to Wishlist

Extreme Networks Inc. Summit X460-G2 Series X460-G2-24t-GE4 – Switch – 24 Ports



Overview

Summit X460-G2 series is the scalable advanced aggregation and edge switch with the revolutionary ExtremeXOS modular operating system.

The Summit X460-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability, and operational efficiency. Each switch offers the same high-performance, non-blocking hardware technology, in the Extreme Networks tradition of simplifying network deployments through the use of common hardware and software throughout the network.

The Summit X460-G2 switches are effective campus-edge switches with IEEE 802.3at PoE-plus and can also serve as aggregation switches for traditional enterprise networks. The Summit X460-G2 series is also an option for DSLAM or CMTS aggregation, or for active Ethernet access.

The Summit X460-G2 can also be used as a top-of-rack switch for many data center environments with features such as high-density Gigabit Ethernet for concentrated data center environments; XNV (ExtremeXOS Network Virtualization) for centralized network-based Virtual Machine (VM) inventory, VM location history, and VM provisioning; direct attach to offload VM switching from servers, thereby improving performance; high-capacity layer 2/layer 3 scalability for highly virtualized data centers, and intra-rack and cross-rack stacking with industry-leading flexibility.

High-performance and highly scalable switching and routing

Summit X460-G2 offers core-class intelligent switching and routing with exceptional port density and high-performance stacking technology powered by the ExtremeXOS modular operating system.

High density, small form factor

Extreme Networks Summit X460-G2 provides high density for Gigabit Ethernet in a very small 1 RU form factor for up to 52 ports in one system. For emerging demands from data, storage, voice, and data convergence, Summit X460-G2 provides highly scalable layer 2/3 switching and Multiprotocol Label Switching (MPLS)/Hierarchical Virtual Private LAN Service (H-VPLS). Summit X460 switches also support provider bridges.

High availability and simplicity

Summit X460-G2 enables enterprise campus, data center, and carrier Ethernet edge, aggregation and core backbone deployment in AC-powered and DC-powered environments. Summit X460-G2 simplifies network operation with ExtremeXOS modular OS, available across Extreme Networks Ethernet switches. The ExtremeXOS operating system provides high availability and simplicity with one OS everywhere in the network.

1588 Precision Time Protocol (PTP)

The Summit X460-G2 series offers optional Boundary Clock (BC), Transparent Clock (TC), and Ordinary Clock (OC) for synchronizing phase and frequency and allowing the network and the connected devices to be synchronized down to microseconds of accuracy over Ethernet connection.

Audio Video Bridging (AVB)

The Summit X460-G2 series supports IEEE 802.1 Audio Video Bridging to enable reliable, real-time audio/video transmission over Ethernet. AVB technology delivers the quality of service required for today’s high-definition and time-sensitive multimedia streams.
SKU: 16716 Category: Tags: , ,

Specifications

General
Device Type Switch – 24 ports – managed – stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x shared SFP + 8 x SFP
Performance Aggregate switching bandwidth: 220 Gbps Forwarding performance: 163.7 Mpps
Capacity Virtual interfaces (VLANs): 4094 QoS hardware queues per port: 8
MAC Address Table Size 98K entries
Jumbo Frame Support 9216 bytes
Features 4MB packet buffer
Compliant Standards IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az
Processor X MIPS: 1 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Status Indicators Port status, power, fan
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 1 x console RJ-45 management 1 x management (LAN) RJ-45 1 x USB Type A 12 x 1000Base-X SFP
Expansion Slots 2 (total) / 2 (free) x expansion slot
Installed Modules Qty (Max) 0 (installed) / 2 (max)
Power
Power Device Internal power supply – hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards NEBS level 3, TUV GS, C-Tick, CISPR 22 Class A, CISPR 24, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN55024, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, FCC, EN 61000-4-11, FCC CFR47 Part 15, EN 60950-1, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, KCC, FDA, CDRH, IEC 60950-1 Second Edition, EN 61000-3-2:2006, EN 61000-3-3:2008, VCCI Class A, EN 60825-1:2001, EN 300 386 V1.4.1, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EMC 2004/108/EC, LVD 2006/95/EC, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-4:2004, IEC 61000-4-5:2005, IEC 61000-4-6:2008, EN55022:2006 + A1:2007, EN 300386
Dimensions & Weight
Width 17.4 in
Depth 17 in
Height 1.7 in
Weight 12.9 lbs
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 – 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 – 95% (non-condensing)
General
Capacity Virtual interfaces (VLANs): 4094 ¦ QoS hardware queues per port: 8
Compliant Standards IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az
Device Type Switch – 24 ports – managed – stackable
Enclosure Type Rack-mountable 1U
Features 4MB packet buffer
Flash Memory 4 GB
Jumbo Frame Support 9216 bytes
MAC Address Table Size 98K entries
Performance Aggregate switching bandwidth: 220 Gbps ¦ Forwarding performance: 163.7 Mpps
Ports 24 x 10/100/1000 + 4 x shared SFP + 8 x SFP
Processor X MIPS: 1 GHz
RAM 1 GB DDR3 SDRAM
Status Indicators Port status, power, fan
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 17 in
Height 1.7 in
Weight 12.9 lbs
Width 17.4 in
Environmental Parameters
Humidity Range Operating 10 – 95% (non-condensing)
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 122 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Expansion Slots 2 (total) / 2 (free) x expansion slot
Installed Modules Qty (Max) 0 (installed) / 2 (max)
Interfaces 24 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 management ¦ 1 x management (LAN) RJ-45 ¦ 1 x USB Type A ¦ 12 x 1000Base-X SFP
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Miscellaneous
Compliant Standards NEBS level 3, TUV GS, C-Tick, CISPR 22 Class A, CISPR 24, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN55024, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, FCC, EN 61000-4-11, FCC CFR47 Part 15, EN 60950-1, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, KCC, FDA, CDRH, IEC 60950-1 Second Edition, EN 61000-3-2:2006, EN 61000-3-3:2008, VCCI Class A, EN 60825-1:2001, EN 300386, EN 300 386 V1.4.1, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EMC 2004/108/EC, LVD 2006/95/EC, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-4:2004, IEC 61000-4-5:2005, IEC 61000-4-6:2008, EN 55022:2006+A1:2007
Power
Installed Qty 0 (installed) / 2 (max)
Power Device Internal power supply – hot-plug
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
