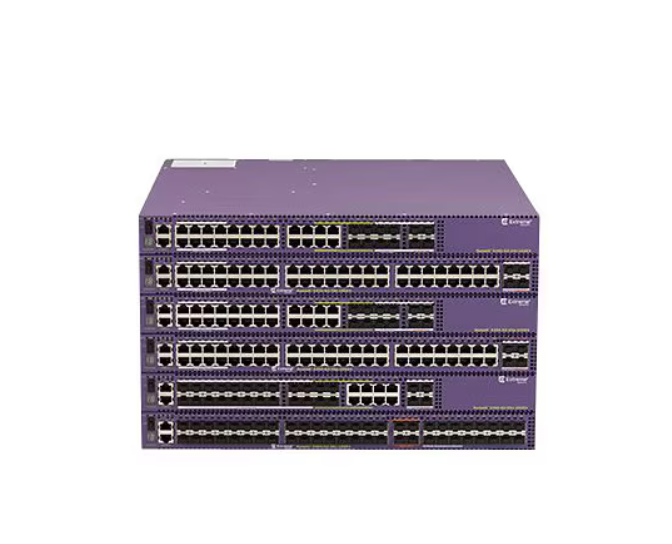

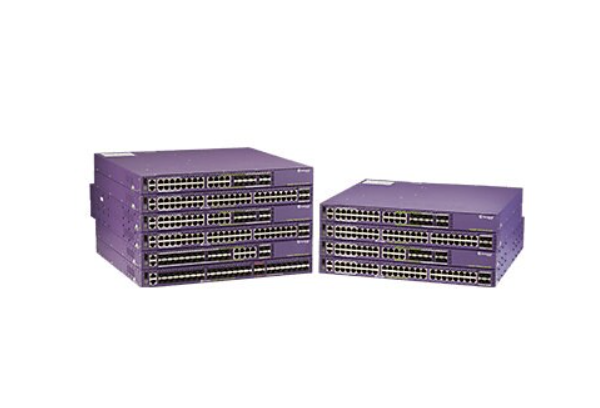

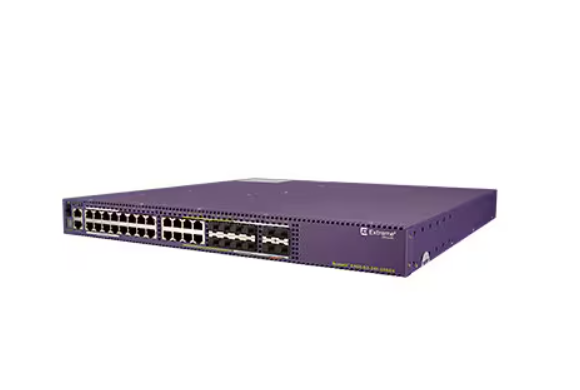

Extreme Networks ExtremeSwitching X460-G2 Series X460-G2-48p-10GE4 – switch – 48 ports – managed – rack-mountable


Quick tech specs

  • G2 Series X460-G2-48p-10GE4
  • managed
  • rack-mountable
  • Switch
  • 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
  • PoE+

10,599.00 د.إ

Know your gear

The Summit X460-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability and operational efficiency. Each switch offers the same high-performance, non-blocking hardware technology, in the Extreme Networks tradition of simplifying network deployments through the use of common hardware and software throughout the network. The Summit X460-G2 switches are effective campus edge switches that support Energy Efficient Ethernet (EEE – IEEE 802.3az) with IEEE 802.3at PoE-plus and can also serve as aggregation switches for traditional enterprise networks. The Summit X460-G2 series is also an option for DSLAM or CMTS aggregation, or for active Ethernet access. The Summit X460-G2 can also be used as a top-of-rack switch for many data center environments with features such as high-density Gigabit Ethernet for concentrated data center environments; XN V (ExtremeXOS Network Virtualization) for centralized network-based Virtual Machine (VM) inventory. VM location history and VM provisioning: Direct Attach to offload VM switching from servers, thereby improving performance: high-capacity Layer 2/Layer 3 scalability for highly virtualized data centers: and intra-rack and cross-rack stacking with industry-leading flexibility.
SKU: 16704 Category: Tag:
Category Details
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching X460-G2 Series
Model X460-G2-48p-10GE4
Manufacturer EXTREME NETWORKS
Processor
Clock Speed 1 GHz
Processor Brand MIPS
Memory
Flash Memory Installed 4 GB
Memory Technology DDR3 SDRAM
RAM Installed 1 GB
Network & Communication
Compliant Standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3z
Features 4MB packet buffer, CLEAR-Flow Security Rules Engine, DoS attack prevention, Traffic shaping
Form Factor Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 96K entries
Manageable Yes
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Stackable Stackable
Status Indicators Fan, Port status, Power
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
Expansion Slots 2 (total) / 2 (free) x expansion slot
Connectivity
Interface Provided 1 x console RJ-45 management, 1 x management (Gigabit LAN) RJ-45, 1 x USB Type A, 4 x 10GBase-X SFP+, 48 x 1000Base-T RJ-45 PoE+
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Supplies Supported 2
Redundant Power Supply Optional
Technical Information
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 122°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -40°F
Operating Humidity 10 – 95% (non-condensing)
Supported Devices 2
Product Information
Capacity QoS hardware queues per port: 8, Virtual interfaces (VLANs): 4094
Device Type Internal power supply (not installed)
Installed Devices/Modules 0
Packaged Quantity 1
Performance Aggregate switching bandwidth: 336 Gbps, Forwarding performance: 250 Mpps, Latency (64-byte packets): 4 µs
Ports (2nd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 15.21 lbs
Width 17.4 inch
Depth 19.1 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards 21 CFR 1040.10, AS/NZS 60950-1, CB, CCC, CDRH, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1-03, C-Tick, EMC, EN 300 386, EN 55022:2006+A1:2007, FCC, UL 60950-1 Second Edition, NEBS level 3, and more
ENERGY STAR Certified No
