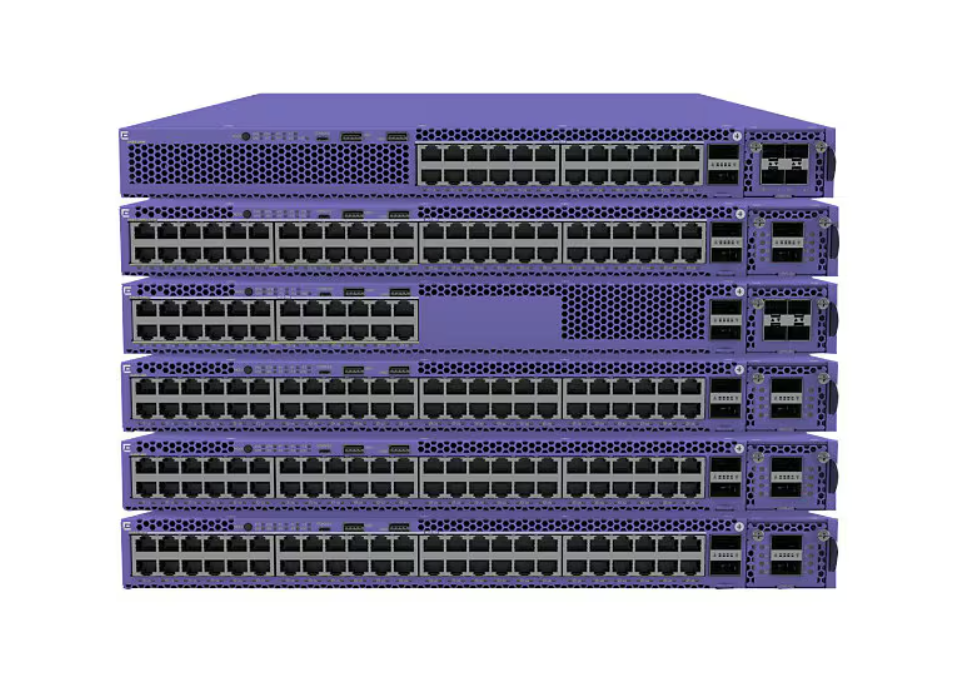

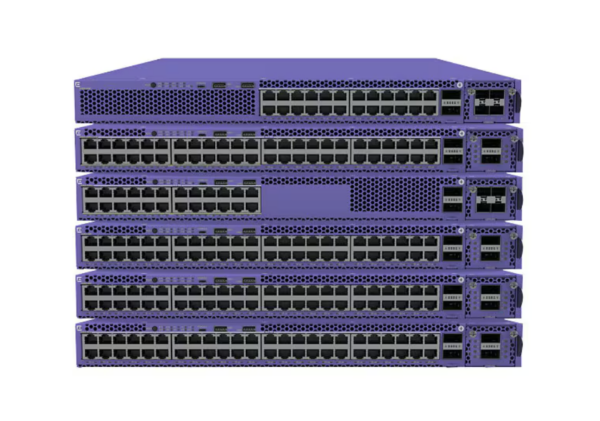

Extreme Networks ExtremeSwitching X465 Series X465-24MU-24W – Bundle – switch – 24 ports – managed – rack-mountable


Quick tech specs

  • 24MU-24W
  • switch
  • managed
  • rack-mountable
  • Bundle
  • L3
  • 24 x 100/1000/2.5G/5GBase-T (UPOE) + 24 x 10/100/1000 (UPOE) + 2 x 40 Gigabit QSFP+
  • UPOE (1668 W)

AED16,799.00

Know your gear

The ExtremeSwitching X465 Series is a premium stackable switch family providing high-performance, convergence-ready, resilient and secure Ethernet connectivity. Powered by ExtremeXOS, the X465 Series offers sophisticated routing and switching, high-speed stacking, modular uplink options, advanced PoE, and comprehensive security. This makes the X465 Series an ideal choice for high-end wiring closet and network edge deployments
SKU: X465-24MU-24W Category: Tag:

Overview

Field Details
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching X465 Series
Model X465-24MU-24W
Manufacturer EXTREME NETWORKS

Memory

Field Details
RAM Installed 8 GB

Network & Communication

Field Details
Advanced Switching Layer 3
Compliant Standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3bz
Features 3 fans, Flexible UFT, Full/Half duplex mode, Insight Architecture ready, MACsec support, PFC, VPLS, VXLAN VTEP support
Form Factor Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 272K entries
Manageable Yes
Max Units in a Stack 8
PoE Budget 1668 watt
Ports 24
Power Over Ethernet (PoE) UPOE
Product Type Switch
Remote Management CLI
Routing Protocol BGP, MPLS, OSPF, PIM-SM, RIP, Static IPv4/IPv6 routing
Stackable Stackable
Status Indicators Status
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet

Expansion Slots

Field Details
Expansion Slots 1 (total) / 1 (free) x expansion slot
QSFP Slots 40 Gigabit QSFP+

Connectivity

Field Details
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x micro-USB (console), 1 x serial (console), 2 x 40GBase-X QSFP+ stacking, 2 x USB Type A, 24 x 100/1000/2.5G/5G RJ-45 UPOE (60W), 24 x 1000Base-T RJ-45 UPOE (90W)
Port Quantity 24
Port Type 100/1000/2.5G/5GBase-T (UPOE)
Ports Type (2nd) 10/100/1000 (UPOE)

Power

Field Details
Hot-Plug Hot-plug
Power Supplies Supported 2
Redundant Power Supply Optional

Software

Field Details
Software Type ExtremeWare XOS Advanced Edge

Technical Information

Field Details
Built-in Devices 8GB eMMC
Encryption 128-bit AES, 256-bit AES
Humidity Range Storage 10 – 95% (non-condensing)
Operating Temperature Range 32 – 113°F
Storage Temperature Range -40 – 158°F
Operating Humidity 10 – 95% (non-condensing)

Product Information

Field Details
Capacity IP multicast groups: 4000, Policy profiles: 63, User-created VLAN/VMANs: 4092
Device Type Internal power supply
Kit Bundle
Packaged Quantity 1
Performance Forwarding rate: 517.9 Mpps, Stacking bandwidth: 160 Gbps, Switching bandwidth: 696 Gbps
Ports (2nd) Quantity 24
Ports (3rd) Quantity 2
Rack Mounting Kit Included

Dimensions & Weight

Field Details
Height 1.7 inch
Height (Rack Units) 1
Weight 18.45 lbs
Width 17.3 inch
Depth 19.2 inch

Physical Characteristics

Field Details
Color Category Purple

Certifications & Listings

Field Details
Compliant Standards ACMA RCM, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1-14, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 11 class A, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 14336-1, Directive 2014/30/EU, EAC, EMC, EN 300 386 V1.6.1, EN 55011 class A, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 6100-3-2, EN 6100-3-3, EN 6100-4-2, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2 – Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 – Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 – Class 3.1e, EN/ETSI 300 753, EN55024, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 A, GB 4943.1-2011, GB/T9254-2008, ICES-003 Class A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1, KCC, LVD 2014/35/EU, NRCS, RoHS 2011/65/EU, RoHS CNS 15663, SABS, UL 60950-1, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
