AED105,799.00

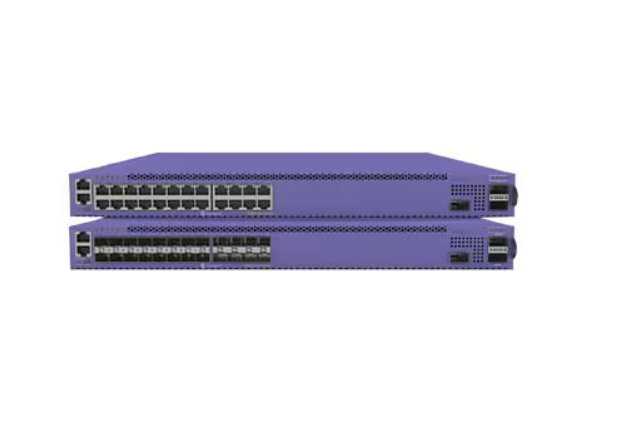

The Extreme X590-24T-1Q-2C is a purpose-built 24-port aggregation switch designed for high performance enterprise and aggregation applications. It supports a range of interface speeds, including 1 Gb, 10 Gb, 25 Gb and more, all in a compact 1RU form factor. This switch can also flexibly accommodate top rack and spine/leaf deployments. It supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing, including policy-based switching and routing.
| Category | Attribute | Details |
|---|
| Overview | Brand | Extreme Networks |
| Product Line | Extreme Networks ExtremeSwitching X590 |
| Model | X590 -24t-1q-2c |
| Edition | Base |
| Manufacturer | EXTREME NETWORKS |
| Processor | Clock Speed | 2.4 GHz |
| Processors Installed | 1 |
| Memory | Flash Memory Installed | 32 GB |
| Memory Technology | DDR3 SDRAM |
| RAM Installed | 4 GB |
| Network & Communication | Compliant Standards | IEEE 802.3, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bm |
| Features | 12MB packet buffer, 4 fan tray slots, Cut-through, Data Center Bridging Exchange (DCBX), ZTP, VXLAN support |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 272K entries |
| Manageable | Yes |
| Max Units In A Stack | 8 |
| Ports | 24 |
| Product Type | Switch |
| Stackable | Yes |
| Subcategory | Network hubs and switches |
| Switching Type | 10 Gigabit Ethernet |
| Expansion Slots | QSFP Slots | 100 Gigabit QSFP28 |
| Connectivity | Interface Provided | 1 x 40Gbit LAN QSFP+ stacking, 1 x console RJ-45, 1 x micro-USB output Type A storage, 2 x 100Gbit LAN QSFP28, 24 x 10GBase-T RJ-45 |
| Port Quantity | 24 |
| Port Type | 10/100/1000/10000 |
| Ports Type (2nd) | 40 Gigabit QSFP+ |
| Power | Power Supplies Installed | 0 |
| Power Supplies Supported | 2 |
| Technical Information | Humidity Range Storage | 10 – 95% (non-condensing) |
| Max Operating Temperature | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| MTBF | 435,074 Hours |
| Operating Humidity | 10 – 95% (non-condensing) |
| Operating System Required | ExtremeXOS Advanced Edge |
| Product Information | Capacity | ACL entries: 1000 (ingress), IP multicast entries: 130000, IPv4 rules: 512, LPM entries (IPv4): 256000 |
| Packaged Quantity | 1 |
| Performance | Switching capacity: 880 Gbps |
| Ports (2nd) Quantity | 1 |
| Ports (3rd) Quantity | 2 |
| Dimensions & Weight | Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Width | 17.4 inch |
| Depth | 19.2 inch |
| Physical Characteristics | Color Category | Purple |
| Certifications & Listings | Compliant Standards | ACMA RCM, AS/NZS 60950-1, CISPR 32 Class A, EN 55032 Class A, FCC Part 15 B, RoHS 2011/65/EU, UL 60950-1 |
| ENERGY STAR Certified | No |
