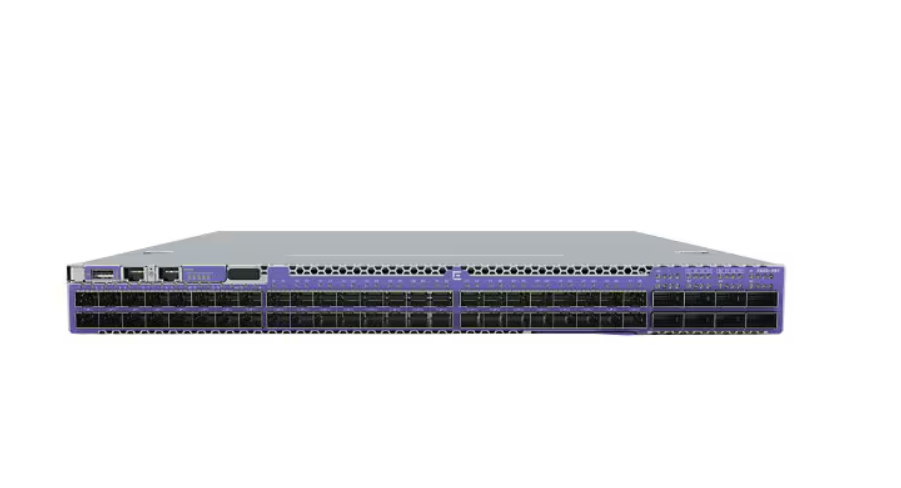

Extreme Networks ExtremeSwitching X695-48Y-8C – switch – 48 ports – managed – rack-mountable
Quick tech specs
- 48Y-8C
- L3
- 48 x 1/10/25 Gigabit SFP28 + 8 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 50 Gigabit / 100 Gigabit QSFP28
- Switch
- managed
- rack-mountable
AED160,499.00
Know your gear
The ExtremeSwitching X695 is a purpose-built port switch with uplinks designed for high-performance enterprise and aggregation applications. The X695 can support a range of interface speeds, all in a compact 1RU form factor. This enables the ExtremeSwitching X695 to be flexibly deployed in Enterprise LAN or top-of-rack applications.
| Category | Specification |
|---|
| Overview |
| Brand | Extreme Networks |
| Product Line | Extreme Networks ExtremeSwitching |
| Model | X695-48Y-8C |
| Manufacturer | EXTREME NETWORKS |
| Memory |
| Memory Technology | DDR4 SDRAM |
| RAM Installed | 16 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Features | Flexible universal forwarding tables (UFT), Hot swappable fan, Jumbo Frames support |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 290K entries |
| Manageable | Yes |
| Ports | 48 |
| Product Type | Switch |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | 25 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x console RJ-45, 1 x management (Gigabit LAN) RJ-45, 1 x USB Type A, 48 x 1/10/25Gbit LAN SFP28, 8 x 10/25/40/50/100Gbit LAN QSFP28 uplink |
| Port Quantity | 48 |
| Port Type | 1/10/25 Gigabit SFP28 |
| Ports Type (2nd) | 10 Gigabit / 25 Gigabit / 40 Gigabit / 50 Gigabit / 100 Gigabit QSFP28 |
| Power |
| Hot-Plug | Hot-plug |
| Power Consumption Operational | 469 watt |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Optional |
| Software |
| Software Type | ExtremeWare XOS Advanced Edge |
| Technical Information |
| Built-in Devices | 128 GB SSD |
| Humidity Range Storage | 10 – 95% (non-condensing) |
| Max Operating Temperature | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Operating Humidity | 5 – 95% (non-condensing) |
| Product Information |
| Capacity | Authenticated policy users: 12288, Egress rules: 1000, Ingress rules: 8000, IP multicast entries: 136000, IP multicast groups: 8000, IPv4 hosts: 128000, IPv4 rules: 512, IPv6 hosts: 56000, IPv6 rules: 512, L2 rules: 440, Longest prefix match (LPM) entries (IPv4): 180000, Longest prefix match (LPM) entries (IPv6): 64000, MAC rules: 512, Permit/deny rules: 1976, Policy profiles: 63, Queues per port: 8, User-created VLAN/VMANs: 4092 |
| Device Type | Internal power supply (not installed) |
| Packaged Quantity | 1 |
| Performance | Forwarding performance: 971 Mpps, Line rate: 4 Tbps, Switching capacity: 2 Tbps |
| Ports (2nd) Quantity | 8 |
| Included Items |
| Included Accessories | Rack mount kit |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 16.36 lbs |
| Width | 17.3 inch |
| Depth | 20.9 inch |
| Physical Characteristics |
| Color Category | Purple |
