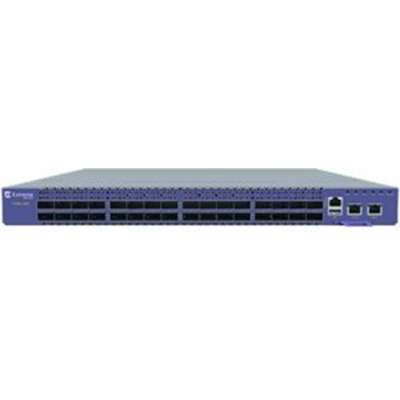

The Extreme 7720 are purpose-built switches designed for high-performance aggregation and core applications. As a universal hardware platform, the 7720 provides end-to-end secure network segmentation, in addition to advanced policy capabilities, with a user-selectable choice of Extreme’s flagship switch operating systems. This makes the 7720 a uniquely flexible platform that can be deployed in a variety of aggregation and core environments. The Extreme 7720 network hardware platform enables organizations to design networks that accommodate a variety of applications and east-west traffic patterns. With its high-density scale-out architecture, leading power efficiency, and airflow options, the 7720 platform delivers a cost-effective solution that optimizes power, cooling, and equipment room space, wherever your network operating center might be
Category | Specification |
---|---|
General Information | |
Product Name | 7720-32C Back Front Air Flow 32X40/100G |
Manufacturer Part Number | 7720-32C-AC-R |
Product Model | 7720-32C |
Product Type | Ethernet Switch |
Interfaces/Ports | |
Total Number of Network Ports | 2 |
Network (RJ-45) | Yes |
Uplink Port | Yes |
Modular | Yes |
Stack Port | Yes |
Port / Expansion Slot Details | 32 x 100 Gigabit Ethernet Expansion Slot 2 x 100 Gigabit Ethernet Network |
I/O Expansions | |
Total Number of Expansion Slots | 32.0 |
Expansion Slot Type | QSFP28 |
Media & Performance | |
Media Type Supported | Optical Fiber, Twisted Pair |
Ethernet Technology | 100 Gigabit Ethernet, Gigabit Ethernet |
Network Technology | 100GBase-X, 10/100/1000Base-T |
Network & Communication | |
Layer Supported | 3 |
Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3by, IEEE 802.3ba, IEEE 802.3bm |
Power Description | |
Power Source | Power Supply |
Power Consumption | 405 W |
Management & Protocols | |
Manageable | Yes |
Physical Characteristics | |
Form Factor | Rack-mountable |
Height | 1.7″ |
Width | 17.3″ |
Depth | 22.4″ |
