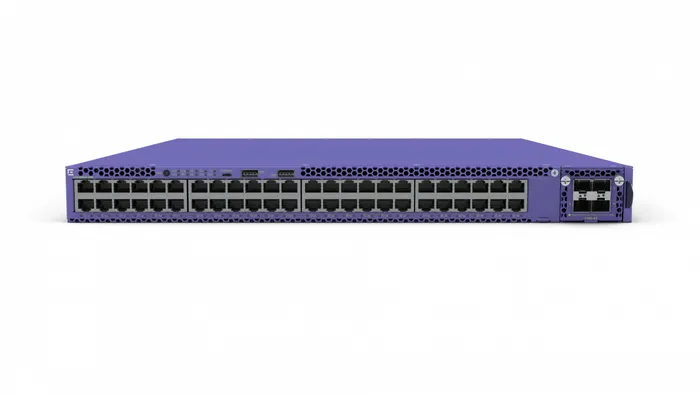

Extreme networks VSP4900-48P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Violet


VSP4900-48P-B1-2Y, 48 x 10/100/1000Mbps, 1 x RJ45, 2 x USB-A, 1 x USB micro-B, 1 x VIM5

67,799.00 د.إ

Simplify Your Network with an Extreme Fabric Connect Edge Device Designed to extend the reach of Extreme Fabric Connect technology to the branch and network edge, the Virtual Services Platform (VSP) 4900-48P delivers fully featured network virtualization capabilities in a cost-effective Ethernet platform. Optimized for small sites, the VSP 4900-48P offers full multi-service capabilities in a compact form factor and provides a simplified, streamlined way to build and manage networks. A New Way of Building Networks The VSP 4900 is ideal for small sites where there’s a need to extend Extreme Fabric Connect technology across the wide area, the metro, or to the campus edge. In these scenarios, the VSP 4900 can help segment traffic for regulatory or security reasons or to support multiple entities or tenants. For these types of deployments, the VSP 4900 delivers a rich set of multi-service/multi-tenant functionality – all in cost-effective hardware platform. Gain a Competitive Edge The VSP 4900 can be deployed in conjunction with other Extreme Fabric Connect platforms or switches to simplify the network, streamline operations, lower costs and help businesses gain a competitive edge.

SKU: VSP4900-48P-B1-2Y Categories: , Tag:
Feature Description
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Yes
Web-based management Yes
Traffic shaping Yes
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Networking standards IEEE 802.3ae, IEEE 802.3at
10G support No
Port mirroring Yes
Full duplex Yes
IP routing Yes
Policy-based routing Yes
Routing entries 15488
Flow control support Yes
Link aggregation Yes
Rate limiting Yes
Ethernet LAN data rates 10, 100, 800, 1000 Mbit/s
VLAN support Yes
Number of VLANs 4059
MAC address table 80000 entries
Switching capacity 176 Gbit/s
Throughput 71.4 Mpps
Latency (1 Gbps) 4 µs
Number of trunks 8
Number of queues 128
Jumbo frames support Yes
IGMP entries 4059
Multicast support Yes
IPv4 multicast entries 2000
IPv6 multicast entries 256
MLD entries 4059
Product colour Violet
Number of fans 3 fan(s)
Built-in processor Yes
Memory type DRAM
Internal memory 2048 MB
Flash memory 8192 MB
Harmonized System (HS) code 85176990
Power supply included Yes
Redundant power supply (RPS) support Yes
AC input voltage 100 – 240 V
AC input frequency 47/63 Hz
Power consumption (max) 1746 W
Power over Ethernet (PoE) Yes
Operating temperature (T-T) 0 – 45 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 10 – 95%
Storage relative humidity (H-H) 10 – 95%
Operating altitude 0 – 3000 m
Heat dissipation 1046 BTU/h
Width 488 mm
Depth 43.6 mm
Height 440 mm
Weight 8.39 kg
Quick start guide Yes
Manual Yes
