X460-G2 series ā the scalable advanced aggregation and edge switch with the revolutionary ExtremeXOS modular operating system. The X460-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability, and operational efficiency. Each switch offers the same high-performance, non-blocking hardware technology, in the Extreme Networks tradition of simplifying network deployments through the use of common hardware and software throughout the network. The X460-G2 switches are effective campus-edge switches with IEEE 802.3at PoE-plus and can also serve as aggregation switches for traditional enterprise networks. The X460-G2 series is also an option for DSLAM or CMTS aggregation, or for active Ethernet access. The X460-G2 can also be used as a top-of-rack switch for many data center environments with features such as high-density Gigabit Ethernet for concentrated data center environments; XNV⢠(ExtremeXOS Network Virtualization) for centralized network-based Virtual Machine (VM) inventory, VM location history, and VM provisioning; Direct Attach⢠to offload VM switching from servers, thereby improving performance; high-capacity Layer 2/Layer 3 scalability for highly virtualized data centers; and intra-rack and cross-rack stacking with industry-leading flexibility.
Network Accessories, Networking

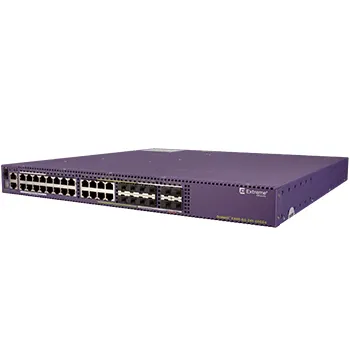

Extreme networks X460-G2-24P-10GE4-FB-715-TAA Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Purple
TAA 24 10/100/1000BASE-T POE+, 4 10GBASE-X unpopulated SFP+, Rear VIM Slot (unpopād), Rear Timing Slot (unpopād), 2 power supply slots populated with 715W PS, fan module Front-to-Back, ExtremeXOS Advanced Edge license with Policy
AED59,899.00
Feature | Description |
---|---|
Switch type | Managed |
Switch layer | L2/L3 |
Quality of Service (QoS) support | Y |
Web-based management | Y |
Basic switching RJ-45 Ethernet ports quantity | 20 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (copper) ports quantity | 1 |
Combo SFP ports quantity | 4 |
Fiber ports quantity | 8 |
Fiber optic connector | SFP, SFP+ |
Console port | RJ-12 |
USB 2.0 ports quantity | 1 |
Networking standards | IEEE 1588, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3z |
10G support | Y |
Full duplex | Y |
Rate limiting | Y |
VLAN support | Y |
Number of VLANs | 4092 |
Switching capacity | 296 Gbit/s |
Throughput | 220.2 Mpps |
Number of trunks | 128 |
Jumbo frames support | Y |
Packet buffer memory | 4 MB |
Access Control List (ACL) | Y |
DoS attack prevention | Y |
Rack mounting | Y |
Stackable | Y |
Form factor | 1U |
Product colour | Purple |
LED indicators | Y |
Built-in processor | Y |
Processor frequency | 1000 MHz |
Memory type | DDR3-SDRAM |
Internal memory | 1024 MB |
Flash memory | 4000 MB |
AC input voltage | 85 – 264 V |
AC input frequency | 47/63 Hz |
Power consumption (typical) | 76 W |
Power consumption (max) | 223 W |
Power over Ethernet (PoE) | Y |
Power over Ethernet plus (PoE+) ports quantity | 24 |
Operating temperature (T-T) | 0 – 50 °C |
Storage temperature (T-T) | -40 – 70 °C |
Operating relative humidity (H-H) | 10 – 95% |
Storage relative humidity (H-H) | 10 – 95% |
Operating altitude | 0 – 3000 m |
Width | 441 mm |
Depth | 488 mm |
Height | 44 mm |
Weight | 6.62 kg |
