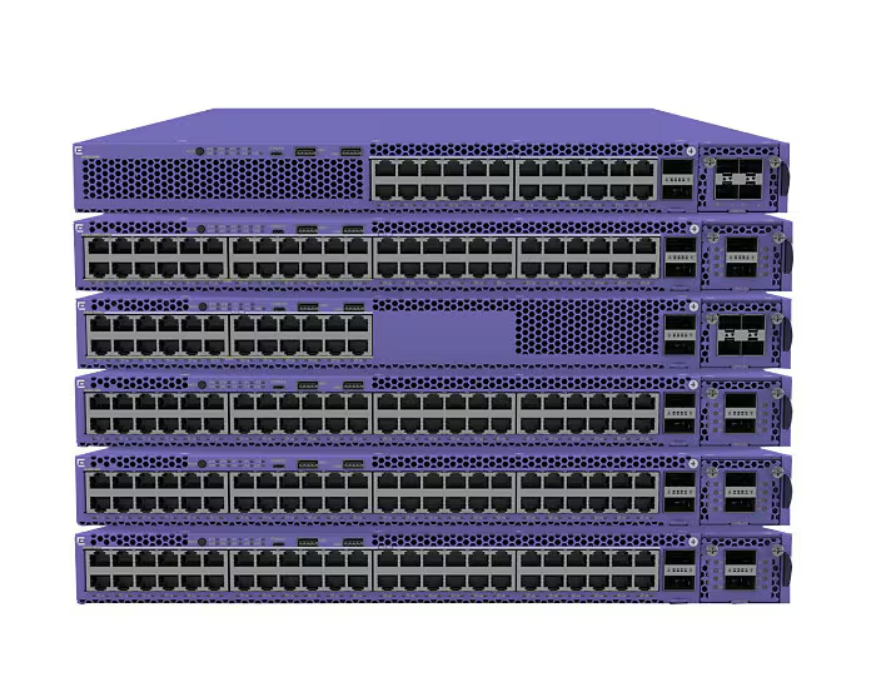

Extreme Networks X465 48-Port Managed Switch

Add to Wishlist

Quick tech specs

  • 48 x 10/100/1000Base-T 802.3at 30W Ports
  • 1 x Serial Console Port
  • 1 x USB Micro-B Console Port
  • 1 x VIM5 Slot
  • 2 x 40GBase-X QSFP+ Dedicated Stacking Ports
  • 1 x 10/100/1000Base-T Out-of-band Management Port
  • 2 x USB A Ports for External USB Flash

11,299.00 د.إ

Add to Wishlist

Know your gear

The Extreme Networks X465 48-Port Managed Switch provides high-performance, convergence-ready, resilient and secure gigabit and multi-gigabit Ethernet connectivity. Powered by the ExtremeXOS operating system, it offers sophisticated routing and switching, high-speed stacking, modular uplink options, cutting-edge PoE and comprehensive security. This switch supports Extreme’s Integrated Application Hosting, which leverages the switch’s hardware and software design to run onboard applications without impacting switch performance. Itā€™s an ideal choice for high-end wiring closets and network edge deployments.

SKU: X465-48P Category: Tag:
Category Details
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching X465 Series
Model X465-48P
Manufacturer EXTREME NETWORKS
Processor
Processors Installed 1
Memory
RAM Installed 2 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3bz
Features 2 fans, Flexible universal forwarding tables (UFT), Half duplex mode, Insight Architecture ready, MACsec support, Priority-Based Flow Control (PFC), Routing, Virtual Private LAN Service (VPLS), VXLAN tunnel endpoints (VTEP) support
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 272K entries
Manageable Yes
Max Units In A Stack 8
PoE Budget 845 watt
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI
Routing Protocol BGP, MPLS, OSPF, PIM-SM, RIP, Static IPv4 routing, Static IPv6 routing
Stackable Stackable
Status Indicators Status
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
Expansion Slots 1 (total) / 1 (free) x expansion slot
Connectivity
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x console (micro-USB) Type B, 1 x serial (console) RJ-45 management, 2 x 40GBase-X QSFP+ stacking, 2 x USB Type A, 48 x 1000Base-T RJ-45 PoE+ – 30 W
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 40 Gigabit QSFP+ (uplink)
Power
Hot-Plug Hot-plug
Power Supplies Supported 2
Redundant Power Supply Optional
Software
Software Type ExtremeWare XOS Advanced Edge
Technical Information
Built-in Devices 8GB eMMC
Encryption 128-bit AES, 256-bit AES
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 10 – 95% (non-condensing)
Product Information
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate switching bandwidth: 364 Gbps, Stacking bandwidth: 270.8 Mpps
Ports (2nd) Quantity 2
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 18.5 lbs
Width 17.3 inch
Depth 19.2 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards ACMA RCM, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1-14, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 11 class A, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 14336-1, Directive 2014/30/EU, EAC, EMC, EN 300 386 V1.6.1, EN 55011 class A, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 6100-3-2, EN 6100-3-3, EN 6100-4-2, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2 – Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 – Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 – Class 3.1e, EN/ETSI 300 753, EN55024, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 A, GB 4943.1-2011, GB/T9254-2008, ICES-003 Class A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1, KCC, LVD 2014/35/EU, NRCS, RoHS 2011/65/EU, RoHS CNS 15663, SABS, UL 60950-1, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
