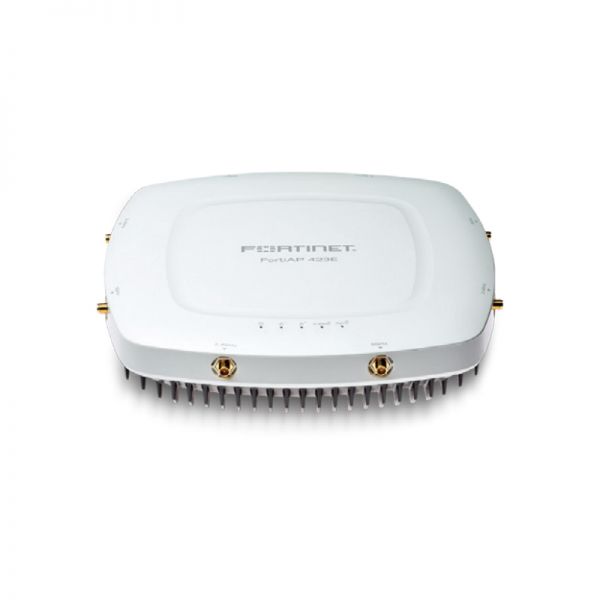

FAP-423E – Fortinet FortiAP Access Points

Add to Wishlist

3,199.00 د.إ

Add to Wishlist

FAP-423E Overview

FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or can be managed through the free FortiCloud provisioning and management portal.

Quick Specs

Table 1 shows the Quick Specs.

Product Code FAP-423E
Length x Width x Height 8.5 x 8.5 x 2.2 inches (215 x 215 x 56 mm)
Hardware Type Indoor AP
Number of Radios 2
Number of Antennas 8 External (RP-SMA)
Antenna Type and Peak Gain Dipole: 3 dBi for 2.4 GHz,3 dBi for 5 GHz
Frequency Bands (GHz) 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities 2.4 GHz b/g/n (4×4:4 stream) 20/40 MHz (256 QAM)
Radio 2 Capabilities 5 GHz a/n/ac (4×4:4 stream) 20/40/80 MHz (256 QAM)
Maximum Data Rate Radio 1: up to 800 Mbps

Radio 2: up to 1,733 Mbps

Product Details

Fortinet FortiAP Series provides these features:

• Unified Management

Unified management console simplifies operations, ensuring consistent and effective policy enforcement and compliance.

• Advanced Security Protection

Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filtering protect the wireless LAN from the latest security threats.

• Built-in Wi-Fi Security

Protects the network from advanced wireless threats and satisfies PCI DSS compliance.

FortiAP 423E provides these highlights:

– 802.11ac Wave 2

– Dual Radio 2.4 and 5 GHz

– 8 Internal/External Antennas

– 4×4 MU-MIMO

– Up to 800 + 1,733 Mbps

Compare to Similar Items

Table 2 shows the comparison.

Product Code FAP-423E FAP-421E
Length x Width x Height 8.5 x 8.5 x 2.2 inches (215 x 215 x 56 mm) 8.5 x 8.5 x 2.2 inches (215 x 215 x 56 mm)
Hardware Type Indoor AP Indoor AP
Number of Radios 2 2
Number of Antennas 8 External (RP-SMA) 8 Internal
Antenna Type and Peak Gain Dipole: 3 dBi for 2.4 GHz,3 dBi for 5 GHz PIFA: 4 dBi for 2.4 GHz,

5 dBi for 5 GHz
Radio 1 Capabilities 2.4 GHz b/g/n (4×4:4 stream) 20/40 MHz (256 QAM) 2.4 GHz b/g/n (4×4:4 stream) 20/40 MHz (256 QAM)
Radio 2 Capabilities 5 GHz a/n/ac (4×4:4 stream) 20/40/80 MHz (256 QAM) 5 GHz a/n/ac (4×4:4 stream) 20/40/80 MHz (256 QAM)
Maximum Data Rate Radio 1: up to 800 Mbps

Radio 2: up to 1,733 Mbps

 Radio 1: up to 800 Mbps

Radio 2: up to 1,733 Mbps
Bluetooth Low Energy (BT/BLE) Radio \ \
Category:

FAP-423E Specification

FAP-423E Specification

Hardware
Hardware Type Indoor AP
Number of Radios 2
Number of Antennas 8 External (RP-SMA)
Antenna Type and Peak Gain Dipole: 3 dBi for 2.4 GHz,3 dBi for 5 GHz
Frequency Bands (GHz)* 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities 2.4 GHz b/g/n (4×4:4 stream) 20/40 MHz (256 QAM)
Radio 2 Capabilities 5 GHz a/n/ac (4×4:4 stream) 20/40/80 MHz (256 QAM)
Maximum Data Rate Radio 1: up to 800 Mbps

Radio 2: up to 1,733 Mbps
Bluetooth Low Energy (BT/BLE) Radio \
Interfaces 2x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE) Dual redundant PoE power ports with support for IEEE 802.3at (2×2 operation with 802.3af)
Simultaneous SSIDs Up to 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA™ and WPA2™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power 2.4 GHz: 24 dBm / 251 mW (4 chains combined)*

5 GHz: 25 dBm / 316 mW (4 chains combined)*
Kensington Lock Yes
IEEE Standards 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az
SSID Types Supported Local-Bridge, Tunnel, Mesh
Per Radio Client Capacity Up to 512
Cellular Co-existence No
LED Off Mode Yes

Advanced 802.11 Features
802.11ac MU-MIMO Wave 2 Yes
Transmit Beam Forming (TxBF) Yes
Low-Density Parity Check (LDPC) Encoding Yes
Maximum Likelihood Demodulation (MLD) Yes
Maximum Ratio Combining (MRC) Yes
A-MPDU and A-MSDU Packet Aggregation Yes
MIMO Power Save Yes
Short Guard Interval Yes

Wireless Monitoring Capabilities
Rogue Scan Radio Modes Background, Full-time
WIPS / WIDS Radio Modes Background, Full-time
Packet Sniffer Mode Yes
Spectrum Analyzer Yes

Dimensions
Length x Width x Height 8.5 x 8.5 x 2.2 inches (215 x 215 x 56 mm)
Mounting Options Ceiling, T-Rail, and Wall
Included Accessories Mount kits for Ceiling, T-Rail, and Wall

Environment
Power Supply SP-FAP400-PA-XX, GPI-115, or GPI-130
Power Consumption (Max.) 23 W max power draw in 802.3at mode and 12.95 W max power draw when in 802.3af power mode (operates in 2×2 mode)
Humidity 5–90% non-condensing
Operating / Storage Temperature -4–122°F (-20–50°C) / -40–158°F (-40–70°C)
Directives   Low Voltage Directive • RoHS
UL2043 Plenum Material Yes
Mean Time Between Failures >30 Years
IP Rating \
Surge Protection Built In \
Hit-less PoE Failover Yes

Certifications
Wi-Fi Alliance Certified Yes
DFS FCC, IC, CE, Japan, Taiwan, Korea

Warranty
Limited Lifetime Warranty Yes
*Frequency selection and power may be restricted to abide by regional regulatory compliance laws.
