FG-100EF – Fortinet NGFW Middle-range Series FortiGate 100EF

Add to Wishlist

AED12,499.00

Add to Wishlist
Model: FG-100EF – Fortinet NGFW Middle-range Series FortiGate 100EF
Detail:
Fortinet FG-100EF 14 x GE RJ45 ports (including 2x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 8 x internal switch



FG-100EF Overview

FG-100EF is the Fortinet NGFW Middle-range Series FortiGate 100EF firewall. The FortiGate 100E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch.

Quick Spec

Table 1 shows the quick spec.

Sku FG-100EF
Firewall 7.4 Gbps
IPS 500 Mbps
NGFW 360 Mbps
Threat Protection 250 Mbps
Interfaces 2x GE RJ45 MGMT/DMZ Ports

2x GE RJ45 WAN Ports

2x GE RJ45 HA Ports

8x GE RJ45 Ports

8x GE SFP Slots

Product Details

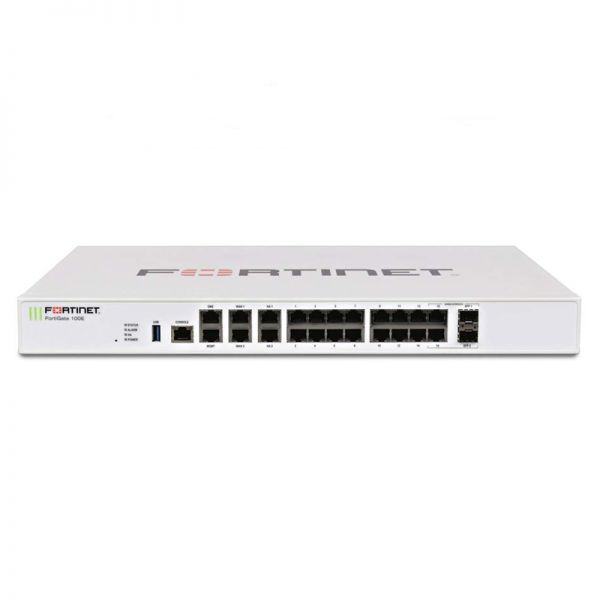

Figure 1 shows the front view of FG-100EF.

Fortigate FG-100EF Front View

Note:

ā‘  USB Port
ā‘” Console Port
ā‘¢ 2x GE RJ45 MGMT/DMZ Ports
ā‘£ 2x GE RJ45 WAN Ports
ā‘¤ 2x GE RJ45 HA Ports
ā‘„ 8x GE RJ45 Ports
ā‘¦ 8x GE SFP Slots

The Optional Accessories & Spares

Table 2 shows the optional accessories or spares of FG-100EF.

Optional Accessories & Spares SKU Description
1 GE SFP LX Transceiver Module FG-TRAN-LX 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots
1 GE SFP RJ45 Transceiver Module FG-TRAN-GC 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots
1 GE SFP SX Transceiver Module FG-TRAN-SX 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
External redundant AC power supply FRPS-100 External redundant AC power supply for up to 4 units: FG-100/101E, FG-300C, FG-310B, FS-348B and FS-448B. Up to 2 units: FG-200B, FG-200D, FG-200/201E, FG-240D and FG-300D, FG-400D, FG-500D, FG-600D, FHV-500D, FDD-200B, FDD-400B, FDD-600B and FDD-800B.

Compare to Similar Item

Table 3 shows the comparison of FG-100E and FG-100EF.

Sku FG-100E FG-100EF
Firewall 7.4 Gbps 7.4 Gbps
IPS 500 Mbps 500 Mbps
NGFW 360 Mbps 360 Mbps
Threat Protection 250 Mbps 250 Mbps
Interfaces 20 x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 14x switch ports),

2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots) 480 GB onboard storage. Maximum managed FortiAPs (Total / Tunnel) 64 / 32

 14x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 8x internal switch ports),

8x SFP ports. Maximum managed FortiAPs (Total / Tunnel) 64 / 32

SKU: FG-100EF Category: Tag:





FG-100EF Specification

FG-100EF Specification
Type FORTIGATE 100EF

Interfaces and Modules
GE RJ45 Ports 8
GE RJ45 Management/HA/DMZ Ports 1 / 2 / 1
GE SFP Slots ā€”
GE RJ45 PoE/+ Ports ā€”
GE RJ45 WAN Ports 2
GE RJ45 or SFP Shared Ports 2
USB Port 1
Console Port 1
Internal Storage ā€”
Included Transceivers 0

System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP) 7.4 / 7.4 / 4.4 Gbps
Firewall Latency (64 byte, UDP) 3 Ī¼s
Firewall Throughput (Packet per Second) 6.6 Mpps
Concurrent Sessions (TCP) 2 Million
New Sessions/Second (TCP) 30,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte) 4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
Client-to-Gateway IPsec VPN Tunnels 10,000
SSL-VPN Throughput 250 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 500
SSL Inspection Throughput (IPS, avg. HTTPS)Ā  130 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 130
Application Control Throughput (HTTP 64K) 1 Gbps
CAPWAP Throughput (1444 byte, UDP) 1.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 24
Maximum Number of FortiAPs (Total / Tunnel) 64 / 32
Maximum Number of FortiTokens 5,000
Maximum Number of Registered FortiClients 600
High Availability Configurations Active / Active, Active / Passive, Clustering

System Performance ā€” Enterprise Traffic Mix
IPS Throughput 500 Mbps
NGFW Throughput 360 Mbps
Threat Protection Throughput 250 Mbps

Dimensions and Power
Height x Width x Length 1.75 x 17 x 10 inches

44.45 x 432 x 254 mm
Form Factor Rack Mount, 1 RU
AC Power Supply 100ā€“240V AC, 60ā€“50 Hz
Power Consumption (Average / Maximum) 24.4 W / 26.9 W
Heat Dissipation 91.8 BTU/h

Operating Environment and Certifications
Operating Temperature 32ā€“104Ā°F (0ā€“40Ā°C)
Storage Temperature -31ā€“158Ā°F (-35ā€“70Ā°C)
Humidity 10ā€“90% non-condensing
Noise Level 40.4 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
