Firewalls

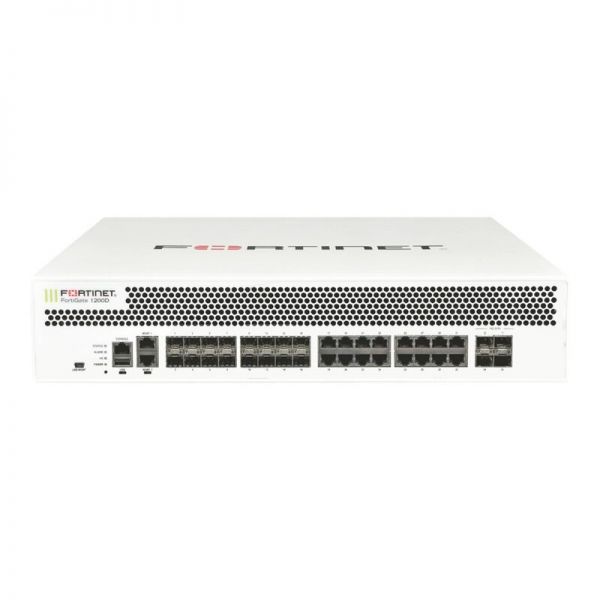

FG-1200D – Fortinet NGFW High-end Series FortiGate 1200D
|
Fortinet FG-1200D 4 x 10GE SFP+ slots, 16 x GE SFP slots, 18 x GE RJ45 ports (including 16 ports, 2 x management/HA ports), SPU NP6 and CP8 hardware accelerated, 240GB SSD onboard storage, dual AC power supplies
|
AED169,499.00
FG-1200D Overview
FG-1200D is the Fortinet NGFW High-end Series FortiGate 1200D firewall. The FortiGate 1200D delivers high performance threat protection and SSL inspection for large enterprises and service providers, with the flexibility to be deployed at the enterprise/cloud edge, in the data center core or internal segments.
Quick Spec
Table 1 shows the quick spec.
| SKU | FG-1200D |
| Firewall | 72 Gbps |
| IPS | 6.8 Gbps |
| NGFW | 6 Gbps |
| Threat Protection | 4 Gbps |
| Interfaces | 4x 10 GE SFP+ slots
16x GE SFP slots 18x GE RJ45 ports (including 16 ports, 2x management/HA ports) |
Product Details
Note:
| ā | Console Port |
| ā” | USB Management Port |
| ā¢ | USB Port |
| ā£ | 2x GE RJ45 Management Ports |
| ā¤ | 16x GE SFP Slots |
| ā„ | 16x GE RJ45 Ports |
| ā¦ | 4x 10 GE SFP+ / GE SFP Slots |
FG-1200D Specification
FG-1200D Specification |
|
| Type | FORTIGATE 1200D |
|
Interfaces and Modules |
|
| Hardware Accelerated 10 GE SFP+ /
GE SFP Slots |
4 |
| Hardware Accelerated GE SFP Slots | 16 |
| Hardware Accelerated GE RJ45 Ports | 16 |
| GE RJ45 Management / HA Ports | 2 |
| USB Ports (Client/Server) | 1 / 1 |
| Console Port | 1 |
| Onboard Storage | 1x 240 GB SSD |
| Included Transceivers | 0 |
|
System Performance and Capacity |
|
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 72 / 72 / 52 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 72 / 72 / 52 Gbps |
| Firewall Latency (64 byte, UDP) | 3 Ī¼s |
| Firewall Throughput (Packet per Second) | 78 Mpps |
| Concurrent Sessions (TCP) | 11 Mil |
| New Sessions/Second (TCP) | 290,000 |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte) | 48 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| SSL-VPN Throughput | 3.6 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS)Ā | 5.0 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 2,700 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 800,000 |
| Application Control Throughput (HTTP 64K) | 15 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 250 |
| Maximum Number of FortiSwitches Supported | 128 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 1,024 |
| Maximum Number of FortiTokens | 20,000 |
| Maximum Number of Registered FortiClients | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
|
System Performance ā Enterprise Traffic Mix |
|
| IPS Throughput | 6.8 Gbps |
| NGFW Throughput | 6 Gbps |
| Threat Protection Throughput | 4 Gbps |
|
Dimensions and Power |
|
| Height x Width x Length | 3.5 x 17.24 x 21.81 inches
89 x 438 x 554 mm |
| Form Factor | Rack Mount, 2 RU |
| AC Power Supply | 100ā240V AC, 50ā60 Hz |
| Power Consumption (Average / Maximum) | 270 W / 332 W |
| Heat Dissipation | 1132 BTU/h |
| Redundant Power Supplies | Yes, Hot swappable |
|
Operating Environment and Certifications |
|
| Operating Temperature | 32ā104Ā°F (0ā40Ā°C) |
| Storage Temperature | -31ā158Ā°F (-35ā70Ā°C) |
| Humidity | 10ā90% non-condensing |
| Noise Level | 59 dBA |
| Operating Altitude | Up to 9,843 ft (3,000 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
