FG-2000E – Fortinet Next general Firewalls -High end-2000E Series

Add to Wishlist

AED233,299.00

Add to Wishlist
Model: FG-2000E – Fortinet Next general Firewalls -High end-2000E Series
Detail:
Fortinet FortiGate 2000E FG-2000E, 6x 10 GE SFP+ slots, 34x GE RJ45 ports (including 32x ports, 2x management/HA ports), SPU

FG-2000E Overview

The FortiGate 2000E series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and high-throughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments. Leverage industry-leading IPS, SSL inspection, and advanced threat protection to optimize your networkā€™s performance. Fortinetā€™s Security-Driven Networking approach provides tight integration of the network to the new generation of Security.

Quick Spec

Table 1 shows the quick spec.

Product Code FG-2000E
Hardware Accelerated 10 GE SFP+ Slots 6
Hardware Accelerated GE RJ45 Ports 32
GE RJ45 Management / HA Ports 2
USB Ports 1
Console Port 1
Onboard Storage 1x 480 GB SSD
Included Transceivers 2x SFP+ (SR 10GE)
IPS Throughput 11.5 Gbps
NGFW Throughput 9 Gbps
Threat Protection Throughput 5.4 Gbps
Height x Width x Length (inches) 3.5 x 17.4 x 21.9
Height x Width x Length (mm) 89 x 442 x 555
Form Factor (supports EIA/non-EIA standards) Rack Mount, 2 RU
AC Power Supply 100ā€“240V AC, 50ā€“60 Hz
Maximum Current 9A

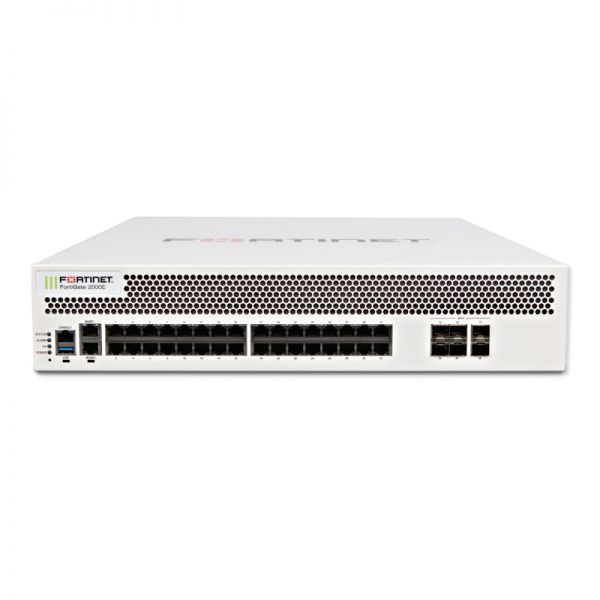

Product Details

Note:

ā‘  Console Port
ā‘” USB Port
ā‘¢ 2x GE RJ45 Management Ports
ā‘£ 32x GE RJ45 Ports
ā‘¤ Ā 6x 10 GE SFP+ Slots
SKU: FG-2000E Category: Tag:

FG-2000E Specification

FG-2000E Specification
Hardware Specifications
Hardware Accelerated 10 GE SFP+ Slots 6
Hardware Accelerated GE RJ45 Ports 32
GE RJ45 Management / HA Ports 2
USB Ports 1
Console Port 1
Onboard Storage 1x 480 GB SSD
Included Transceivers 2x SFP+ (SR 10GE)
System PerformanceĀ ā€”Ā Enterprise Traffic Mix
IPS ThroughputĀ 2Ā  11.5 Gbps
NGFW ThroughputĀ 2, 4Ā  9 Gbps
Threat Protection ThroughputĀ 2, 5Ā  5.4 Gbps
System Performance
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 90 / 90 / 60 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) 90 / 90 / 60 Gbps
Firewall Latency (64 byte, UDP) 2Ā Ī¼s
Firewall Throughput (Packet per Second) 90 Mpps
Concurrent Sessions (TCP) 20 Million
New Sessions/Second (TCP) 500,000
Firewall Policies 100,000
IPsec VPN Throughput (512 byte)Ā 1Ā  65 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 20,000
Client-to-Gateway IPsec VPN Tunnels 100,000
SSL-VPN Throughput 6 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 30,000
SSL Inspection Throughput (IPS, avg. HTTPS)Ā 3 9.4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)Ā 3Ā  5,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)Ā 3 2 Million
Application Control Throughput (HTTP 64K)Ā 2 20 Gbps
CAPWAP Throughput (1444 byte, UDP) 21 Gbps
Ā Virtual Domains (Default / Maximum) 10 / 500
Maximum Number of FortiSwitches Supported 196
Maximum Number of FortiAPs (Total / Tunnel) 4,096 / 2,048
Maximum Number of FortiTokens 20,000
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 3.5 x 17.4 x 21.9
Height x Width x Length (mm) 89 x 442 x 555
Weight 37.0 lbs (16.8 kg)
Form Factor (supports EIA/non-EIA standards) Rack Mount, 2 RU
AC Power Supply 100ā€“240V AC, 50ā€“60 Hz
Maximum Current 9A
Power Consumption (Average / Maximum) 280 / 430 W
Heat Dissipation 1,467 BTU/h
Redundant Power Supplies Yes, Hot swappable
Operating Environment and Certifications
Operating Temperature 32ā€“104Ā°F (0ā€“40Ā°C)
Storage Temperature -31ā€“158Ā°F (-35ā€“70Ā°C)
Humidity 10ā€“90% non-condensing
Noise Level 58 dBA
Forced Airflow \
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
