Firewalls
FG-201E-BDL – FortiGate 201E Firewall with Bundle
|
FG-201E Hardware plus 1 year 8×5 FortiCare and FortiGuard Unified (UTP) Protection
|
AED44,599.00
FG-201E-BDL Overview
The FortiGate 200E series delivers next generation firewall capabilities for mid-sized to large enterprises,with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats withĀ security processor powered high performance, security efficacy and deep visibility.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | FG-201E-BDL |
| Firewall | 20 Gbps |
| IPS | 2.2 Gbps |
| NGFW | 1.8 Gbps |
| Threat Protection | 1.2 Gbps |
| Interfaces | 2x GE RJ45 Management/HA Ports
2x GE RJ45 WAN Ports 14x GE RJ45 Ports 4x GE SFP Slots |
Product Details

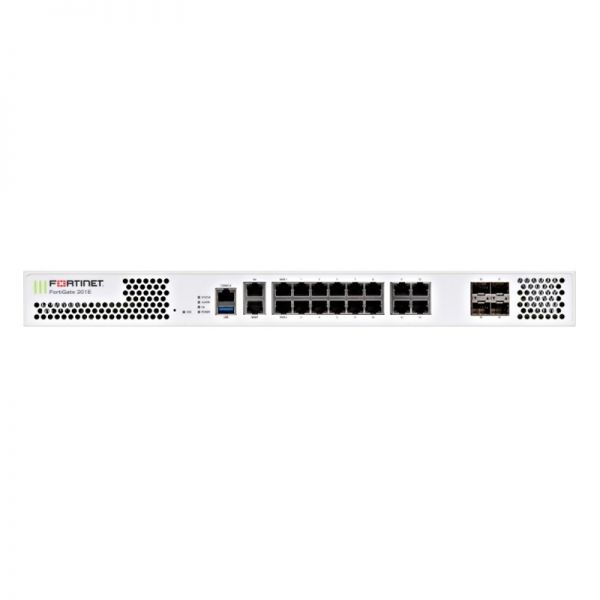

Figure 1 shows the front view of FG-200E. FG-201E-BDLĀ is similar with it.
Note:
| ā | Console Port |
| ā” | USB Port |
| ā¢ | 2x GE RJ45 Management/HA Ports |
| ā£ | 2x GE RJ45 WAN Ports |
| ā¤ | 10x GE RJ45 Ports |
| ā„ | 4x GE RJ45 Ports |
| ā¦ | 4x GE SFP Slots |
FG-201E-BDL Specification
FG-201E-BDL Specification |
|
|
Interfaces and Modules |
|
| GE SFP Slots | 4 |
| GE RJ45 Interfaces | 14 |
| GE RJ45 WAN Interfaces | 2 |
| GE RJ45 Management/HA Ports | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Local Storage | 1x 480 GB SSD |
| Included Transceivers | 0 |
|
System Performance and Capacity |
|
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 20 / 20 / 9 Gbps |
| Firewall Latency (64 byte, UDP) | 3Ā Ī¼s |
| Firewall Throughput (Packet per Second) | 13.5 Mpps |
| Concurrent Sessions (TCP) | 2 Million |
| New Sessions/Second (TCP) | 135,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 7.2 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 10,000 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5,00 |
| SSL Inspection Throughput (IPS, avg. HTTPS)Ā | 820 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1,000 |
| Application Control Throughput (HTTP 64K) | 3.5 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 1.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel) | 128 / 64 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
|
System PerformanceĀ āĀ Enterprise Traffic Mix |
|
| IPS Throughput | 2.2 Gbps |
| NGFW Throughput | 1.8 Gbps |
| Threat Protection Throughput | 1.2 Gbps |
|
Dimensions andĀ Environment |
|
| Height x Width x Length | 1.75 x 17.0 x 11.9 inches
44.45 x 432 x 301 mm |
| Form Factor | Rack Mount, 1 RU |
| Power | 100ā240V AC,Ā 50ā60 Hz |
| Maximum Current | 110 V / 3 A, 220 V / 0.42 A |
| Power Consumption (Average / Maximum) | 70.98 / 109.9 W |
| Heat Dissipation | 374.9 BTU/h |
| Operating Temperature | 32ā104Ā°F (0ā40Ā°C) |
| Storage Temperature | -31ā158Ā°F (-35ā70Ā°C) |
| Humidity | 10ā90% non-condensing |
| Noise Level | 31.1 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL,
CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN;IPv6 |
