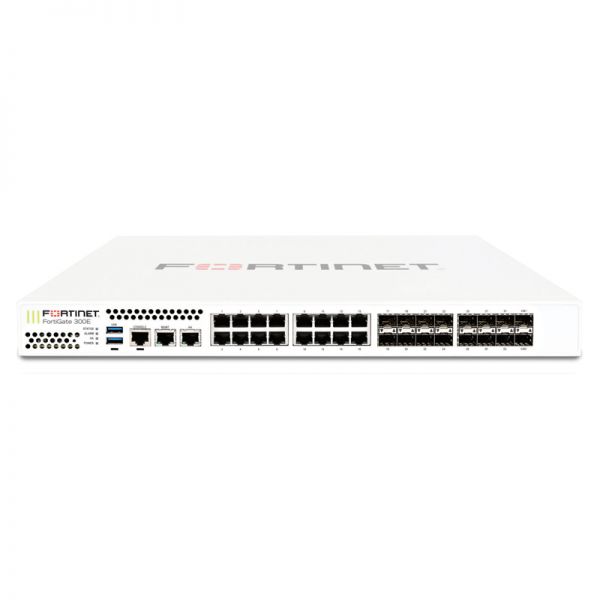

Model: FG-300E-BDL-950-36 – FortiGate 300E Firewall with Bundle
Detail:
FG-300EHardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTP) Protection (FG-300E & FC-10-00306-950-02-36)

FG-300E-BDL-950-36 Overview

The FortiGate 300E series delivers next generation firewall capabilities for mid-sized to large enterprises,with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats withĀ security processor powered high performance, security efficacy and deep visibility.

Quick Specs

Table 1 shows the Quick Specs.

Product Code FG-300E-BDL-950-36
Firewall 32 Gbps
IPS 5 Gbps
NGFW 3.5 Gbps
Threat Protection 3 Gbps
Interfaces 16 x GE SFP slots

16 x GE RJ45 ports

2x GE RJ45 MGMT/HA Ports

Product Details

Note:

ā‘  2 USB Ports
ā‘” 1 Console Port
ā‘¢ RJ45 MGMT Ports
ā‘£ RJ45 HA Ports
ā‘¤ 16x GE RJ45 Ports
ā‘„ 16x GE SFP Slots



SKU: FG-300E-BDL-950-36 Category: Tag:

FG-300E-BDL-950-36 Specification

FG-300E-BDL-950-36 Specification

Interfaces and Modules
GE SFP Slots 16
GE RJ45 Interfaces 16
GE RJ45 Management Ports 2
USB Ports 2
RJ45 Console Port 1
Local Storage NIL
Included Transceivers 2x SFP (SX 1 GE)

System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 32 / 32 / 20 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) 32 / 32 / 20 Gbps
Firewall Latency (64 byte, UDP) 3Ā Ī¼s
Firewall Throughput (Packet per Second) 30 Mpps
Concurrent Sessions (TCP) 4 Million
New Sessions/Second (TCP) 300,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte) 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
Client-to-Gateway IPsec VPN Tunnels 50,000
SSL-VPN Throughput 2.5Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 5,000
SSL Inspection Throughput (IPS, avg. HTTPS)Ā  3.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 2,500
SSL Inspection Concurrent Session

(IPS, avg. HTTPS)

 340,000


Application Control Throughput (HTTP 64K) 7 Gbps
CAPWAP Throughput (1444 byte, UDP) 5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 48
Maximum Number of FortiAPs (Total / Tunnel) 512 / 256
Maximum Number of FortiTokens 5,000
Maximum Number of Registered FortiClients 600
High Availability Configurations Active-Active, Active-Passive, Clustering

System PerformanceĀ ā€”Ā Enterprise Traffic Mix
IPS Throughput 5 Gbps
NGFW Throughput 3.5 Gbps
Threat Protection Throughput 3 Gbps

Dimensions and Power
Height x Width x Length 1.75 x 17.0 x 15.0 inches

44.45 x 432 x 380 mm
Form Factor 1 RU
AC Power Supply 100ā€“240V AC, 60ā€“50 Hz
Power Consumption (Average / Maximum) 95 W / 180 W
Current (Maximum) 6A
Heat Dissipation 570 BTU/h
Redundant Power Supplies optional

Operating Environment and Certifications
Operating Temperature 32ā€“104Ā°F (0ā€“40Ā°C)
Storage Temperature -31ā€“158Ā°F (-35ā€“70Ā°C)
Humidity 10ā€“90% non-condensing
Noise Level 48 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
