FG-30E-BDL-950-12 – Fortinet FortiGate NGFW Entry-level Series

Add to Wishlist

د.إ4,499.00

Add to Wishlist
Model: FG-30E-BDL-950-12 – Fortinet FortiGate NGFW Entry-level Series
Detail:
FG-30E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTP) Protection (FG-30E & FC-10-0030E-950-02-12)

FG-30E-BDL-950-12 (FG-30E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified) Overview

The FortiGate 30E series provides an application-centric, scalable and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses.

Quick Specs

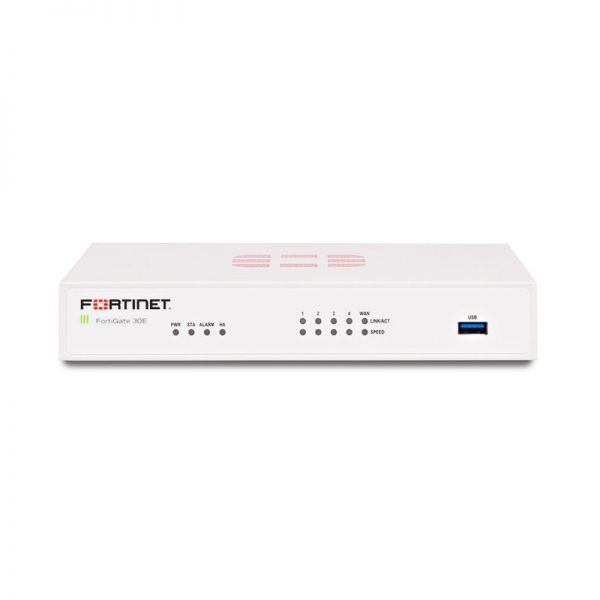

Figure 1 shows the appearance of FG-30E-BDL-950-12.
FG-30E-BDL-950-12

Table 1 shows the Quick Specs.

Product Code FG-30E-BDL-950-12
Physical Dimensions 1.61″h x 8.27w x 5.24″d
Ports/Connectors (4) GE RJ45 Switch

(1) GE RJ45 WAN

(1) USB

(1) Console RJ45
Power Notes Power Required: 100–240V AC, 60–50 Hz

(External DC Power Adapter)

Maximum Current: 100V / 0.6A, 240V / 0.4A

Power Consumption (Average / Maximum): 13 / 15 W

Product Details

Figure 2 shows the front panel of FG-30E-BDL-950-12.
FG-30E-BDL-950-12 front

Figure 3 shows the back panel of FG-30E-BDL-950-12.
FG-30E-BDL-950-12 back

FG-30E-BDL-950-12 provides these features:

Security

  • Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
  • Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
  • Prevents and detects against known attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
  • Proactively blocks unknown sophisticated attacks in realtime with the Fortinet Security Fabric integrated AI-powered FortiSandbox

Performance

  • Engineered for Innovation using Fortinet’s purpose-built security processors (SPU) to deliver the industry’s best threat protection performance and ultra-low latency
  • Provides industry-leading performance and protection for SSL encrypted traffic including the first firewall vendor to provide TLS 1.3 deep inspection

Certification

  • Independently tested and validated best security effectiveness and performance
  • Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives

Networking

  • Dynamic Path Selection over any WAN transport to provide better application experience based on self-healing SD-WAN capabilities
  • Advanced routing, scalable VPN, multi-cast, and IPV4/IPV6 forwarding powered by purpose-built network processors

Management

  • SD-WAN Orchestration provides intuitive and simplified workflow for centralized management and provisioning of business policies in a few easy clicks
  • Expedited deployment with Zero touch provisioning well-suited for large and distributed infrastructure
  • Automated VPN tunnels for flexible hub-to-spoke and full-mesh deployment at scale to provide bandwidth aggregation and encrypted WAN paths
  • Predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture

Security Fabric

  • Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation
  • Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products
SKU: FG-30E-BDL-950-12 (FG-30E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified) Category: Tag:

FG-30E-BDL-950-12 (FG-30E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified) Specification

FG-30E-BDL-950-12 Specification
Contents Appliance, documentation
General Information System Performance – Enterprise Traffic Mix:

IPS Throughput: 300 Mbps

NGFW Throughput: 200 Mbps

Threat Protection Throughput: 150 Mbps



System Performance:

Firewall Throughput: 950 Mbps

Firewall Latency (64 byte UDP packets): 130 µs

Firewall Throughput (Packets Per Second): 180 Kpps

Concurrent Sessions (TCP): 900,000

New Sessions/Second (TCP): 15,000

Firewall Policies: 5,000

IPsec VPN Throughput (512 byte): 75 Mbps

Gateway-to-Gateway IPsec VPN Tunnels: 200

Client-to-Gateway IPsec VPN Tunnels: 250

SSL-VPN Throughput: 35 Mbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 80

SSL Inspection Throughput (IPS, avg. HTTPS): 125 Mbps

SSL Inspection CPS (IPS, avg. HTTPS): 120

SSL Inspection Concurrent Session (IPS, avg. HTTPS): 45,000

Application Control Throughput (HTTP 64K): 400 Mbps

CAPWAP Throughput (HTTP 64K) 850 Mbps

Virtual Domains (Default / Maximum): 5 / 5

Maximum Number of Switches Supported: 8

Maximum Number of FortiAPs (Total / Tunnel Mode): 2 / 2

Maximum Number of FortiTokens: 20

Maximum Number of Registered FortiClients: 200

High Availability Configurations: Active/Active, Active/Passive, Clustering
Physical Dimensions 1.61″h x 8.27w x 5.24″d
Ports/Connectors (4) GE RJ45 Switch

(1) GE RJ45 WAN

(1) USB

(1) Console RJ45
Power Notes Power Required: 100–240V AC, 60–50 Hz

(External DC Power Adapter)

Maximum Current: 100V / 0.6A, 240V / 0.4A

Power Consumption (Average / Maximum): 13 / 15 W
Protocols
Networking Protocol: Gigabit Ethernet
Remote Management Protocol: HTTP
Switching Protocol: Ethernet
Transport Protocol: IPSec
