FG-40F-BDL-950-12 – Fortinet FortiGate/FortiWiFi Series

Add to Wishlist

4,899.00 د.إ

Add to Wishlist
Model: FG-40F-BDL-950-12 – Fortinet FortiGate/FortiWiFi Series
Detail:
FG-40F Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTP) Protection



FG-40F-BDL-950-12 Overview

The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses.

Quick Specs

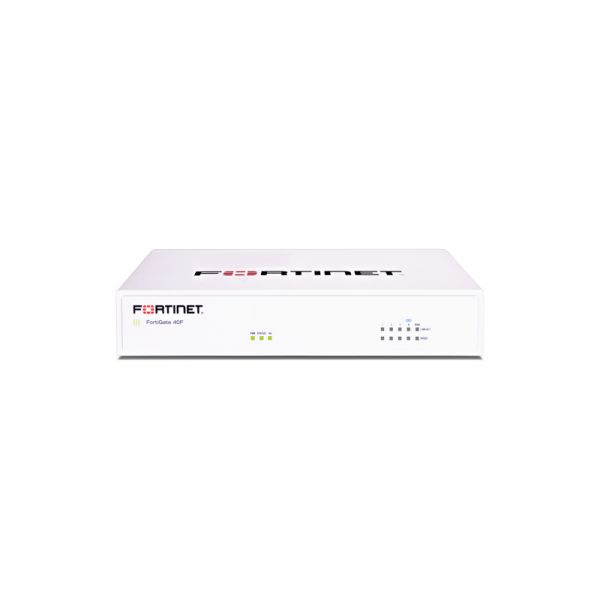

Figure 1 shows the appearance of FG-40F-BDL-950-12.
FG-40F-BDL-950-12

Table 1 shows the Quick Specs.

Product Code FG-40F-BDL-950-12
Power Device External power adapter
Installed Qty 1
Processors Installed 1 x Fortinet FortiASIC SOC4
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Product Details

Figure 2 shows the front panel of FG-40F-BDL-950-12.
FG-40F-BDL-950-12 front

FG-40F-BDL-950-12 provides these features:

  • Simplifies appliance design and enables amazing performance for smaller networks
  • Supports firewall acceleration for maximum throughput
  • Delivers accelerated UTM content processing for superior performance and protection
  • Accelerates VPN performance for high-speed, secure remote access

Compare to Similar Items

Table 2 shows the comparison of FG-40F-BDL-950-12.

Module FG-30E-BDL-950-12 FG-40F-BDL-950-12
Physical Dimensions 1.61″h x 8.27w x 5.24″d 1.4″h x 8.5w x 5.5″d
Power Notes Power Required: 100–240V AC, 60–50 Hz

(External DC Power Adapter)

Maximum Current: 100V / 0.6A, 240V / 0.4A

Power Consumption (Average / Maximum): 13 / 15 W

 Power Device:       External power adapter

Voltage Required  :AC 120/230 V (50 – 60 Hz)

Power Consumption Operational: 16.6 Watt
SKU: FG-40F-BDL-950-12 Category: Tag:

FG-40F-BDL-950-12 Specification

FG-40F-BDL-950-12 Specification
Miscellaneous
Compliant Standards UL, VCCI, C-Tick, cUL, CB, FCC Part 15 Class B
Networking
Form Factor Desktop
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol IPSec
Performance IPS throughput: 1 Gbps ¦ NGFW throughput: 800 Mbps ¦ Threat protection throughput: 600 Mbps ¦ VPN throughput (512-bit IPSec): 4.4 Gbps ¦ SSL inspection throughput: 310 Mbps ¦ SSL inspection throughput: 320 connections per second ¦ Firewall throughput (1518-byte UDP): 5 Gbps ¦ Firewall throughput (512-byte UDP): 5 Gbps ¦ Firewall throughput (64-byte UDP): 5 Gbps ¦ Firewall throughput: 7.5 Mpps ¦ Application control (HTTP 64K): 990 Mbps ¦ VPN throughput (SSL): 490 Mbps ¦ CAPWAP throughput: 3.5 Gbps
Capacity Latency: 4 µs ¦ Concurrent sessions: 700000 ¦ New sessions: 35000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 250 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 8 ¦ Number of FortiAP devices: 10 ¦ Number of FortiToken devices: 500 ¦ Concurrent SSL VPN users: 200 ¦ SSL inspection concurrent sessions: 55000 ¦ Number of FortiClient devices: 200
Features Firewall protection, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), fanless, web threat protection, FortiLink Mode
Encryption Algorithm SSL, TLS 1.3
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
General
Device Type Security appliance
Bundled Services 1 year 24×7 FortiCare and FortiGuard Unified (UTM) Protection
Width 8.5 in
Depth 5.5 in
Height 1.4 in
Processor / Memory / Storage
Processors Installed 1 x Fortinet FortiASIC SOC4
Expansion / Connectivity
Interfaces 3 x 1000Base-T – RJ-45 ¦ 1 x FortiLink – RJ-45 ¦ 1 x 1000Base-T – RJ-45 (WAN / DMZ) ¦ 1 x console – RJ-45 ¦ 1 x USB 3.0 – Type A
Power
Power Device External power adapter
Installed Qty 1
Voltage Required AC 120/230 V (50 – 60 Hz)
Power Consumption Operational 16.6 Watt
Software / System Requirements
OS Provided FortiOS
