| Model: | FG-52E – Fortinet NGFW Entry-level Series FortiGate 52E |
| Detail: |
Fortinet FG-52E 7 x GE RJ45 ports (Including 2 x WAN port, 5 x Switch ports) with 2x 32GB SSD onboard storage. Max managed
|
FG-52E Overview
FG-52E is the Fortinet NGFW Entry-level Series FortiGate 52E firewall. The FortiGate 50E series offers an excellent Security and SD-WAN solution in a compact fanless desktopĀ form factor for enterprise branch offices and mid-sized businesses.
Quick Spec
Table 1 shows the quick spec.
| SKU | FG-52E |
| Firewall | 2.5 Gbps |
| IPS | 350 Mbps |
| NGFW | 220 Mbps |
| Threat Protection | 160 Mbps |
| Interfaces | 7x GE RJ45 ports (including 2x WAN ports, 5x Switch ports) |
Product Details

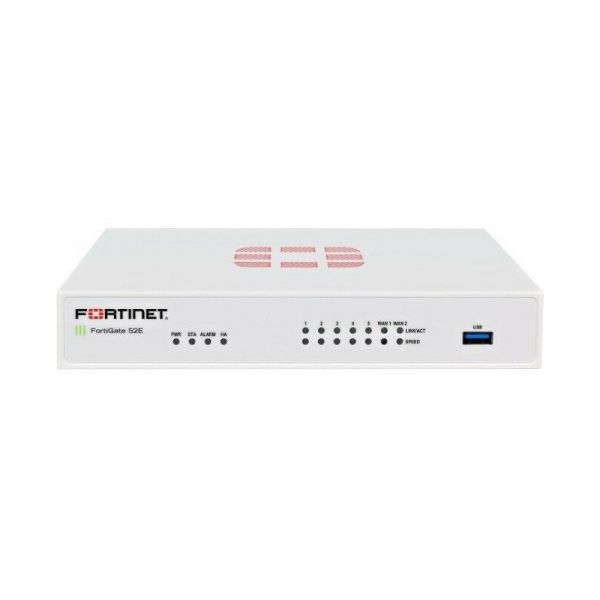

Figure 1 shows the front view of FG-52E.Ā
Note:
| ā | USB Port |
Figure 2 shows the rear view of FG-50E.Ā FG-52E is similar with it.
Note:
| ā | Console RJ45 |
| ā” | 2x GE RJ45 WAN Ports |
| ā¢ | 5x Switch Ports |
Compare to Similar Item
Table 2 shows the comparison of FG-50E and FG-52E.
| Sku | FG-50E | FG-52E |
| Firewall | 2.5 Gbps | 2.5 Gbps |
| IPS | 350 Mbps | 350 Mbps |
| NGFW | 220 Mbps | 220 Mbps |
| Threat Protection | 160 Mbps | 160 Mbps |
| Interfaces | 7x GE RJ45 ports (including 2x WAN ports, 5x Switch ports) | 7x GE RJ45 ports (including 2x WAN ports, 5x Switch ports) |
| Internal Storage | N/A | 2x 32 GB SSD |
FG-52E Specification
FG-52E Specification |
|
| Type | FORTIGATE 52E |
|
Hardware Specifications |
|
| GE RJ45 Switch Ports | 5 |
| GE RJ45 WAN Ports | 2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | – |
| Internal Storage | 2x 32 GB SSD |
|
System Performance and Capacity |
|
| Firewall Throughput | 2.5 Gbps |
| Firewall Latency (64 byte UDP Packets) | 180 Ī¼s |
| Firewall Throughput (Packet per Second) | 375 Kpps |
| Concurrent Sessions (TCP) | 1.8 Million |
| New Sessions/Second (TCP) | 21,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 90 Mbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 100 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 150 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 140 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 75,000 |
| Application Control Throughput (HTTP 64K) | 450 Mbps |
| CAPWAP Throughput (HTTP 64K) | 1.2 Gbps |
| Virtual Domains (Default / Maximum) | 5 / 5 |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 10 / 5 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
|
System Performance |
|
| IPS Throughput | 350 Mbps |
| NGFW Throughput | 220 Mbps |
| Threat Protection Throughput | 160 Mbps |
|
Dimensions and Power |
|
| Height x Width x Length | 1.44 x 8.52 x 5.5 inches
36.5 x 216 x 140 mm |
| Form Factor | Desktop |
| Power Required | 100ā240V AC, 60ā50 Hz (External DC Power Adapter) |
| Maximum Current | 110 V / 0.32 A, 220 V / 0.57 A |
| Power Consumption (Average / Maximum) | 22.5 / 27 W |
| Heat Dissipation | 92 BTU/h |
|
Operating Environment and Certifications |
|
| Operating Temperature | 32ā104Ā°F (0ā40Ā°C) |
| Storage Temperature | -31ā158Ā°F (-35ā70Ā°C) |
| Humidity | 10ā90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
