| Model: | FG-81E-POE – Fortinet NGFW Entry-level Series FortiGate 81E POE |
| Detail: |
Fortinet FG-81E-POE 16 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 HA port, 12 x PoE ports)
|
FG-81E-POE Overview
FG-81E-POE is the Fortinet NGFW Entry-level Series FortiGate 81E-POE firewall. The FortiGate 80E series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses.
Quick Spec
Table 1 shows the quick spec.
| SKU | FG-81E-POE |
| Firewall | 4 Gbps |
| IPS | 450 Mbps |
| NGFW | 360 Mbps |
| Threat Protection | 250 Mbps |
| Interfaces | 16x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x HA port, 12x PoE ports) |
Product Details

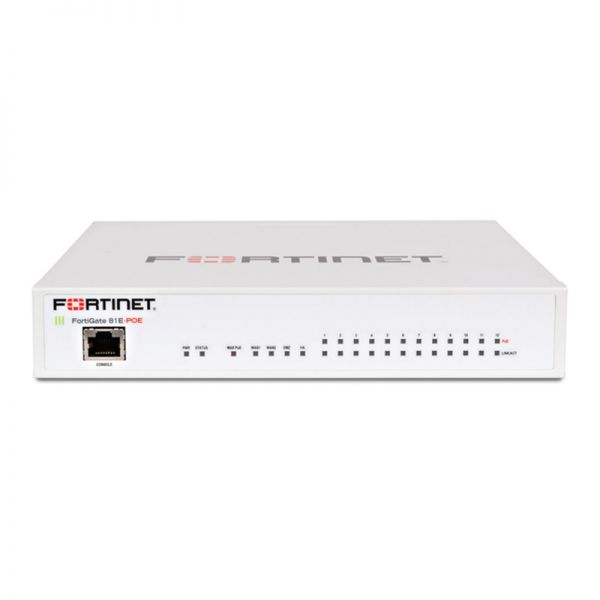

Figure 1 shows the front view of FG-81E-POE.
Note:
| ā | Console Port |
Figure 2 shows the rear view of FG-80E for reference. FG-81E-POE is similar with it.
Note:
| ā | USB Port |
| ā” | 12x GE RJ45 Ports |
| ā¢ | 2x GE RJ45 DMZ/HA Ports |
| ā£ | 2x GE RJ45/SFP Shared Media Pairs |
Compare to Similar Item
Table 2 shows the comparison of FG-81E-POE and FG-81E.
|
Sku |
FG-81E-POE |
|
|
Firewall |
4 Gbps |
4 Gbps |
|
IPS |
450 Mbps |
450 Mbps |
|
NGFW |
360 Mbps |
360 Mbps |
|
Threat Protection |
250 Mbps |
250 Mbps |
|
Interfaces |
16x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x HA port, 12x PoE ports) |
14x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots) |
FG-81E-POE Specification
FG-81E-POE Specification |
|
| Type | FORTIGATE 81E-POE |
|
Hardware Specifications |
|
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Ports | – |
| GE RJ45 PoE/+ Ports | 12 |
| GE RJ45 DMZ/HA Ports | 2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | 1x 128 GB SSD |
|
System Performance and Capacity |
|
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 4 / 4 / 4 Gbps |
| Firewall Latency (64 byte UDP Packets) | 3 Ī¼s |
| Firewall Throughput (Packet per Second) | 6 Mpps |
| Concurrent Sessions (TCP) | 1.3 Million |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 2.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2,500 |
| SSL-VPN Throughput | 200 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 135 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 135 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 95,000 |
| Application Control Throughput (HTTP 64K) | 900 Mbps |
| CAPWAP Throughput (HTTP 64K) | 920 Mbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 32 / 16 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
|
System Performance |
|
| IPS Throughput | 450 Mbps |
| NGFW Throughput | 360 Mbps |
| Threat Protection Throughput | 250 Mbps |
|
Dimensions and Power |
|
| Height x Width x Length | 1.65 x 8.5 x 7 inches
42 x 216 x 178 mm |
| Form Factor | Desktop |
| Power Required | 100ā240V AC, 50ā60 Hz |
| Total Available PoE Power Budget | 110W |
| Power Consumption (Average / Maximum) | 20 / 137 W |
| Current (Maximum) | 115V AC / 1.2A, 230V AC / 0.6A |
| Heat Dissipation | 467.5 BTU/h |
|
Operating Environment and Certifications |
|
| Operating Temperature | 32ā104Ā°F (0ā40Ā°C) |
| Storage Temperature | -31ā158Ā°F (-35ā70Ā°C) |
| Humidity | 10ā90% non-condensing |
| Noise Level | 35 dBA |
| Operating Altitude | Up to 16,404 ft (5,000 m) |
| Compliance | FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
