Fiber Media Converter Gigabit 1000Mbps MM Fibre LC 550m – TAA

Add to Wishlist

Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multimode LC fiber



  • ETHERNET OVER FIBER EXTENSION: Use this half / full duplex RJ45 copper to fiber media converter to convert and extend a Gigabit Ethernet connection up to 550m / 1804ft over multimode LC fiber
  • INCLUDES SFP: IT-grade network fiber media converter includes an SFP transceiver, enabling an 850nm LC multimode Gigabit fiber connection
  • MAXIMUM DURABILITY: Rugged media converter with durable steel housing has been built to withstand harsh environments and features an operating temperature range of 0°C-60°C (32°F-140°F); TAA Compliant
  • PLUG AND PLAY: Designed for ease of use, this LC RJ45 copper to fiber media converter provides a quick and easy setup; Can be used as a standalone device or mounted to a wall; Supports IEEE 802.1q Tag VLAN pass through and 9K Jumbo Frame

AED1,299.00

Add to Wishlist

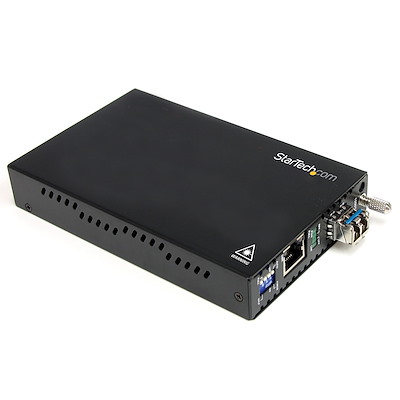

The ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).

A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis and a simple plug-and-play installation with minimal configuration required.

For added versatility, this fiber media converter supports standalone operation, as well as a replaceable SFP slot.

Applications

  • Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
  • Perfect for secure connections required by government agencies, where EMI is not acceptable
  • Connect traffic control/monitoring systems at extreme distances to the main office
  • Extend network connectivity to remote areas of stadiums, auditoriums, or other venues
  • Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over multi-mode fiber cable
SKU: ET91000LC2 Category: Tag:

Specifications Table

Category Details
Connector(s)
Local Unit Connectors – 1 × Fiber Optic LC Duplex
– 1 × RJ-45
Environmental
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 10% to 90% RH
Hardware
PoE No
WDM No
Packaging Information
Package Height 3.6 in [9.1 cm]
Package Length 8.1 in [20.6 cm]
Package Width 5.5 in [13.9 cm]
Shipping Weight 1.7 lb [0.8 kg]
Package Quantity 1
Performance
Max Data Transfer Rate 2000 Mbps (Full Duplex Mode)
Max Transfer Distance 550 m (1804 ft)
Type Multi Mode
Wavelength 850 nm
Fiber Operating Mode Half/Full-Duplex
Auto MDIX Yes
MTBF 65,000 Hours
Physical Characteristics
Weight of Product 14.3 oz [405 g]
Color Black
Material Steel
Product Dimensions (L × W × H) 6.3 in × 3.7 in × 0.8 in
(16 cm × 9.5 cm × 2 cm)
Power
Power Source AC Adapter Included
Input Voltage 100 – 240 AC
Input Current 0.36 A
Output Voltage 12V DC
Output Current 1.6 A
Center Tip Polarity Positive
Plug Type M
Power Consumption 4 Watts
What’s in the Box
Included Items – 1 × Fiber Media Converter
– 1 × Universal Power Adapter (Region-specific)
– 1 × Grounding Screw
– 1 × Instruction Manual
