Fortinet FortiAP U223EV 802.11ac Wave 1 2×2 MIMO Universal Access Point With Dual Radios, External Antennas

Add to Wishlist

3,999.00 د.إ

Add to Wishlist

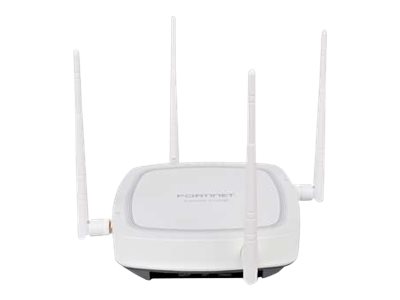

Fortinet FortiAP U223EV – wireless access point



Overview

Fortinet’s FortiAP U series offers a wide range of access points capable of being managed by any of Fortinet’s controller and management options.

  • Universal access management product offerings
  • Superior security protection
  • Improved client throughput and range
SKU: FAP-U223EV-A Category: Tags: , , ,
General
Device Type Wireless access point
Ruggedized Design Indoor
Width 7.9 in
Depth 7.9 in
Height 1.6 in
Weight 21.16 oz
Localization Americas
Networking
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 867 Mbps
Line Coding Format 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Data Link Protocol Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 1
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum data rate (2.4 GHz): 300 Mbps Maximum data rate (5 GHz): 867 Mbps
Capacity Wireless clients per Wi-Fi radio: 256 SSIDs per radio: 16
Features Wall mountable, tunneling, WPA2 encryption, wireless bridge mode, 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, ceiling mountable, Maximum Likelihood Demodulation (MLD), Captive Portal, security lock slot (cable lock sold separately), 802.1x authentication, iBeacon technology, Bluetooth Low Energy Beaconing, WPA encryption, packet aggregation A-MPDU, packet aggregation A-MSDU, dual band, T-Rail mountable, LED off mode, black list, spectrum analyzer, FortiPresence support, white list, Packet Sniffer Mode, Wireless Mesh support, MIMO Power Save, Short Guard Interval, WME Multimedia Extensions
Encryption Algorithm TLS, PEAP, TTLS, WPA, WPA2, WEP, EAP-SIM, EAP-AKA
Authentication Method MS-CHAP v.2, EAP-FAST
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac Wave 1
Antenna
Antenna External detachable
Antenna Qty 4
Expansion / Connectivity
Interfaces 4 x antenna – RP-SMA 1 x 1000Base-T (PoE+) – RJ-45 1 x USB – Type A
Miscellaneous
Included Accessories Wall mounting kit, ceiling mounting kit, T-Rail mounting kit
MTBF >10 years
Compliant Standards RoHS, LVD
Power
Power Over Ethernet (PoE) Supported PoE+
Power Consumption Operational 12.5 Watt
Dimensions & Weight (Shipping)
Shipping Weight 2.6 lbs
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 – 90% (non-condensing)
General
Depth 7.9 in
Device Type Wireless access point
Height 1.6 in
Localization Americas
Ruggedized Design Indoor
Weight 21.16 oz
Width 7.9 in
Antenna
Antenna External detachable
Antenna Qty 4
Dimensions & Weight (Shipping)
Shipping Weight 2.6 lbs
Environmental Parameters
Humidity Range Operating 5 – 90% (non-condensing)
Max Operating Temperature 122 °F
Min Operating Temperature 32 °F
Expansion / Connectivity
Interfaces 4 x antenna – RP-SMA ¦ 1 x 1000Base-T (PoE+) – RJ-45 ¦ 1 x USB – Type A
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Miscellaneous
Compliant Standards RoHS, LVD
Included Accessories Wall mounting kit, ceiling mounting kit, T-Rail mounting kit
MTBF >10 years
Networking
Authentication Method MS-CHAP v.2, EAP-FAST
Capacity Wireless clients per Wi-Fi radio: 256 ¦ SSIDs per radio: 16
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac Wave 1
Connectivity Technology Wireless
Data Link Protocol Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 1
Data Transfer Rate 867 Mbps
Encryption Algorithm TLS, PEAP, TTLS, WPA, WPA2, WEP, EAP-SIM, EAP-AKA
Features Wall mountable, tunneling, WPA2 encryption, wireless bridge mode, 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, ceiling mountable, Maximum Likelihood Demodulation (MLD), Captive Portal, security lock slot (cable lock sold separately), 802.1x authentication, iBeacon technology, Bluetooth Low Energy Beaconing, WPA encryption, packet aggregation A-MPDU, packet aggregation A-MSDU, dual band, T-Rail mountable, LED off mode, black list, spectrum analyzer, FortiPresence support, white list, Packet Sniffer Mode, Wireless Mesh support, MIMO Power Save, Short Guard Interval, WME Multimedia Extensions
Form Factor External
Frequency Band 2.4 GHz, 5 GHz
Line Coding Format 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Performance Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps
Power
Power Consumption Operational 12.5 Watt
Power Over Ethernet (PoE) Supported PoE+
