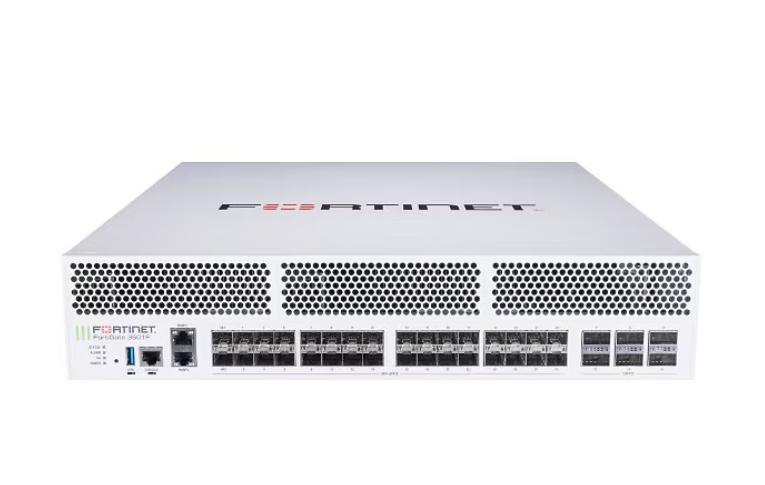

Fortinet FortiGate 3501F – security appliance


Quick tech specs

  • Security appliance
  • front to back airflow
  • rack-mountable
  • 40GbE, 100GbE, 25GbE
  • 2U

AED1,050,099.00

Know your gear

The FortiGate 3500F series delivers high-performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and high-throughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments. Leverage industry-leading IPS, SSL inspection, and advanced threat protection to optimize your network’s performance. Fortinet’s SecurityDriven Networking approach provides tight network integration to the new security generation.
SKU: FG-3501F Category: Tag:
Category Details
Overview
Brand Fortinet
Product Line Fortinet FortiGate
Model 3501F
Manufacturer Fortinet
Processor
Processor Brand Fortinet
Processor Type FortiASIC CP9/NP7
Storage
Port Expansion Hard Drive Type SSD
Network & Communication
Connectivity Technology Wired
Data Link Protocols 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Features CAPWAP support, IP tunnel acceleration, SSL inspection, Trusted Platform Module (TPM), VPN support
Form Factor Rack-mountable
Network Standard HTTP, HTTPS, IPSec, IPv4, IPv6, SCTP, TCP/IP, UDP/IP
Product Type Security appliance
Remote Management HTTP, HTTPS
Status Indicators Alarm, HA, Power, Status
Connectivity
Interface Provided 1 x console – RJ-45, 1 x USB 3.0, 2 x 1 Gigabit Ethernet/10Gb Ethernet (management) – RJ-45 (WAN), 2 x 10Gb Ethernet/25Gb Ethernet (HA) – SFP+/SFP28, 30 x SFP/SFP+/SFP28, 6 x QSFP+/QSFP28
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Consumption Operational 765 watt
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Required Voltage AC 100-240 volt
Technical Information
Encryption 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 20 – 90% (non-condensing)
Product Information
Airflow Direction Front to back airflow
Capacity Client to gateway IPSec VPN tunnels: 200000, Concurrent SSL VPN users: 30000, Concurrent TCP sessions: 140000000, Firewall policies: 200000, SSL inspection concurrent sessions: 15000000, Virtual domains: 10
Device Type Internal power supply
Packaged Quantity 1
Included Items
Included Accessories 2 x SR 10Gbps SFP+ transceivers
Dimensions & Weight
Height 3.5 inch
Height (Rack Units) 2
Weight 45.41 lbs
Width 17.4 inch
Depth 21.9 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards CB, cUL, FCC Part 15 A, ICSA Antivirus, ICSA Firewall certified, ICSA IPS, ICSA IPSec certified, ICSA IPv6, ICSA SSL-VPN, ICSA USGv6, RCM, UL, VCCI
