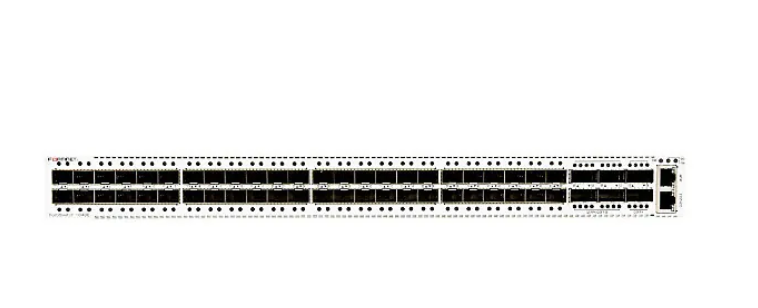

Fortinet FortiSwitch 1048E – switch – 48 ports – managed – rack-mountable


Quick tech specs

  • Switch
  • 48 x 1 Gigabit / 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+ + 4 x 100 Gigabit QSFP28
  • managed
  • rack-mountable

AED108,299.00

Know your gear

FortiSwitch switches deliver a secure, simple, scalable Ethernet solution with outstanding throughput, resiliency and scalability for organizations with high-performance network requirements.
SKU: FS-1048E Category: Tag:
Overview
Brand Fortinet
Product Line Fortinet FortiSwitch
Model 1048E
Manufacturer Fortinet
Memory
Flash Memory Installed 128 GB
RAM Installed 8 GB
Network & Communication
Compliant Standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
Features 12MB packet buffer, DHCP support, Flow control, FTP client, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, sFlow, SNTP support, Spanning Tree Protocol (STP) support, Storm Control, Tagged VLAN, Trivial File Transfer Protocol (TFTP) support, VLAN support
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support Yes
MAC Address Table Size 128K entries
Manageable Yes
Ports 48
Product Type Switch
Remote Management CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol OSPF, RIP, Static IP routing, VRRP
Stackable Stackable
Subcategory Network hubs and switches
Switching Type 100 Gigabit Ethernet
Expansion Slots
QSFP Slots 100 Gigabit QSFP28
Connectivity
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x console RJ-45 management, 4 x 100Gbit LAN QSFP28, 48 x 1/10Gbit LAN SFP+, 6 x 40Gbit LAN QSFP+
Port Quantity 48
Port Type 1 Gigabit / 10 Gigabit SFP+
Ports Type (2nd) 40 Gigabit QSFP+
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Consumption Operational 181.7 watt
Power Supplies Installed 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Technical Information
Max Operating Temperature 104°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -4°F
MTBF 10 Year
Operating Humidity 10 – 90% (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell (SSH)
Capacity ACL entries: 8000, Host entries: 32000, MAC addresses: 144000, Maximum aggregation groups: 48, MSTP instances: 15, Queues per port: 8, Routing entries: 16000, VLANs supported: 4000
Device Type Internal power supply
Packaged Quantity 1
Performance Latency: < 800 ns, Packets per second: 1310 Mpps, Switching capacity: 1760 Gbps
Ports (2nd) Quantity 6
Ports (3rd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 18.96 lbs
Width 17.3 inch
Depth 18.1 inch
Physical Characteristics
Color Category White
