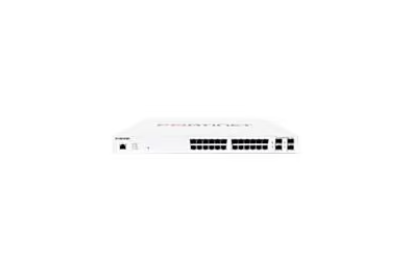

Fortinet FortiSwitch 124E-POE – switch – 24 ports – managed – rack-mountable


Quick tech specs

  • POE switch
  • PoE
  • Rack-mountable
  • Jumbo Frame Support
  • 4 ports
  • Managed
  • 17.78W power consumption

AED4,899.00

Know your gear

Deliver a secure and simple solution to your network using this FortinetĀ® FortiSwitchā„¢ 124E POE. It comes with 24X 10/100/1000 GigE ports that transfer data across devices at a 56Gbps switching capacity. Featuring 4 Gigabit SFPs, the appliance expands its interoperability via optical and copper linkages. It has a 5212 Kb packet buffer that stores temporal data to minimize transmission delays. Ensure steady transfer in the enterprise network with its 41.66 Mpps forwarding rate. With Jumbo Frame Support, this device reduces per-packet overheads to enhance throughput. The managed switch has a single pane of management for comprehensive control and visibility over network security and devices.

This FortiSwitch integrates auto-negotiation that fosters device-to-device communication for correct linkages as per duplex and speed capacities. Its LACP bundles multiple interfaces for a single redundant connection. Since it has port mirroring, the switch spot-checks data traffic to support concurrent throughput at various levels. Eliminate the need for AC/DC outlets within a network line using this Fortinet PoE switch. Its rack-mountable build eases the installation in small spaces. This device has 17.78W power consumption for a standard operation. The appliance comes with a limited lifetime

SKU: FS-124E-POE Category: Tag:
Category Details
Overview
Brand Fortinet
Product Line Fortinet FortiSwitch
Model 124E-POE
Manufacturer Fortinet
Memory
Flash Memory Installed 32 megabyte
Memory Technology DDR3 SDRAM
RAM Installed 256 megabyte
Network & Communication
Compliant Standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 512KB packet buffer, 802.1x authentication, Auto-negotiation, Back Pressure Support, DHCP client, Fanless, Flow control, FortiLink Mode, Guest VLAN, IPv6 management, Jumbo Frames support, Link Aggregation, Link Aggregation Control Protocol (LACP), MAC Access Bypass (MAB), Management Information Base (MIB), Management Information Base (MIB) II, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, SNTP support, Spanning Tree Protocol (STP) support, Storm Control, STP BPDU Guard, STP Root Guard, Telnet server, VLAN Tagging
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support Yes
MAC Address Table Size 8K entries
Manageable Yes
PoE Budget 185 watt
Ports 24
Power Over Ethernet (PoE) PoE
Product Type Switch
Remote Management CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
QSFP Slots 10/100/1000 (PoE)
Connectivity
Interface Provided 1 x console RJ-45 management, 12 x 1000Base-T RJ-45 PoE, 24 x 1000Base-T RJ-45, 4 x Gigabit LAN SFP
Port Quantity 24
Port Type 10/100/1000
Ports Type (2nd) Gigabit SFP
Power
Frequency 50 – 60 hertz
Power Consumption Operational 17.78 watt
Technical Information
Max Operating Temperature 104 degrees Fahrenheit
Max Storage Temperature 158 degrees Fahrenheit
Min Operating Temperature 32 degrees Fahrenheit
Min Storage Temperature -40 degrees Fahrenheit
MTBF >10 Year
Operating Humidity 10 – 90% (non-condensing)
Product Information
Capacity Link aggregation groups: 8, Total link aggregation groups: 8, VLANs supported: 4000
Device Type Internal power supply
Packaged Quantity 1
Performance Latency: 4 ms, Packets per second: 41.66 Mpps, Switching capacity: 56 Gbps
Ports (2nd) Quantity 4
Ports (3rd) Quantity 12
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 11.09 lbs
Width 17.3 inch
Depth 12.2 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
