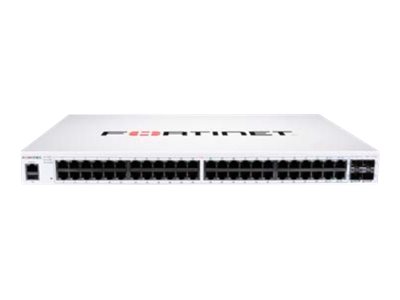

Fortinet FortiSwitch 148F-FPOE – switch – 48 ports – managed – rack-mountable


Fortinet FortiSwitch 148F-FPOE – Switch – managed – 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ – side to back airflow – rack-mountable – PoE+ (740 W)

10,299.00 د.إ

Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.

FortiLink is an innovative proprietary management protocol that allows the FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.

SKU: FS-148F-FPOE Category: Tag:
Enclosure Type Side to back airflow rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Switching capacity: 176 Gbps ¦ Packets per second: 260 Mbps ¦ Latency: < 1 µs
Capacity VLANs supported: 4000 ¦ Link aggregation groups: 8 ¦ Total link aggregation groups: 128 ¦ Buffer capacity (MB): 2
MAC Address Table Size 32K entries
Jumbo Frame Support Yes
Routing Protocol IGMP, policy-based routing (PBR), MSTP, RSTP, STP
Remote Management Protocol SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, RSTP, RADIUS
Authentication Method Secure Shell (SSH), RADIUS
Features Flow control, firewall protection, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, SNTP support, DHCP snooping, STP Root Guard, LACP support, LLDP support, 802.1x authentication, Storm Control, Link Aggregation, Management Information Base (MIB) II, Application Visibility and Control (AVC), LLDP-MED, VLAN Tagging, IP forwarding support, MAC Access Bypass (MAB), BPDU Guard, Link Aggregation Group (LAG)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX
RAM 512 MB DDR3 SDRAM
Flash Memory 64 MB
Status Indicators Status
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ ¦ 1 x serial (console) RJ-45
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50 – 60 Hz)
Power Consumption Operational 893.5 Watt
Miscellaneous
MTBF 10 years
Compliant Standards UL, VCCI, BSMI, CB, FCC, RoHS2, RCM
Dimensions & Weight
Width 17.3 in
Depth 12.2 in
Height 1.7 in
Weight 10.32 lbs
