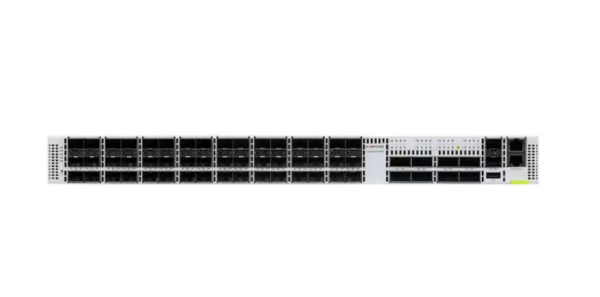

Fortinet FortiSwitch 2048F – switch – 48 ports – managed – rack-mountable


Quick tech specs

  • Switch
  • 48 x 1/10/25 Gigabit SFP28 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28
  • rack-mountable
  • managed
  • front to back airflow

127,599.00 د.إ

Know your gear

The FortiSwitch campus core and data center family excel in performance, security, and resiliency, making them the optimal choice for both campus core and data center networking needs.

The proliferation of virtualization, cloud computing, and the increasing volume of data generated by users and IoT devices has necessitated dense high-bandwidth Ethernet networking and aggregation. In these environments, the paramount concerns are data security, performance, and resiliency. These dynamic settings demand efficient network management, monitoring, and optimization efforts while simplifying overall network complexity. The FortiSwitch campus core and data center switching architecture empowers network administrators with the requisite performance, control, and manageability for these demanding scenarios. Its seamless security integration and user-friendly management interface establish a robust foundation for your next-generation campus core or data center.

SKU: FS-2048F Category: Tag:
Category Details
Overview
Brand Fortinet
Product Line Fortinet FortiSwitch
Model 2048F
Manufacturer Fortinet
Memory
Flash Memory Installed 8 GB
Memory Technology DDR4 SDRAM
RAM Installed 8 GB
Network & Communication
Compliant Standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
Features ACL support, ALERT notification, BFD, DHCP relay/server/snooping, DAI, Dynamic packet capture, ERSPAN, ECMP, ECN, IGMP proxy/querier/snooping, IP source guard, IP-MAC binding, IPv6 support, LLDP support, MACsec support, MLAG, PBR, Port mirroring, RADIUS support, RSPAN, sFlow, SNTP, Static routing, URPF, VXLAN, VRF, Wake on LAN (WOL)
Form Factor Rack-mountable
Jumbo Frame Support Yes
MAC Address Table Size 128K entries
Manageable Yes
Ports 48
Product Type Switch
Remote Management CLI, HTTP, HTTPS, MIB, RMON, SNMP (v1, v2c, v3), SSH, Telnet
Routing Protocol BGP, IS-IS, OSPF, PIM-SSM, RIP, Static IP routing, VRRP, VXLAN
Stackable Yes
Subcategory Network hubs and switches
Switching Type 100 Gigabit Ethernet
Expansion Slots
QSFP Slots 40/100 Gigabit QSFP28
Connectivity
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x console RJ-45 management, 2 x 1/10GBase-X SFP+, 48 x 1/10/25GBase-X SFP28, 8 x 40/100GBase-X QSFP28
Port Quantity 48
Port Type 1/10/25 Gigabit SFP28
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+
Power
Frequency 50 – 60 Hz
Hot-Plug Hot-plug
Power Supplies Installed 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Required Voltage AC 100-240 volt
Technical Information
Max Operating Temperature 113°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -13°F
MTBF > 10 Years
Operating Humidity 10 – 90% RH (non-condensing)
Product Information
Airflow Direction Front to back airflow
Authentication Method RADIUS, Secure Shell (SSH)
Capacity ACL entries: 3000, Host entries: 16000, IPv4 routes: 16000, IPv6 routes: 8000, MAC addresses: 144000, Aggregation groups: 48, Multicast routes: 8000, Queues per port: 8, VLANs supported: 4000
Device Type Internal power supply
Packaged Quantity 1
Performance Latency: <1 µs, Packet buffer size: 32 Mbit, Packets per second: 1310 Mpps, Switching capacity: 4000 Mpps, Switching capacity: 4000 Gbps
Ports (2nd) Quantity 2
Ports (3rd) Quantity 8
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1U
Weight 21.78 lbs
Width 17.3 inch
Depth 18.1 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
