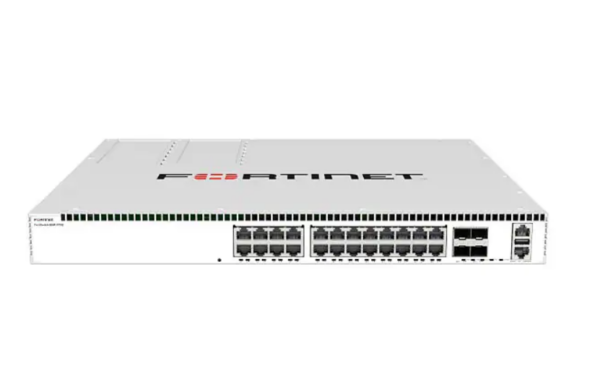

Fortinet Layer 2/3 Switch Controller for FortiSwitch 624F Firewall Appliance
Quick tech specs
- Compatible with Fortinet FortiSwitch 624F Firewall Appliance
51,799.00 د.إ
Know your gear
The FortiSwitch campus family offers an unparalleled combination of security, performance, and manageability, making it the ideal choice for the enterprise campus that prioritize safeguarding against threats. As campus network design continues to adapt to emerging technologies and evolving business requirements, the FortiSwitch enterprise campus switching architecture empowers network administrators with enhanced visibility, control, and manageability. The platform’s scalability, agility, and ease of management contribute to a highly secure environment, providing a robust foundation for any sized campus.
| Category | Specification |
|---|
| Overview |
| Brand | Fortinet |
| Product Line | Fortinet FortiSwitch |
| Model | 624F-FPOE |
| Manufacturer | Fortinet |
| Memory |
| Flash Memory Installed | 32 MB |
| Memory Technology | DDR4 SDRAM |
| RAM Installed | 4 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Features | 802.1x authentication, ACL support, ARP inspection, Automatic MDIX, Auto-negotiation, DHCP relay/server/snooping, ERSPAN, IGMP proxy/snooping, High Availability, IP source guard, MAC Access Bypass (MAB), MACsec, MC-LAG, NAC, Port mirroring/trunking, QoS, Rapid PVST (RPVST), RA guard, sFlow, SNTP support, VLAN support, WOL |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | Yes |
| MAC Address Table Size | 64K entries |
| Manageable | Yes |
| PoE Budget | 1400 watt |
| Ports | 24 |
| Power Over Ethernet (PoE) | PoE++ |
| Product Type | Switch |
| Remote Management | CLI, DHCP, HTTP, HTTPS, IPv4, IPv6, RMON, SNMP 1/2c/3, SSH, Syslog, Telnet, TFTP |
| Routing Protocol | BGP, BFD, ECMP, IGMP, IS-IS, MLD, MSTP, OSPF/OSPFv2, PIM-SSM, PBR, RIP-2, URPF, VRRP |
| Status Indicators | Alarm, Fan, Link/activity/speed, PoE activity, Power |
| Subcategory | Network hubs and switches |
| Switching Type | 5 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x console RJ-45, 1 x management Gigabit LAN RJ-45, 24 x 1/2.5/5GBase-T RJ-45 PoE++ – 90 W, 4 x 25GBase-X SFP28 |
| Port Quantity | 24 |
| Port Type | 10/100/1000/2.5G (PoE++) |
| Ports Type (2nd) | 25 Gigabit SFP28 |
| Power |
| Frequency | 50/60 hertz |
| Hot-Plug | Hot-plug |
| Power Provided | 1200 watt |
| Power Supplies Installed | 2 |
| Power Supplies Supported | 2 |
| Required Voltage | AC 100-240 volt |
| Technical Information |
| Max Operating Temperature | 113°F |
| Max Storage Temperature | 158°F |
| Min Operating Temperature | 32°F |
| Min Storage Temperature | -40°F |
| MTBF | >10 years |
| Operating Humidity | 5 – 95% RH (non-condensing) |
| Product Information |
| Airflow Direction | Back to front |
| Authentication Method | EAP, RADIUS |
| Capacity | ACL: 36,000, Host IPv4 routes: 192,000, IP multicast entries: 12,000, IPv4 routing entries: 16,000, Maximum aggregation groups: 28, Packet buffer size: 8 MB, Spanning Tree Protocol instances: 32, VLANs: 4,000 |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Forwarding performance: 654 Mpps, Latency: 1 µs, Switching capacity: 440 Gbps |
| Ports (2nd) Quantity | 4 |
| Rack Mounting Kit | Included |
| Included Items |
| Cables | 1 x console cable, 2 x AC power cable |
| Included Accessories | 4 rubber feet |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 16.33 lbs |
| Width | 17.3 inch |
| Depth | 13.8 inch |
| Physical Characteristics |
| Color Category | White |
| Certifications & Listings |
| Compliant Standards | BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
