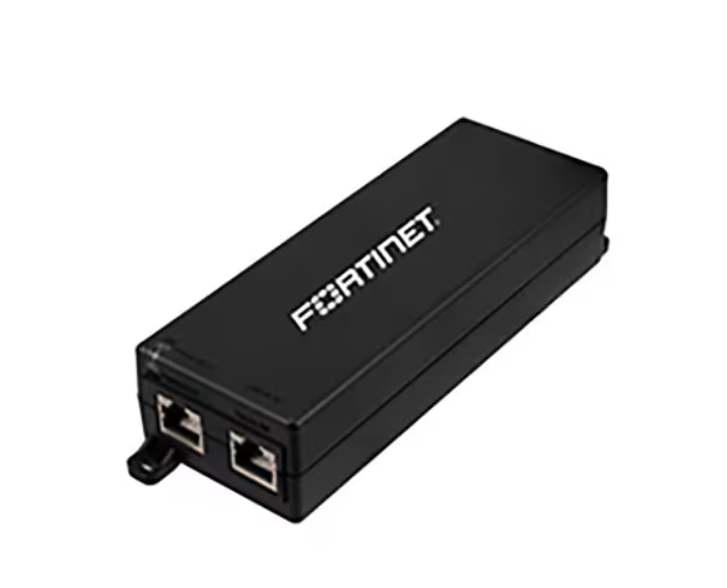

Fortinet Single Port Gigabit PoE Injector for FortiAP Access Point
Quick tech specs
- Compatible with Fortinet FortiAP and FortiAP-U Access Point
- IEEE 802.3bt Compliant
- Single Port
- Includes 60W 2.5/5/10 Gigabit Ethernet (GE) PoE
1,599.00 د.إ
Know your gear
The GPI-145 utilizes an intelligent design to automatically supply power to only those devices that can accept power over the Ethernet connection. It ensures that legacy non-802.3af/802.3at/802.3bt units can continue to operate.
| Category | Details |
|---|
| Overview |
| Brand | Fortinet |
| Product Line | Fortinet |
| Manufacturer | Fortinet |
| Network & Communication |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 |
| Power Over Ethernet (PoE) | PoE |
| Connectivity |
| Interface Provided | 1 x 1/2.5/5/10 Gigabit LAN – RJ-45 |
| Power |
| Emergency Power Off | Midspan, On/off indicator, Overload indicator |
| Frequency | 50 – 60 hertz |
| Output Connector Quantity | 1 |
| Power Output Connectors Details | 1 x RJ-45 – 55 V 60 W |
| Power Provided | 60 watt |
| Provided Voltage | DC 55 volt |
| Required Voltage | AC 100 – 240 volt |
| Technical Information |
| Form Factor (Power Device) | External |
| Max Operating Temperature | 104 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| MTBF | 200,000 Hours |
| Operating Humidity | 0 – 90% (non-condensing) |
| Product Information |
| Features | Shielded RJ45 ports, Up to 100 m distance |
| Packaged Quantity | 1 |
| Product Type | PoE Injector |
| Subcategory | Power converters, splitters and accessories |
| Included Items |
| Cables | Power cable – external |
| Dimensions & Weight |
| Height | 1.3 inch |
| Weight | 11.64 ounce |
| Width | 2.1 inch |
| Depth | 5.5 inch |
| Physical Characteristics |
| Color Category | Black |
| Certifications & Listings |
| Compliant Standards | EIA/TIA 568A, EIA/TIA 568B, EN 55032 Class B, EN 62368-1, EN55024, FCC Part 15 B, IEC 62368-1, RoHS, UL 62368-1, VCCI, WEEE |
