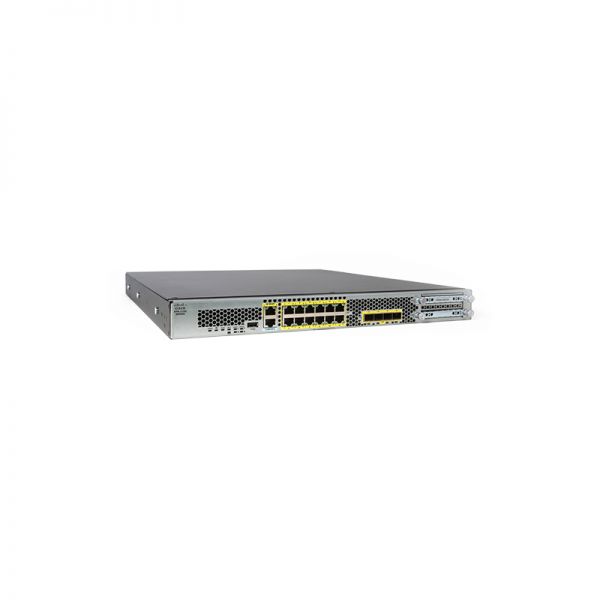

FPR2140-ASA-K9 – Cisco Firepower 2100 Series Appliances
Cisco Firepower 2140 ASA Appliance. 1U. 1 x NetMod Bay
د.إ395,999.00
FPR2140-ASA-K9 Overview
The Cisco Firepower 2100 Series is a family of four threat-focused NGFW security platforms that deliver business resiliency through superior threat defense. It offers exceptional sustained performance when advanced threat functions are enabled. These platforms uniquely incorporate an innovative dual multicore CPU architecture that optimizes firewall, cryptographic, and threat inspection functions simultaneously. The seriesā firewall throughput range addresses use cases from the Internet edge to the data center. Network Equipment Building Standards (NEBS)- compliance is supported by the Cisco Firepower 2100 Series platform.Ā The FPR2140-ASA-K9 stands for Cisco Firepower 2140 ASA Appliance, 1RU, 1 x Network Module Bays.
Quick Spec
Table 1 shows the quick spec.
| ProductĀ Number | FPR2140-ASA-K9 |
| Product Description | Cisco Firepower 2140 ASA Appliance, 1RU,1 x Network Module Bays |
| ASA Performance and Capabilities on Firepower Appliances | |
| Stateful inspection firewall throughput | 20Ā Gbps |
| Stateful inspection firewall throughput (multiprotocol) | 10Ā Gbps |
| Concurrent firewall connections | 3 million |
| New connections per second | 75000 |
| Hardware Specifications | |
| Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
| Form factor (rack units) | 1RU |
| I/O module slots | 1 NM slot |
| Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces |
| Network modules | (FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network module |
| Maximum number of interfaces | Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module with 8x10G SFP+) |
| Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
Product Details
Note:
| ā | Power LED |
| ā” | Locator beacon |
| ā¢ | System LEDs |
| ā£ | Type A USB 2.0 port |
| ā¤ | RJ-45 console port |
| ā„ | Gigabit Ethernet management port:
lĀ Firepower Threat DefenseāManagement 0 (also referred to as Management 1/1 and Diagnostic 1/1) lĀ ASAāManagement 1/1 |
| ā¦ | 12 RJ-45 1G/100M/10M auto duplex/auto MDI-X Base-T ports
Ethernet 1/1 through 1/12 labeled top to bottom, left to right |
| ā§ | Pullout label card with chassis serial number |
| āØ | SSD 1 |
| ā© | 4 fixed SFP+ (1G/10G) ports
Fiber ports 1/13 through 1/16 labeled left to right |
| āŖ | Network Module (network module slot 1) |
| ā« | SSD 2 |
Note:
| ā | Power on/off switch |
| ā” | Power supply module 1 FAIL LED |
| ā¢ | Power supply module 2 FAIL LED |
| ā£ | Power supply module 1 |
| ā¤ | Power supply module 1 OK LED |
| ā„ | Fan tray |
| ā¦ | Power supply module 2 |
| ā§ | Power supply module 2 OK LED |
| āØ | 2-post grounding lug |
FPR2140-ASA-K9 Specification
FPR2140-ASA-K9Ā Specification |
||
| Product Number | FPR2140-ASA-K9 | |
| Product Description | Cisco Firepower 2140 ASA Appliance, 1RU, 1 x Network Module Bays | |
|
ASA Performance and Capabilities on Firepower Appliances |
||
| Stateful inspection firewall throughput | 20Ā Gbps | |
| Stateful inspection firewall throughput (multiprotocol) | 10Ā Gbps | |
| Concurrent firewall connections | 3 million | |
| New connections per second | 75000 | |
| IPsec VPN throughput (450B UDP L2L test) | 2Ā Gbps | |
| IPsec/Cisco AnyConnect/Apex site-to-site VPN peers | 10000 | |
| Maximum number of VLANs | 1024 | |
| Security contexts (included; maximum) | 2; 40 | |
| High availability | Active/active and active/standby | |
| Scalability | VPN Load Balancing | |
| Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator | |
| Adaptive Security Device Manager | Web-based, local management for small-scale deployments | |
|
Hardware Specifications |
||
| Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) | |
| Form factor (rack units) | 1RU | |
| I/O module slots | 1 NM slot | |
| Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces | |
| Network modules | (FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network module | |
| Maximum number of interfaces | Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module with 8x10G SFP+) | |
| Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) | |
| Serial port | 1 x RJ-45 console | |
| USB | 1 x USB 2.0 Type-A (500mA) | |
| Storage | 1x 200 GB, 1x spare slot (for MSP) | |
| Power supplies | Configuration | Dual 400W AC. Single/dual 350W DC optional |
| AC input voltage | 100 to 240V AC | |
| AC maximum input current | < 6A at 100V | |
| AC maximum output power | 400W | |
| AC frequency | 50 to 60 Hz | |
| AC efficiency | >89% at 50% load | |
| DC input voltage | -48V to -60VDC | |
| DC maximum input current | < 12.5A at -48V | |
| DC maximum output power | 350W | |
| DC efficiency | >88% at 50% load | |
| Redundancy | 1+1 AC or DC with dual supplies | |
| Fans | 1 hot-swappable fan module (with 4 fans) | |
| Noise | 56 dBA @ 25C
77 dBA at highest system performance. |
|
| Rack mountable | Yes. Mount rails included (4-post EIA-310-D rack) | |
| Weight | 21 lb (9.53 kg) 2 x power supplies, 1 x NM, 1 x fan module, 2x SSDs | |
| Temperature: operating | 32 to 104Ā°F (0 to 40Ā°C) | |
| Temperature: nonoperating | -4 to 149Ā°F (-20 to 65Ā°C) | |
| Humidity: operating | 10 to 85% noncondensing | |
| Humidity: nonoperating | 5 to 95% noncondensing | |
| Altitude: operating | 10,000 ft (max) | |
| Altitude: nonoperating | 40,000 ft (max) | |
