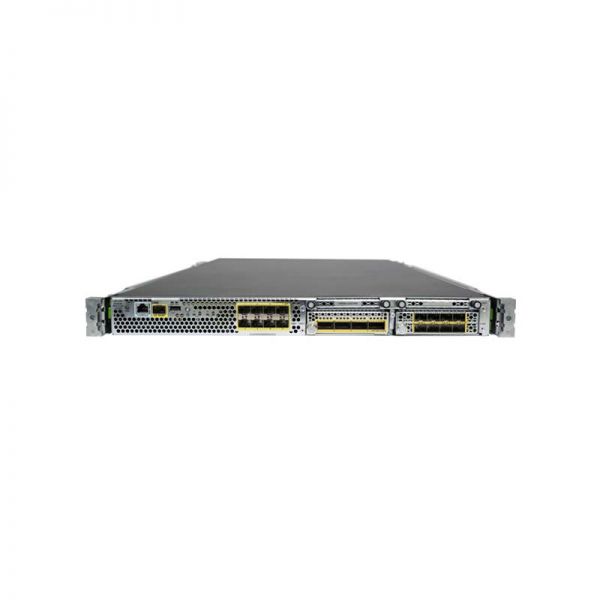

FPR4120-NGIPS-K9 – Cisco Firepower 4100 Series Appliances
|
Cisco Firepower 4120 NGIPS Appliance. 1U. 2 x NetMod Bays
|
AED749,999.00
FPR4120-NGIPS-K9 Overview
The Cisco Firepower 4100 Series is a family of four threat-focused NGFW security platforms. Their throughput range addresses data center and internet edge use cases. They deliver superior threat defense, at faster speeds, with a smaller footprint. Cisco Firepower 4100 Series supports flow-offloading, programmatic orchestration, and the management of security services with RESTful APIs. FPR4120-NGIPS-K9Ā stands for Cisco Firepower 4120 NGIPS Appliance. 1U. 2 x NetMod Bays.
Quick Spec
Table 1 shows the quick spec.
| ProductĀ Number | FPR4120-NGIPS-K9 |
| Product Description | Cisco Firepower 4120 NGIPS Appliance. 1U. 2 x NetMod Bays |
| Performance and Capabilities on Firepower Appliances | |
| Stateful inspection firewall throughput | 60Ā Gbps |
| Stateful inspection firewall throughput (multiprotocol) | 30Ā Gbps |
| Concurrent firewall connections | 15Ā million |
| Firewall latency (UDP 64B microseconds) | 3.5 |
| New connections per second | 250,000 |
| IPsec VPN throughput (450B UDP L2L test) | 10Ā Gbps |
| IPsec/Cisco AnyConnect/Apex site-to-site VPN peers | 15,000 |
| Maximum number of VLANs | 1024 |
| Hardware Specifications | |
| Dimensions (H x W x D) | 1.75 x 16.89 x 29.7 in. (4.4 x 42.9 x 75.4 cm) |
| Form factor (rack units) | 1RU |
| Security module slots | – |
| I/O module slots | 2 |
FPR4120-NGIPS-K9 Specification
FPR4120-NGIPS-K9 Specification |
||
| Product Number | FPR4120-NGIPS-K9 | |
| Product Description | Cisco Firepower 4120 NGIPS Appliance. 1U. 2 x NetMod Bays | |
|
Cisco Firepower 4120 Specification |
||
| Performance and Capabilities on Firepower Appliances | ||
| Stateful inspection firewall throughput | 60Ā Gbps | |
| Stateful inspection firewall throughput (multiprotocol) | 30Ā Gbps | |
| Concurrent firewall connections | 15Ā million | |
| Firewall latency (UDP 64B microseconds) | 3.5 | |
| New connections per second | 250,000 | |
| IPsec VPN throughput (450B UDP L2L test) | 10Ā Gbps | |
| IPsec/Cisco AnyConnect/Apex site-to-site VPN peers | 15,000 | |
| Maximum number of VLANs | 1024 | |
| Security contexts (included; maximum) | 10; 250 | |
| High availability | Active/active and active/standby | |
| Clustering | Up to 16 appliances | |
| Scalability | VPN Load Balancing, Firewall Clustering | |
| Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator | |
| Adaptive Security Device Manager | Web-based, local management for small-scale deployments | |
| Hardware Specifications | ||
| Dimensions (H x W x D) | 1.75 x 16.89 x 29.7 in. (4.4 x 42.9 x 75.4 cm) | |
| Form factor (rack units) | 1RU | |
| Security module slots | – | |
| I/O module slots | 2 | |
| Supervisor | Cisco Firepower 4000 Supervisor with 8 x 10 Gigabit Ethernet ports and 2 Network Module (NM) slots for I/O expansion | |
| Network modules | ā Ā 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network modules
ā Ā 4 x 40 Gigabit Ethernet Quad SFP+ network modules ā Ā 8-port 1Gbps copper, FTW (fail to wire) Network Module Note: Firepower 4100 Series appliances may also be deployed as dedicated threat sensors, with fail-to-wire network modules. Please contact your Cisco representative for details. |
|
| Maximum number of interfaces | Up to 24 x 10 Gigabit Ethernet (SFP+) interfaces; up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules | |
| Integrated network management ports | 1 x Gigabit Ethernet copper port | |
| Serial port | 1 x RJ-45 console | |
| USB | 1 x USB 2.0 | |
| Storage | 200 GB | |
| Power supplies | Configuration | Single 1100W AC, dual optional. Single/dual 950W DC optional |
| AC input voltage | 100 to 240V AC | |
| AC maximum input current | 13A | |
| AC maximum output power | 1100W | |
| AC frequency | 50 to 60 Hz | |
| AC efficiency | >92% at 50% load | |
| DC input voltage | -40V to -60VDC | |
| DC maximum input current | 27A | |
| DC maximum output power | 950W | |
| DC efficiency | >92.5% at 50% load | |
| Redundancy | 1+1 | |
| Fans | 6 hot-swappable fans | |
| Noise | 78 dBA | |
| Rack mountable | Yes, mount rails included (4-post EIA-310-D rack) | |
| Weight | 36 lb (16 kg): 2 x power supplies, 2 x NMs, 6x fans; 30 lb (13.6 kg): no power supplies, no NMs, no fans | |
| Temperature: operating | 32 to 104Ā°F (0 to 40Ā°C) |
|
| Temperature: nonoperating | -40 to 149Ā°F (-40 to 65Ā°C) | |
| Humidity: operating | 5 to 95% noncondensing | |
| Humidity: nonoperating | 5 to 95% noncondensing | |
| Altitude: operating | 10,000 ft (max) or NEBS operation (see below) | |
| Altitude: nonoperating | 40,000 ft (max) | |
| NEBS operation (FPR 4120 only) | Operating altitude: 0 to 13,000 ft (3960 m)
Operating temperature: Long term: 0 to 45Ā°C, up to 6,000 ft (1829 m) Long term: 0 to 35Ā°C, 6,000 to 13,000 ft (1829 to 3964 m) Short term: -5 to 50Ā°C, up to 6,000 ft (1829 m) |
|
