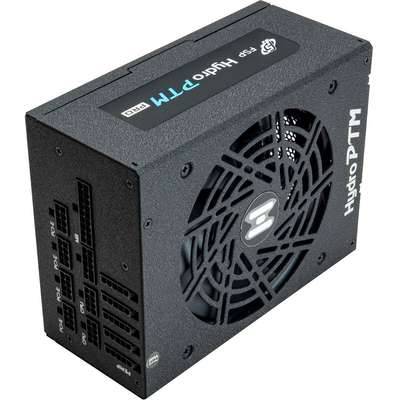

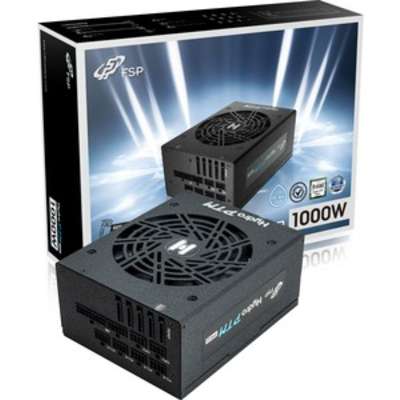

FSP Group FSP PS HPT2-1000M Hydro PTM Pro Series 1000W Fully Modular 80+ Platinum
- Intel Latest CPU ready
- Global Safety Approved
- High efficiency ? 92%
- Powerful +12V single rail design
- Quiet and durable cooling
- Full Japanese electrolytic capacitors
- Compliance with newest ATX 12V V2.52 & EPS 12 v2.92 standards
- Intelligent fan speed control circuit design
- Full protections OCP,OVP, SCP,OPP,OTP, UVP
- High Wattages with 80PLUS® Platinum Certification
AED1,599.00
Conformal Coating ApplicationOff-Wet, Off-Dust and Off-Stain
The Hydro PTM PRO series is covered with a conformal coating which protects it from dust, stains, and humidity. The Hydro PTM PRO conformal coating is guaranteed to offer better and reliable performance in harsh environments and is tested to work in environments up to 95% relative humidity.

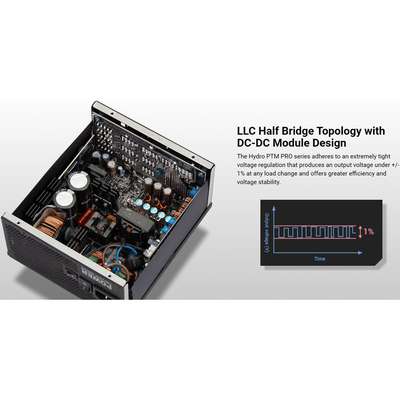

LLC Full-Bridge Topology with DC-DC Module Design
The HYDRO PTM Pro series adheres to an extremely tight voltage regulation that produces an output voltage under +/- 1% at any load change and offers superior efficiency and voltage stability.
Fully Modular Design for Quick and Easy Installation
The fully modular design simplifies installation and allows you to use only the cables you need for a cleaner and tidier build.

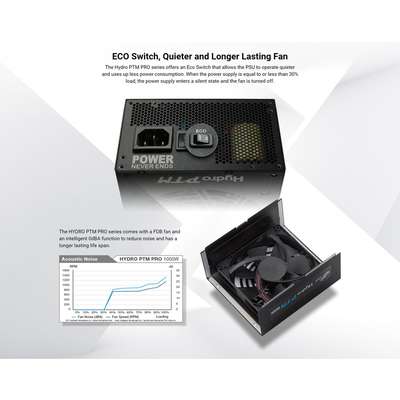

ECO Switch, Quieter and Longer Lasting Fan
The Hydro PTM PRO series offers an Eco Switch that allows the PSU to operate quieter uses up less power consumption. When the power supply is equal to or less than 30% load, the power supply enters a silent state and the fan is turned off.
The HYDRO PTM Pro series comes with FDB fan and an intelligent 0dBA function to reduce noise and has a longer lasting life span.
80 Plus® Platinum Certification
The Hydro PTM Pro series come with 80 Plus Platinum Certification, which means the power supply produces less heat and has a lower operating cost. The power supply is guaranteed to operate at a minimum of 92% efficiency at 50% load of PSU rated power.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | FSP PS HPT2-1000M Hydro PTM Pro Series 1000W Fully Modular 80+ Platinum |
| Product Line | Hydro PTM PRO |
| Product Model | HPT2-1000M |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 92% |
| Number of Fans | 1 |
| Modular | Yes |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC, 5 V DC, 12 V DC |
| Output Voltage Detail | 3.3 V DC @ 20 A 5 V DC @ 20 A 12 V DC @ 83.33 A 12 V DC @ 300 mA 5 V DC @ 3 A |
| Output Current | 20 A, 83.33 A, 300 mA, 3 A |
| Output Power | 1000 W |

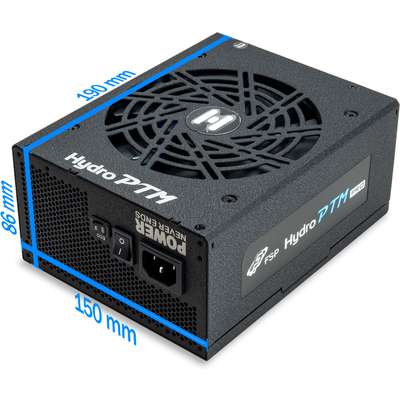

| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.4″ |
| Width | 7.5″ |
| Depth | 5.9″ |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Platinum |
| Other Information | |
| Product Family | Hydro PTM PRO |
