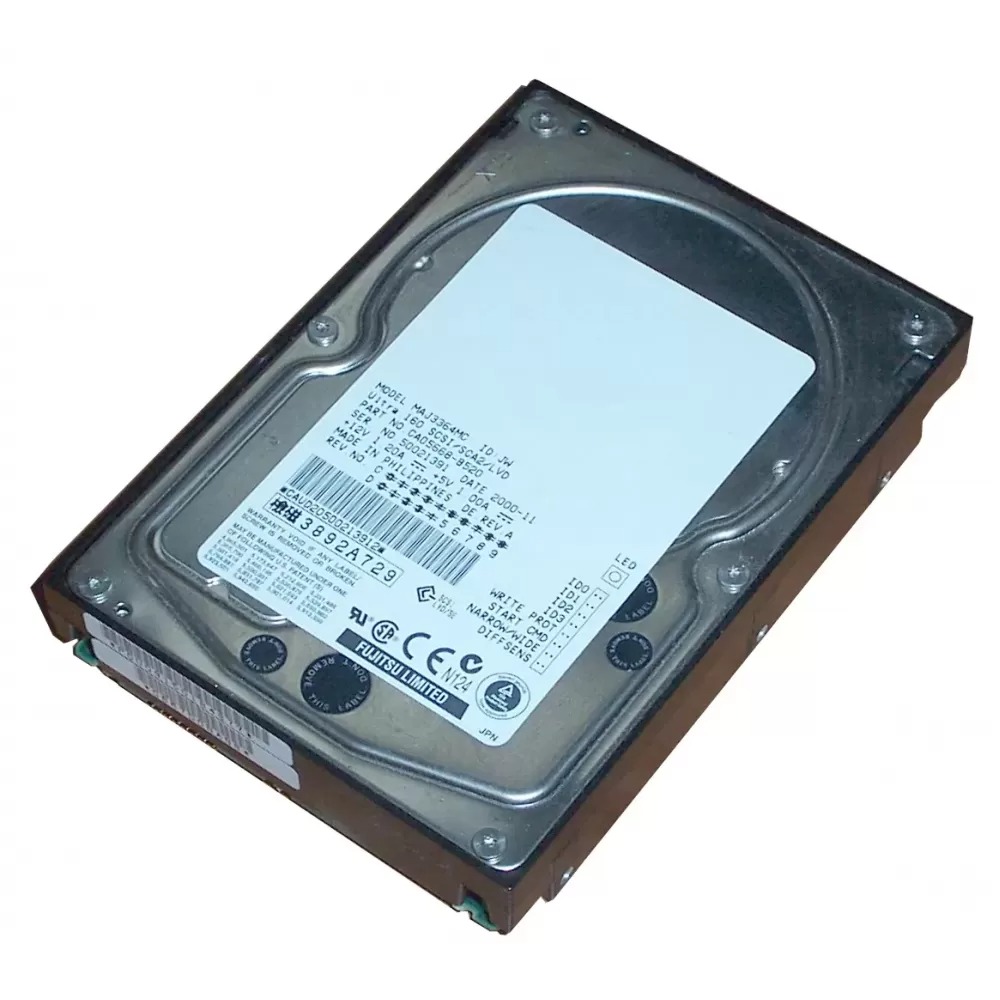

Fujitsu MAJ 36GB 10K U160 80pin SCSI Hard Drive MAJ3364MC – Refurbished
Fujitsu’s Enterprise 10K series delivers industry leading performance and sets uncompromising standards with capacity points up to 36.4GB and average seek time of 4.7 ms. Through technology ownership, Fujitsu is able to control every aspect of the product, including initial design, key components, critical processes, final assembly and test. Fujitsu’s expertise in key components and strong commitment to excellence work together to produce products that deliver not only outstanding performance and reliability, but also low overall cost of ownership
| FUNCTIONAL SPECIFICATIONS | ||
| Formatted storage capacity | 36.4 GB | |
| Bytes per sector | 512 bytes | |
| PHYSICAL SPECIFICATIONS | ||
| Track capacity (formatted) | 188,928-293,888 bytes | |
| Cylinders | 14,792 | |
| Sectors per track | 369 to 574 | |
| FUNCTIONAL SPECIFICATIONS | ||
| Seek time (track to track) | 0.6/0.8 (R/W) ms. typ. | |
| Seek time (average) | 4.7/5.2 (R/W) ms. typ. (read/write) | |
| Seek time (full track) | 11.0/12.0 (R/W) ms. typ. (read/write) | |
| Average latency time | 2.99 ms. | |
| Rotational speed | 10,025 RPM | |
| Interface | 68 pin Wide | |
| Data buffer size | 4096 KB | |
| Data transfer rate (synchronous) | 160 MB per second | |
| Recording code | 32/34 MEEPRML | |
| Head positioning method | Rotary VCM | |
| Spindle start time | 30 sec.(typ),60 sec.(max) seconds typical | |
| Spindle stop time | 30 seconds typical | |
| PHYSICAL SPECIFICATIONS | ||
| Power requirement Read/write | 17 W typ. | |
| Power requirement Idle (ready) | 11.5 W typ. | |
| Form Factor | 3.5-inch x 1-inch high | |
| Mounting screws | 6#32UNC | |
| Height | 25.4 mm | |
| Width | 101.6 mm | |
| Depth | 146.0 mm | |
| Weight | 0.6 to 0.75 kg | |
| Ambient temperature (operating) | 5 to 50 degrees C | |
| Ambient temperature (non-operating) | -10 to 60 degrees C | |
| Gradient | 15 degrees C per hour | |
| Relative humidity (operating) | 20 to 80 % RH (non-condensing) | |
| Relative humidity (non-operating) | 20 to 80 % RH (non-condensing) | |
| Maximum wet bulb | 29 degrees C (non-condensing) | |
| Vibration (operating) | 0.3 mm(5 to 20 Hz)/0.5 G(20 to 300 Hz) | |
| Vibration (non-operating) | 3.1 mm(5 to 20 Hz)/5.0G(20 to 300 Hz) | |
| Shock (operating) | 20 G max.(2ms) | |
| Shock (non-operating) | 200 G max.(2ms) | |
| Altitude (operating) | 3,000 m (max) metres | |
| Altitude (non-operating) | 12,000 m (max) metres | |
| Acoustic noise (at 1 metre idle) | 4.0 (ready) 3.9 (ready) bels | |
| RELIABILITY | ||
| MTBF (Mean Time Between Failures) | 1,000,000 power-on hours power on hours | |
| MTTR (Mean Time To Repair) | 30 minutes or less | |
| Component life (hours) | 5 year power on hours | |
| Unrecoverable errors | 10 per 10^15 bits read bits read | |
| Seek errors | 10 per 10^8 bits seek seeks | |
