Fujitsu MAX MAX3036NC SCSI Hard Drives


299.00 د.إ

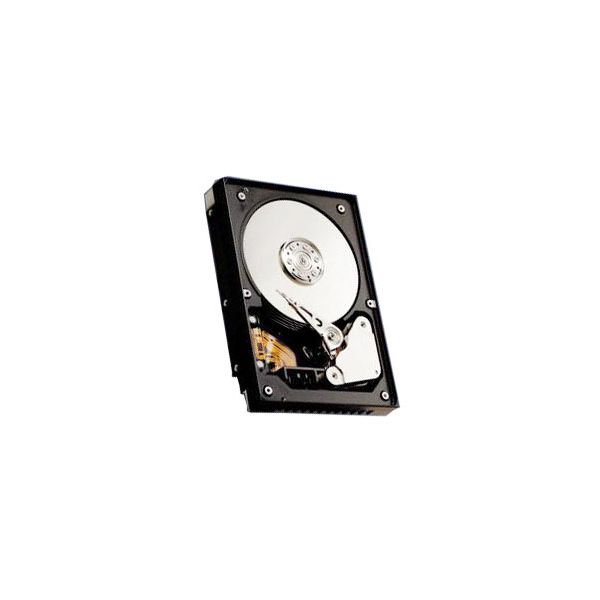

Fujitsu MAX MAX3036NC 36GB 15K U320 80pin SCA-2 SCSI Hard Drive – Refurbished

Thirty-five years ago Fujitsu was manufacturing 14-inch drives for mainframes. Today we’re offering you some of the fastest enterprise 3.5-inch hard disk drives in the industry. Because of our technology expertise and heritage, we can provide your customers with high-capacity and reliable storage options for the most demanding of applications.

Fujitsu’s 3.5-inch 15K RPM enterprise hard disk drives offer a host of innovations: their 147GB 4-platter configuration means lower power consumption, better reliability, and higher data rates. These new enterprise hard disk drives dramatically increase speed and capacity. Additionally, they are equipped with 68Pin or 80Pin U320 SCSI interfaces and 2Gbps Fibre Channel.

This makes them perfect for today’s most challenging storage environments. Fujitsu’s hard disk product variations and accelerated performance allow greater flexibility for system designers making rack-optimized or tower servers, disk systems, RAID, or digital video systems.

But they’re not only flexible — they’re powerful. Fujitsu has substantially increased the maximum internal data-transfer rate on the hard disk drives, reflecting a 24% improvement over previous generation drives.

The time is now to deliver versatile, reliable, and robust hard disk drives to your customers for their most demanding storage application needs.

Weight 0.750 kg
Specifications
Model number MAX3036NC
Model Name MAX
Formatted Capacity 36.7 Gbytes
Rotational Speed 15,000 rpm
Default Buffer (cache) Size 8Ā Mbytes
Number of Discs (physical) 1
Number of Heads (physical) 2
Performance
Average Seek Time, Read 3.3 msec typical
Average Seek Time, Write 3.8 msec typical
Track-to-Track Seek, Read 0.2 msec typical
Track-to-Track Seek, Write 0.4 msec typical
Average Latency 2 msec
Physical
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 25.4 mm
Width 101.6 mm
Length 146.0 mm
Weight 0.750 kg
Electrical
Power (Idle) 11.5 watts
Startup Current (12VDC +/- 5%) 2.5 amps
Startup Current (5VDC +/- 5%) 0.7 amps
Environmental
Max Operating Shock (2-msec) 65 Gs
Max Nonoperating Shock (2-msec) 250 Gs
Operating Vibration (max) 1.0 Gs
Nonoperating Vibration (max) 5.0 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Acoustical
Acoustics, Idle (sound power, typ) 3.6 Bels
Reliability
MTBF (Hours) 1,200,000 hours
Nonrecoverable Read Errors 1 per 10^15 bits read
