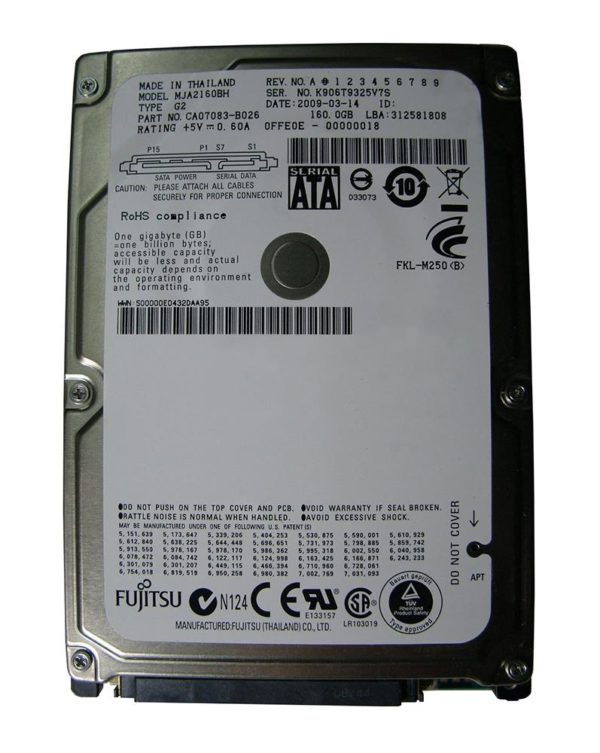

Fujitsu MJA2160BH 160GB 5.4K 2.5 inch SFF SATA Hard Drive – Refurbished OEM
Key Advantages:
- 5400 rpm drives deliver higher performance
- 160GB in 9.5 mm height
- Ā Low power consumption lets NBs work
longer - Ā Super-quiet Seek Technology
Applications:
- Notebooks and small form factor PCs
- External Storage
- And more digital applications
DPN: G394R 0G394R
| Weight | 0.117 kg |
|---|
| Performance Specifications | ||
| Rotational Speed | 5,400 RPM (nominal) | |
| Buffer Size | 8 MB | |
| Average Latency | 5.50 ms (nominal) | |
| Seek Times | ||
| Read Seek Time | 12.0 ms | |
| Track-To-Track Seek Time | 2.0 ms (average) | |
| Transfer Rates | ||
| Buffer To Host (Serial ATA) | 3.0 Gb/s (Max) | |
| Transfer Rate (Buffer To Disk) | 600 Mbits/s (Max) | |
| Physical Specifications | ||
| Capacity | 160Ā GB | |
| Interface | SATA 3.0 Gb/s | |
| Physical Dimensions | ||
| English | ||
| Height | 0.374 Inches Ā±0.008 inch | |
| Length | 3.94 Inches Ā±0.010 inch | |
| Width | 2.75 Ā±0.010 inch | |
| Weight | 0.26 Pounds | |
| Metric | ||
| Height | 9.5 mm Ā±0.20 mm | |
| Length | 100.2 Ā±0.25 mm | |
| Width | 69.85 Ā±0.25 mm | |
| Weight | 0.117 kg | |
| Temperature (English) | ||
| Operating | 32Ā° F to 140Ā° F | |
| Non-operating | -40Ā° F to 149Ā° F | |
| Temperature (Metric) | ||
| Operating | 0Ā° C to 60Ā° C | |
| Non-operating | -40Ā° C to 65Ā° C | |
| Humidity | ||
| Operating | 8-90% RH non-condensing | |
| Non-operating | 5-95% RH non-condensing | |
| Altitude (English) | ||
| Operating | -1,000 feet to 10,000 feet | |
| Non-operating | -1,000 feet to 40,000 feet | |
| Altitude (Metric) | ||
| Operating | -305M to 3,050M | |
| Non-operating | -305M to 12,200M | |
| Vibration | ||
| Operating | ||
| 10-500 Hz, 1.0G (0 to peak) | ||
| 10-500 Hz (0.309 gĀ² / Hz) | ||
| Electrical Specifications | ||
| Sleep | 20 mA | |
| Power Dissipation | ||
| Read/Write | 2.50 Watts | |
| Idle | 0.85 Watts | |
| Standby | 0.25 Watts | |
| Sleep | 0.10 Watts | |
