FWF-60E – Fortinet NGFW Entry-level Series Firewall


AED3,999.00

Model: FWF-60E – Fortinet NGFW Entry-level Series
Detail:
Fortinet FWF-60E, 10 x GE RJ45 ports (including 2 x WAN Ports, 1 x DMZ Port, 7 x Internal Ports), Wireless (802.11a/b/g/n/ac).

FWF-60E Overview

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass — for the industry’s best protection against the most advanced security threats and targeted attacks.

Quick Specs

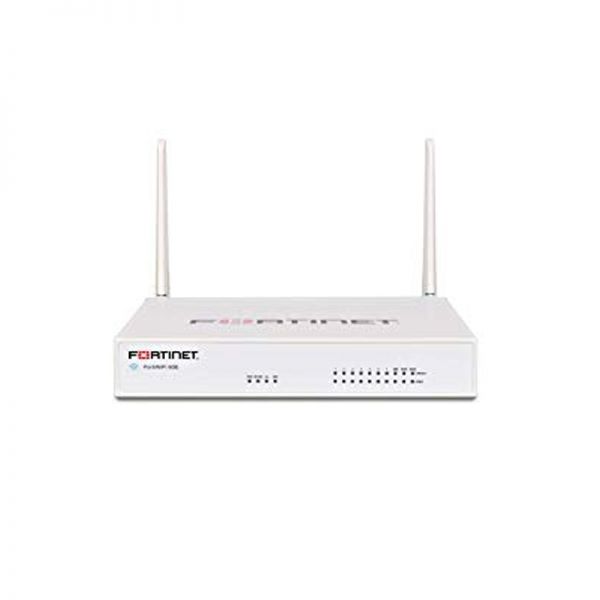

Figure 1 shows the appearance of FWF-60E.
FWF-60E

Table 1 shows the Quick Specs.

Product Code FWF-60E
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 3 / 3 / 3 Gbps
Firewall Latency (64 byte UDP packets) 3 μs
Firewall Throughput (Packets Per Second) 4.5 Mpps
Height x Width x Length (inches) 1.5 x 8.5 x 6.3
Operating Temperature 32–104°F (0–40°C)

Product Details

Figure 2 shows the front panel ofĀ FWF-60E.
FWF-60E front

Figure 3 shows the back panel ofĀ FWF-60E.
FWF-60E back

FWF-60EĀ provides these features:

One Enterprise Firewall Solution across the Extended Enterprise

The FortiGate family of network appliances represents the industry’s broadest range of enterprise firewall platforms. FortiGate is based on FortiASIC, a purpose-built integrated architecture that provides extremely high throughput and exceptionally low latency, while delivering industry-leading security effectiveness and consolidation which is routinely validated by independent real-world tests. Targeted for distributed enterprises, the FortiGate 60E series contains consolidated security and networking functionality, various connectivity options along with Industry’s best performance in a compact form factor.

3G/4G WAN Connectivity

The FortiGate/FortiWiFi 60E Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Superior Wireless Coverage

A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 60E and provides speedy 802.11ac coverage on both 2.4 GHz and 5 GHz bands. The dualband chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.

SKU: FWF-60E Category: Tag:

FWF-60E Specification



FWF-60E specification

System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 3 / 3 / 3 Gbps
Firewall Latency (64 byte UDP packets) 3 μs
Firewall Throughput (Packets Per Second) 4.5 Mpps
Concurrent Sessions (TCP) 1.3 Million
New Sessions/Second (TCP) 30,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte packets) 2 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 500
SSL-VPN Throughput 150 Mbps
Concurrent SSL-VPN Users (Recommended Maximum) 100
IPS Throughput (HTTP / Enterprise Mix)Ā 1 1,400 / 350 Mbps
SSL Inspection ThroughputĀ 2 340 Mbps
Application Control ThroughputĀ 3 550 Mbps
NGFW ThroughputĀ 4 250 Mbps
Threat Protection ThroughputĀ 5 180 Mbps
CAPWAP ThroughputĀ 6 1.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode) 10 / 5
Maximum Number of FortiTokens 100
Maximum Number of Registered FortiClients 200
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.5 x 8.5 x 6.3
Height x Width x Length (mm) 38 x 216 x 160
Environment
Power Required 100–240V AC, 50–60 Hz
Maximum Current 110 V / 1.5 A, 220 V / 0.75 A 110 V / 1.5 A, 220 V / 0.75 A 115V AC / 0.9A,
230V AC / 0.6A
115V AC / 0.9A,
230V AC / 0.6A
Power Consumption (Average / Maximum) 11.7 / 14 W 12.6 / 15.2 W 11.9 / 14.3 W 13 / 16 W
Heat Dissipation 40 BTU/h 52 BTU/h 49 BTU/h 55 BTU/h
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 20–90% non-condensing
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance
FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
