Galaxy Audio ECM Wireless Microphone System

Add to Wishlist

999.00 د.إ

Add to Wishlist
Key Features
  • Frequency Band D
  • HH52 Handheld Wireless Transmitter
  • ECMR UHF Receiver
  • 16 Selectable Channels
  • Diversity Antennas
  • IR Sync

Galaxy Audio ECMR/HH52D Overview

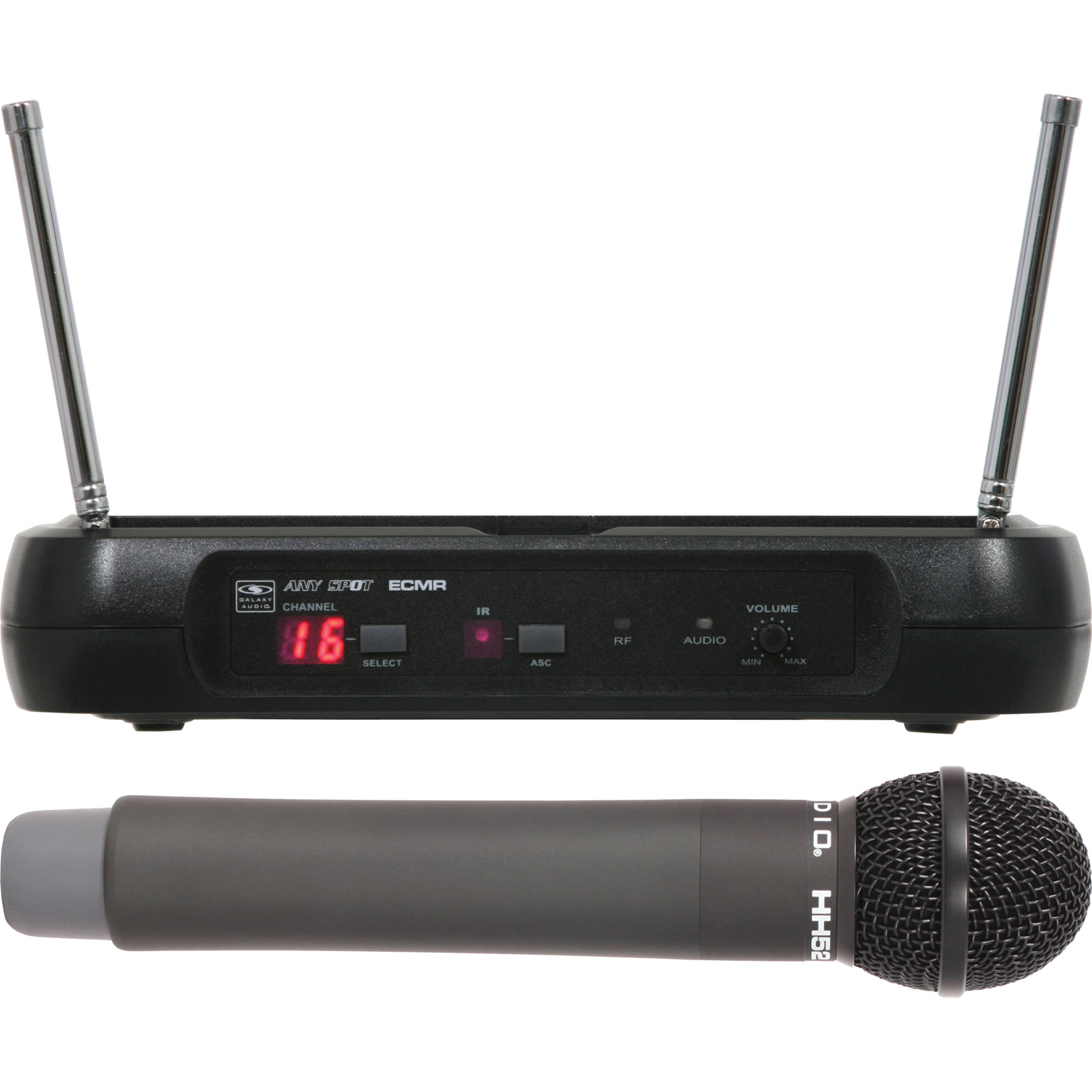

The Galaxy Audio ECM Wireless Microphone System is an affordable, wireless UHF microphone system ideal for general speech applications, presentations, DJs, small performances and more. The system features the ECMR receiver with 16 user selectable channels and diversity reception. Infrared (IR) channel sync is possible between the receiver and transmitter. This system includes the HH52 handheld microphone/transmitter, with a dynamic element and cardioid polar pattern.

16 Selectable Channels
Output Volume Control
AF Level Indicator
IR Sync
Squelch Adjustment
XLR / ¼” Outputs
Rugged Plastic Casing
SKU: ECMR/HH52D Category: Tag:

Galaxy Audio ECMR/HH52D Specs

System
Type of System Diversity Handheld UHF
RF Carrier Frequency Range 655-679MHz
Approx. Working Range 150′ (50m)
Overall Frequency Response 60Hz to 16kHz +/- 3dB
THD +/- 30kHz Deviation 1kHz tone
Dynamic Range >90dB A-weighted
# Of Channels 16 Channels
Receiver
Type of Receiver ECMR Diversity

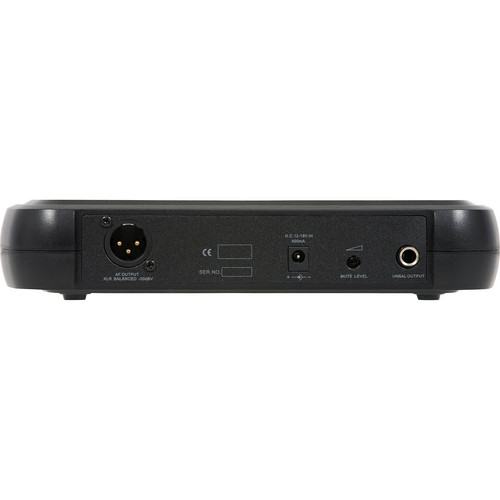

Type of Outputs XLR and 1/4″ Phone
Power Requirements 13.5VDC at 300mA, Supplied by External Power Supply
Battery Type/Approx. Life None – AC power only
Display Dual Digit LED
Antenna Type Two band dependent antennas
Dimensions 1.75 x 9.25 x 4.75″ (44.45 x 235 x 121mm) (HxWxD)
Weight 0.85 lbs. (0.39 kg)
Transmitter
Type of Transmitter HH52
Type of Microphone Dynamic
Polar Pattern Cardioid
Interchangeable Mic Heads No
Battery Type/Approx. Life AA Size Alkaline Batteries
Life: 8 Hours
Mute Switch not specified by manufacturer
Level Control High / Low RF Power
Antenna Type Internal
Display Backlit LCD
Dimensions 9.8 x 2.1″ (250 x 53mm) (Length x Diameter)
Weight 9.5 oz (270 g)
Packaging Info
Package Weight 3.25 lb
Box Dimensions (LxWxH) 17.6 x 11.3 x 3.6″
