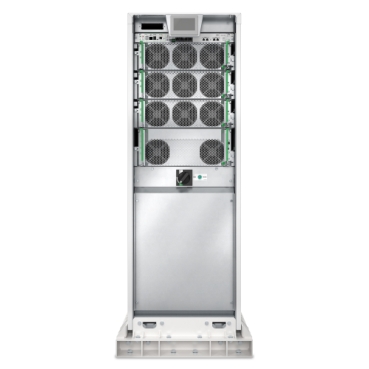

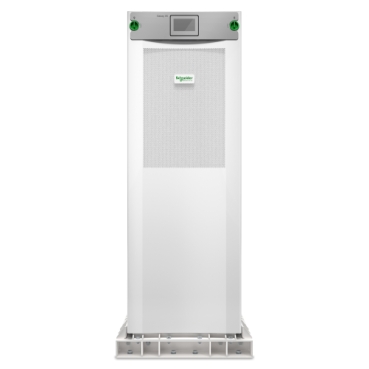

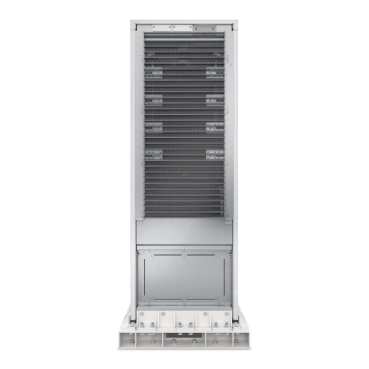

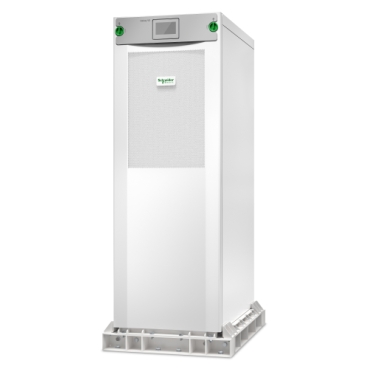

Galaxy VS UPS 150kW 400V for external batteries, halogen-free cables, marine certified, Start-up 5×8

Add to Wishlist

AED363,099.00

Add to Wishlist

UPS Specifications Table

Category Specification
Overview 150kW, 400V 3-phase UPS, fast deployment, low TCO, edge/data centers/industrial use. Marine certified. Includes 5×8 start-up service and halogen-free cables.
Lead Time Usually Ships within 2 Weeks

Main Electrical Specs

Parameter Value
Main Input Voltage 400 V 3-phase
Other Input Voltage 380 V, 415 V
Main Output Voltage 400 V 3-phase
kW Rating 150 kW
Rated Power in VA 150 kVA

Battery & Runtime

Parameter Value
Battery Type External battery system, Li-Ion, VRLA
Battery Voltage 480–576 VDC
End of Discharge Voltage 384 VDC
Max Battery Current (End of Discharge) 407 A
Battery Power in VAH 0 VAh (no internal runtime)
Extendable Runtime 0

Included Equipment

Item
Dust filter
EcoStruxure IT ready (UPS)
Installation guide
Integrated network management
Power modules ship installed
Start-Up Service

Product Range

Parameter Value
Range of Product Galaxy VS
Range Compatibility Galaxy VS

General Characteristics

Parameter Value
Bypass Voltage Tolerance +/- 10%
Redundant No
Product Type Uninterruptible Power Supply (UPS)

Physical Characteristics

Parameter Value
Color White
Height 58.46 in (148.5 cm)
Width 2.05 in (52.1 mm)
Depth 33.35 in (84.7 cm)
Product Weight 639.3 lb (290 kg)
USB Compatible No

Input Specs

Parameter Value
Input Frequency 40–70 Hz
Input Voltage Range (Full Load) 340–460 V
Max Input Current per Phase 270 A
Short Circuit Withstand (Icw) 65 kA
Input Total Harmonic Distortion < 3% at full load
Load Power Factor 0.7 leading to 0.7 lagging

Output Specs

Parameter Value
Max Configurable Power (Watts) 150 kW
Output Frequency 50/60 Hz (sync or +/-0.1% not synced)
Crest Factor 2.5
Waveform Type Sine wave
Output Voltage Tolerance +/-1% after 50ms
Output Voltage THD <1% linear, <5% non-linear load
Overload Operation 10 min @ 125%, 60 sec @ 150%
Bypass Type Built-in Static Bypass
Max Configurable Power (VA) 150 kVA

Conformance Standards

Standard
EN/IEC 62040-1
EN/IEC 62040-2
FCC Part 15 Class A
IEC 60721-4-2 Level 2M2
UL 1778 5th Edition

Environmental Conditions

Parameter Value
Operating Temperature 32–104 °F (0–40 °C)
Operating Relative Humidity 0–95% non-condensing
Operating Altitude 0–3300 ft
Storage Temperature -13–131 °F (-25–55 °C)
Storage Relative Humidity 10–80% non-condensing
Acoustic Level 68 dBA
Online Thermal Dissipation 16900 Btu/h
IP Degree of Protection IP21
