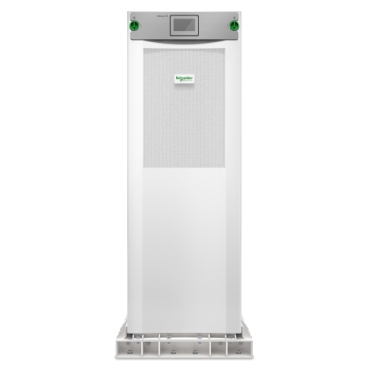

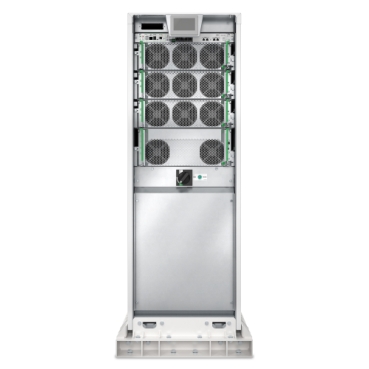

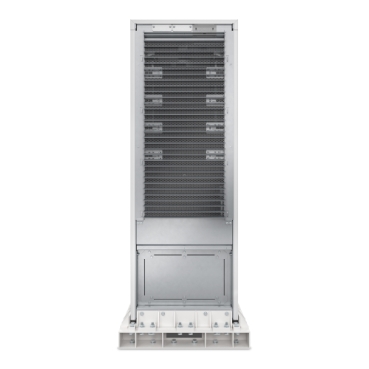

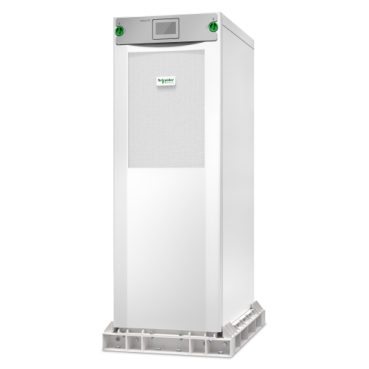

Galaxy VS UPS 80kW 400V for external batteries, halogen-free cables, marine certified, Start-up 5×8

Add to Wishlist

AED242,499.00

Add to Wishlist
Category Parameter Value
Overview Description 80kW, 400V 3-phase UPS; efficient, low TCO; edge/small/medium data centers, critical infrastructure; marine certified; 5×8 start-up; halogen-free cables
Lead Time Usually Ships within 2 Weeks
Main Input Voltage 400 V 3 phase
Other Input Voltages 380 V, 415 V
Output Voltage 400 V 3 phase
kW Rating 80 kW
Power (VA) 80 kVA
Battery Type External battery system, Li-Ion, VRLA
Provided Equipment Dust filter, EcoStruxure IT ready, Installation guide, Integrated network management, Power modules installed, Start-Up Service
Product Range Galaxy VS
Range Compatibility Galaxy VS
Batteries & Runtime Battery Voltage 384-576 VDC
End of Discharge Voltage 307 VDC
End of Discharge Max Battery Current 217 A
Battery Power (VAh) 0 VAh runtime
Extendable Runtime 0
General Bypass Voltage Tolerance ±10%
Redundant No
Type Uninterruptible Power Supply (UPS)
Physical Color White
Height 58.46 in (148.5 cm)
Width 2.05 in (52.1 mm)
Depth 33.35 in (84.7 cm)
Weight 551.2 lb (250 kg)
USB Compatible No
Input Frequency 40 – 70 Hz
Efficiency @ Full Load 340–460 V, 400 V
Max Input Current/Phase 144 A
Max Short Circuit Withstand (ICW) 65 kA
Input THD < 3% full load
Load Power Factor 0.7 leading to 0.7 lagging (no derating)
Output Max Configurable Power 80 kW
Frequency 50/60 Hz (sync to mains or ±0.1% unsynced)
Crest Factor 2.5
Waveform Sine wave
Voltage Tolerance ±1% after 50 ms
Output Voltage THD < 1% (linear load), < 5% (non-linear load)
Overload Capability 10 min @ 125%, 60 sec @ 150%
Bypass Type Built-in Static Bypass
Max Configurable Power (VA) 80 kVA
Conformance Standards EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition
Environmental Operating Temp 32–104 °F (0–40 °C)
Humidity (Operation) 0–95% non-condensing
Altitude (Operation) 0–3300 ft
Storage Temp -13–131 °F (-25–55 °C)
Storage Humidity 10–80% non-condensing
Acoustic Level 68 dBA
Thermal Dissipation 8394 Btu/h
IP Rating IP21
