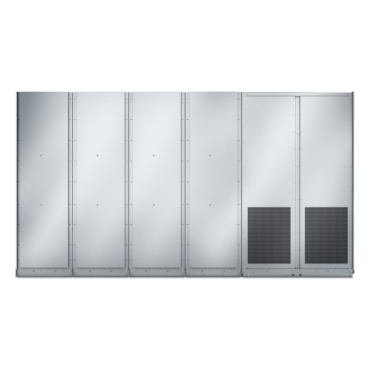

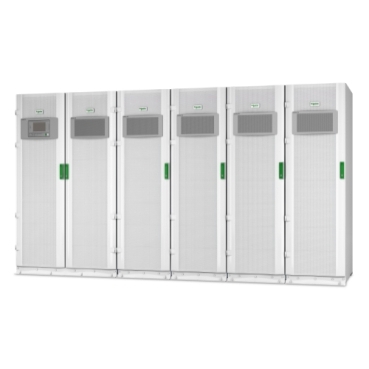

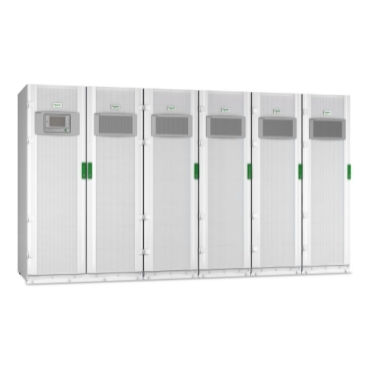

Galaxy VX 800kVA, 400V, Start up 5×8

Add to Wishlist

AED1,833,099.00

Add to Wishlist
Category Detail
Overview A highly efficient, modular, 800 kVA 3-phase UPS for large data centers and mission-critical applications. Up to 99% efficiency in eConversion mode. Includes 5×8 start-up service.
Lead Time Special Order – Call for Quoted Lead Times
Main
Main Input Voltage 400 V 3 phase
Main Output Voltage 400 V 3 phase
kW Rating 800 kW
Rated Power in VA 800 kVA
Battery Type External battery system
Provided Equipment Installation guide, Start-Up Service
Range of Product Galaxy VX
Range Compatibility Galaxy VX
Batteries & Runtime
Battery Voltage 480 V
End of Discharge Battery Voltage 384 V DC
Battery Power in VAH 0 VAh runtime
Extendable Run Time 0
General
Redundant No
Product or Component Type Uninterruptible power supply (UPS)
Physical
Color White
Width 141.73 in (360 cm)
Product Weight 6856.4 lb(US) (3110 kg)
USB Compatible No
Input
Input Frequency 40 – 70 Hz
Max Input Current per Phase 1361 A
Load Power Factor From 0.7 leading to 0.5 lagging without derating
Output
Max Configurable Power (Watts) 800 kW
Output Frequency 50 Hz/60 Hz sync to mains; 50 Hz ±0.1% (not synced)
Crest Factor 3 with THC <5%
Waveform Type Sine wave
Overload Operation 10 min @ 125%, 60 sec @ 150%
Max Configurable Power (VA) 800 kVA
Conformance
Product Certifications C-tick, CE
Standards EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IBC 2012, IEC 62040-4, ISTA 2B
Environmental
Ambient Air Temp. for Operation 32…104 °F (0…40 °C)
Relative Humidity 0…95 %
Operating Altitude 0…3333 ft
Storage Relative Humidity 0…95 % non-condensing
Acoustic Level 69.5 dB
Online Thermal Dissipation 128,620 Btu/h
IP Degree of Protection IP20
