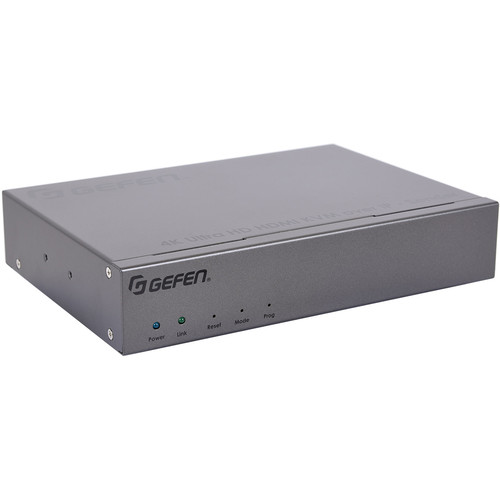

Gefen 4K HDMI KVM over IP Transmitter

Add to Wishlist

د.إ2,399.99

Add to Wishlist

Gefen EXT-UHDKA-LANS Overview

Gefen’s AV over IP solutions continue the tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit local area network.
The Sender unit features a video output for local monitoring of the source. USB, RS-232 2-way IR, and audio can be routed independently between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the Gefen AV over IP products fully address the ever-growing needs of systems integrators.

Key Features
  • Extends HDMI, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
  • Independent video, USB, RS-232, IR, and audio routing
  • Backward-compatible with first generation Gefen AV over IP products
  • Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
  • Enhanced API for added functionality with third-party control systems
  • Built-in web interface, Telnet, and UDP
  • Two-port Gigabit Ethernet switch built into the Receiver unit
  • Mode switch on Sender for sharpness or motion-optimization of image
  • Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
  • Locking power supply connectors
SKU: EXT-UHDKA-LANS-TX Category: Tag:

Gefen EXT-UHDKA-LANS Specs

General
Device Type Video/audio/infrared/serial extender
Form Factor External
Networking
Connectivity Technology Wired
Data Link Protocol HDMI
Max Resolution 2160p @ 60 Hz
Max Video Bandwidth 165 MHz
Max Transfer Distance 328 ft
Features LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, built-in audio de-embedder, Dolby Atmos support, DTS:X support, HD (HBR) audio
Compliant Standards HDCP 1.4, HDCP 2.2
Expansion / Connectivity
Interfaces 1 x HDMI (input) – 19 pin HDMI Type A
1 x HDMI (output) – 19 pin HDMI Type A
1 x IrDA (input) – mini jack
1 x IrDA (output) – mini jack
1 x audio (input) – mini jack
1 x audio (output) – mini jack
1 x USB 2.0 – Type B
1 x RS-232 – DB-9
1 x network (PoE) – RJ-45
Miscellaneous
Included Accessories 4 self-adhesive rubber feet, mounting brackets
MTBF 50,000 hours
Power
Power Device External power adapter
Power Consumption Operational 7.2 Watt
Dimensions & Weight
Width 8.4 in
Depth 5.9 in
Height 1.7 in
Weight 2.2 lbs
Dimensions & Weight (Shipping)
Shipping Weight 4.19 lbs
Manufacturer Warranty
Service & Support Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 – 90% (non-condensing)
Packaging Info
Package Weight 3.315 lb
Box Dimensions (LxWxH) 13.2 x 8.1 x 3.6″
