Gefen 4K Ultra-HD HDMI KVM over IP Receiver Package (US Power Cord)

Add to Wishlist
Key Features
  • US Power Cord
  • Extends HDMI, USB, RS-232, IR
  • Supports 2-Way Analog Audio
  • Supports HDR, HDCP 2.2 and 1.4
The Gefen 4K Ultra-HD HDMI KVM over IP Receiver Package supports a maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 and also supports 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio. Gefen’s AV over IP solutions provide high performance, scalable, expandable, and secure AV routing and distribution

AED2,399.99

Add to Wishlist

Gefen EXT-UHDKA-LANS Overview

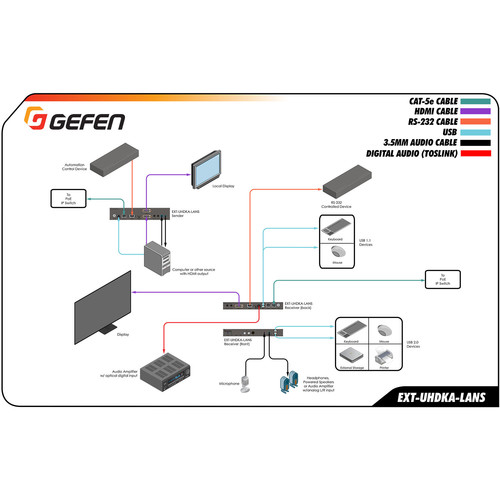

The Gefen 4K Ultra-HD HDMI KVM over IP Receiver Package supports a maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 and also supports 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio. Gefen’s AV over IP solutions provide high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. Gefen Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing, and backward-compatibility with the first generation products. Each Sender and Receiver extends and routes video, USB, 2-way audio, RS-232, and IR.

SKU: EXT-UHDKA-LANS-RX Category: Tag:

Gefen EXT-UHDKA-LANS Specs

General
Device Type Video/audio/infrared/serial extender
Form Factor External
Networking
Connectivity Technology Wired
Data Link Protocol HDMI
Max Resolution 2160p @ 60 Hz
Max Video Bandwidth 165 MHz
Max Transfer Distance 328 ft
Features LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, built-in audio de-embedder, Dolby Atmos support, DTS:X support, HD (HBR) audio
Compliant Standards HDCP 1.4, HDCP 2.2
Expansion / Connectivity

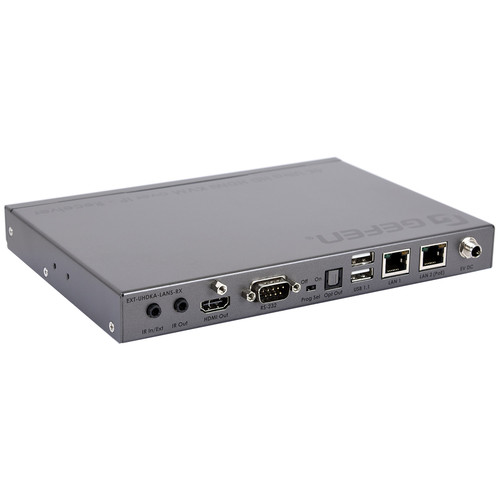

Interfaces 1 x HDMI (output) – 19 pin HDMI Type A
1 x IrDA (input) – mini jack
1 x IrDA (output) – mini jack
1 x microphone – mini jack
1 x headphones – mini jack
2 x USB 2.0 – Type A
1 x RS-232 – DB-9
1 x network (PoE) – RJ-45
1 x network – RJ-45
2 x USB – Type A
1 x TOSLINK
Miscellaneous
Included Accessories 4 self-adhesive rubber feet, mounting brackets
MTBF 50,000 hours
Power
Power Device External power adapter
Power Consumption Operational 22 Watt
Dimensions & Weight
Width 8.4 in
Depth 5.9 in
Height 1 in
Weight 31.74 oz
Dimensions & Weight (Shipping)
Shipping Weight 4.19 lbs
Manufacturer Warranty
Service & Support Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 – 90% (non-condensing)
Packaging Info
Package Weight 3.38 lb
Box Dimensions (LxWxH) 13.2 x 8.1 x 3.6″
