Gefen EXT-DVI-CP-FM10 DVI Fiber Optic Pigtail Module Extender with HDCP

Add to Wishlist

AED6,299.99

Add to Wishlist

Gefen EXT-DVIĀ Overview

TheĀ Gefen EXT-DVI-CP-FM10 DVI Fiber Optic Pigtail Module ExtenderĀ withĀ HDCPĀ support extends DVI up to 3300ā€™ (1005.84m) using single-strand 50 / 125Āµm multimode (OM2 / OM3) SC-terminated fiber optic cable to a supporting display at 1920 x1200 WUXGA resolution. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules.

The pigtail design of the sender and receiver modules relieves stress and clutter on the source and displays connector panels. Their compact design makes them suitable for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DVI.

Note:

The Sender module does not need to be externally powered unless the source does not supply enough power through the DVI connector. 62.5/125Āµm (OM1) fiber may also be used at reduced maximum range of up to 1000′ (304.80 m).
Extends DVI up to 3300′ (1005.84m) using a single-strand 50 / 125Āµm multimode (OM2 / OM3) SC-terminated fiber optic cable
Supports resolutions up to 1920 x 1200 (WUXGA)
Fiber optic transmission eliminates electromagnetic interference (EMI)
Pigtail design relieves stress and clutter on the source and display connector panels
DDC bi-directional support
HDCP pass-through
Compact sender and receiver modules provide a clean, easy installation
FCC and CE compliant for EMI / RFI emission
Category: Tag:

Gefen EXT-DVIĀ Specs

Maximum Pixel Clock 165 MHz

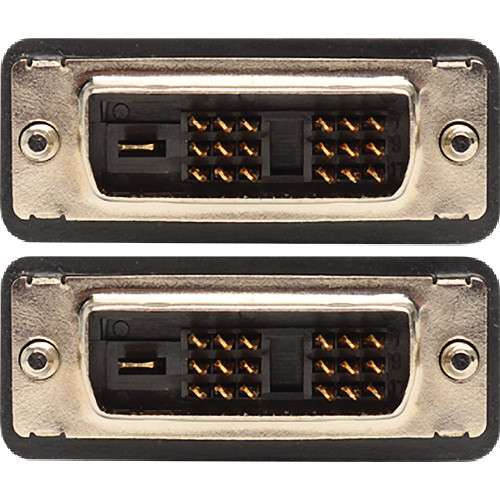

Video Connector Input (Sender): DVI-D, 19-pin, male
Output ( Receiver): DVI-D, 19-pin, male

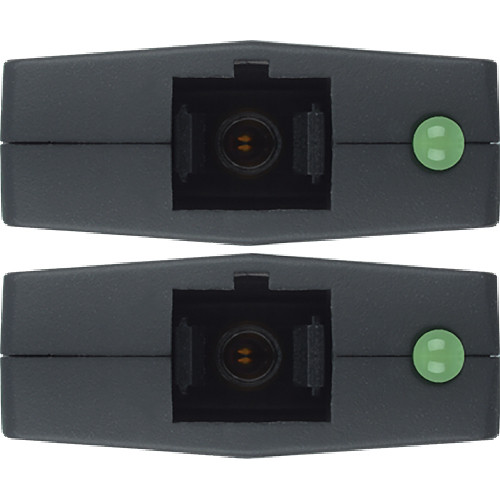

Link Connectors (Sender/Receiver) 1 x Type SC fiber (50 /125Ī¼m)
Power Supply Sender:5 VDC, (not needed for most applications)
Receiver:5 VDC
Power Consumption Receiver: 1.5 W (maximum)
Temperature Operating: 32 to 122Ā°F (0 to 50Ā°C)
Storage: -4 to +158Ā°F (-20 to +70Ā°C)
Relative Humidity 10 to 80 %
Certification FCC and CE compliant for EMI / RFI emission
Dimensions 1.54 x 0.63 x 11.49″ (39.11 x 16.00 x 291.84 mm)
Packaging Info
Package Weight 1.25 lb
Box Dimensions (LxWxH) 14 x 14 x 7.1″
