Gefen EXT-DVI-FM500 DVI FM 500 Extender

Add to Wishlist
Key Features
  • DVI over Fiber
  • Resolutions Up to 1920 x 1200
  • Transmission Up to 5000′
  • Automatic EDID Programming

AED3,799.00

Add to Wishlist

The EXT-DVI-FM500 DVI FM 500 Extender from Gefen allows you to extend your DVI source up to 5000′ using fiber-optic cable. The solution’s compact DVI-to-fiber modules connect to each other via just two LC fiber-optic cable strands. Extender units fit neatly behind equipment for a clean installation. An automatic EDID programming feature

Gefen EXT-DVI Overview

The EXT-DVI-FM500 DVI FM 500 Extender from Gefen allows you to extend your DVI source up to 5000′ using fiber-optic cable. The solution’s compact DVI-to-fiber modules connect to each other via just two LC fiber-optic cable strands. Extender units fit neatly behind equipment for a clean installation. An automatic EDID programming feature enables quick and correct synchronization of the video resolution to the display.

This solution extends resolutions of up to WUXGA (1920 x 1200) up to 5000′ in distance
It is immune to EMI (electromagnetic interference) due to its all-fiber signal transmission media
The automatic EDID programming feature enables quick and correct sync of source to display

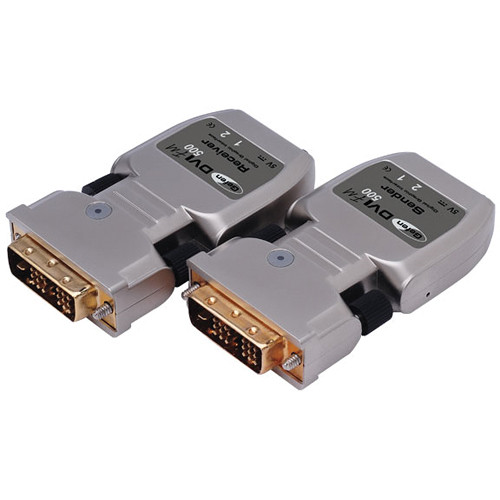

Compact sender and receiver units install in minutes
It supports single- and multi-mode fiber-optic cable types
SKU: EXT-DVI-FM500 Category: Tag:

Gefen EXT-DVI Specs

General
Inputs/Outputs Receiver:
1 x DVI (Unspecified)Output
1 x LCInput
Transmitter:
1 x LCOutput
1 x DVI (Unspecified)Input
Supported Resolutions 1920 x 1200
Maximum Transmission Distance 5000′ / 1500 m
Transmission Method Multimode/Singlemode Cable
Performance
Bandwidth 165 MHz
Power
DC Input Power 5 VDC at 0.5 A
Physical
Dimensions 0.5 x 1.5 x 2.5″ / 1.3 x 3.8 x 6.3 cm
Weight 1.0 lb / 453.6 g
Packaging Info
Package Weight 1.22 lb
Box Dimensions (LxWxH) 8.9 x 5.25 x 2.25″
