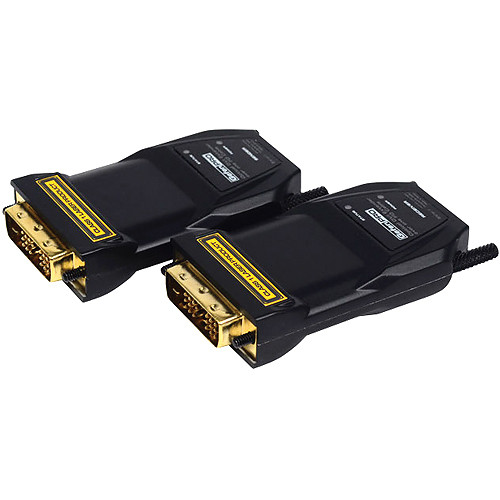

Gefen GEF-DVI-FM1500 Optical DVI Extender with Recordable EDID

Add to Wishlist

Add to Wishlist

Gefen DVI-FM1500 Overview

The GefenPRO GEF-DVI-FM1500 Optical DVI Extender with Recordable EDID extends a DVI source up to 3,280’ (1,000 m) using a single-mode (50 µ) fiber optic cable. Virtual EDID programming provides fast integration and compatibility with the input video source and the display. Resolutions up to 1920 x 1200 (WUXGA) at 60 Hz are also supported. You can connect the sender unit to the DVI source and the receiver unit to the DVI display. Use a single strand of the SC fiber optic cable to connect the sender unit to the receiver unit. Connect the included 5 VDC power supply to the sender unit and the power adapter to an available electrical outlet.

Note:

When using a multimode fiber optic cable, the DVI source can be extended to up to 1,640′ (500 m).
Extends DVI source to up to 3,280′ (1,000 m) using a single-mode fiber optic cable
Extends DVI source to up to 1,640′ (500 m) using a multimode fiber optic cable
Supports resolutions up to 1920 x 1200 (WUXGA)
Optical signal transmission provides good immunity to electromagnetic interference
Virtual EDID programming feature provides quick installation and compatibility between source and display
Uses 1 strand of single-mode or multimode SC-terminated fiber optic cable
Fully supports DVI 1.0 specifications and DDC2B via virtual DDC
Sender module does not require power if the DVI source provides sufficient power on pin 14 of the DVI connector (most sources do)
Category: Tag:

Gefen DVI-FM1500 Specs

Maximum Pixel Clock 165 MHz
Wavelength Optical: 1310 / 1550 nm (typical)
Video Input Sender: DVI-D, 19-pin, male
Video Output Receiver: DVI-D, 19-pin, male

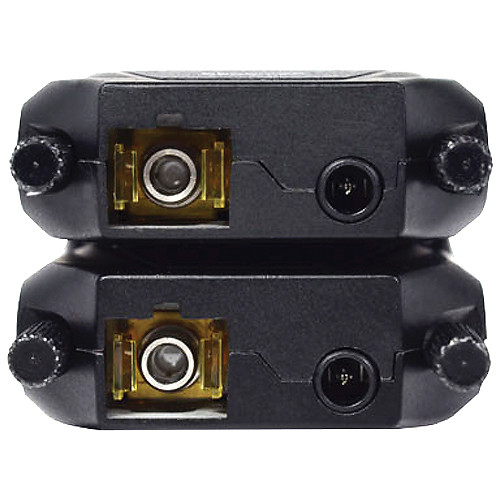

Fiber Optic Connector Sender / Receiver Connectors: 1x SC type
Power Supply Sender / Receiver: 5 VDC
Power Consumption Sender / Receiver: 250 mA (maximum) / 190 mA (maximum)
Dimensions 1.96 x 0.59 x 2.98″ (49.78 x 14.98 x 75.69 mm)
