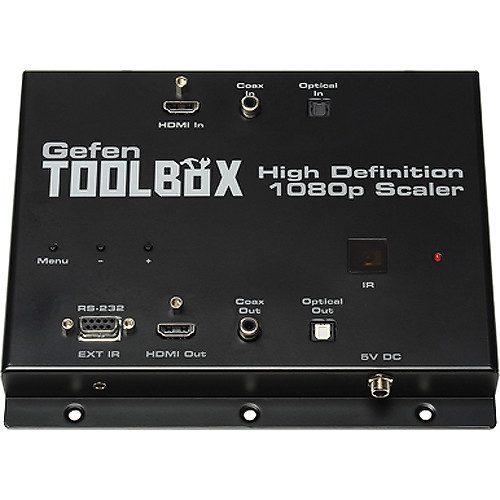

Gefen ToolBox High Definition 1080p HDMI Scaler (Black)

Add to Wishlist
Key Features
  • Upscales/Downscales to up to 1080p
  • Designed for Color, Sharp Edges & More
  • RCA and Optical S/PDIF Input/Output
  • Auto 3:2 and 2:2 Pull-Down
  • Aspect Ratio Control
  • Audio Delay to Match Audio/Video Timing
  • Front Panel / IR Remote OSD Control
  • RS-232 Control
  • Wall-Mountable

AED1,499.00

Add to Wishlist

The Gefen ToolBox High Definition 1080p HDMI Scaler upscales/downscales an HDMI signal to up to 1080p resolution using a custom scaling algorithm designed to deliver optimal color, intensified contrast and details, vivid skin tones, and sharp edges. The scaler supports a vast array of audio formats, including up to 8 channels of LPCM via HDMI and 2-channel LPCM via independent RCA and optical S/PDIF input/output. An on-screen display menu is accessible using menu buttons on the device or the included IR remote control. If you want to set the output resolution manually, you can do so using the OSD. You can additionally adjust contrast, brightness, and other settings. The scaler also offers an RS-232 port. The scaler is wall-mountable and comes with a locking power supply.

Key Features
  • Upscale/downscale an HDMI signal to up to 1080p resolution
  • HDMI input/output
  • RCA coax and TOSLINK input/output
  • Proprietary scaling algorithm designed to deliver accurate color, intensified contrast and details, vivid skin tones, and sharp edges
  • Supports Dolby Digital, DTS-HD Master Audio, Dolby TrueHD, and up to 8 channels of LPCM via HDMI
  • Supports Dolby Digital AC3, DTS Digital Surround, and 2-channel LPCM via S/PDIF
  • Auto 3:2 pull-down and 2:2 pull-down detection and recovery
  • Aspect ratio control
  • Digital audio delay to match audio/video timing
  • On-screen display menu (OSD) accessible using menu buttons on the device or the included IR remote control; allows you to set the output resolution as well as adjust contrast, brightness, and other settings
  • RS-232 control
  • Field-upgradeable
  • Wall-mountable
Category: Tag:
Maximum Pixel Clock
225 MHz
Input DDC Signal
5 Vpp (TTL)
Input Video Signal
1.2 Vpp
Input
HDMI: 1 x HDMI type A (DVI-D supported via optional adapter)
S/PDIF: 1 x RCA, 1 x TOSLINK
Output
HDMI: 1 x HDMI type A (DVI-D supported via optional adapter)
S/PDIF: 1 x RCA, 1 x TOSLINK
Supported Audio
Supports Dolby Digital, DTS-HD Master Audio, Dolby TrueHD, and up to 8 channels of LPCM via HDMI

Supports Dolby Digital AC3, DTS Digital Surround, and 2-channel LPCM via S/PDIF
Serial Connection
RS-232: 1 x DB-9
IR Extender
1 x 3.5 mm mini-stereo jack
Power Supply
5 VDC, locking
Dimensions
8 x 7 x 1″ / 20.3 x 17.8 x 2.5 cm
Packaging Info
Package Weight
2.71 lb
Box Dimensions (LxWxH)
13.25 x 8.25 x 3.75″
