Gefen VGA-AUDIO-141 Overview

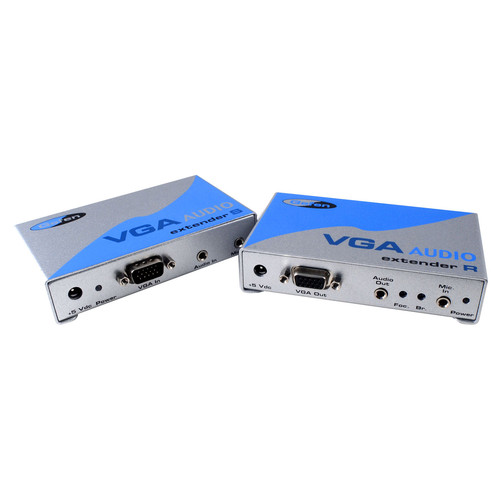

The Gefen Inc. VGA-AUDIO-141 VGA & Audio Extender is a transmitter and matching receiver kit that allows a user to separate computer components up to 150′ (46 m)—far beyond the reach of standard desktop cables.

It uses inexpensive and common CAT5 network cable to connect the sender and receiver over great distances. It supports HD video and does not degrade the resolution during transmission.

Sample applications include broadcast or security installations where a computer needs to be in a remote and/or secure location away from the displays.

Extends any VGA compliant device up to 150 feet (46 m) away from the computer
Helps to eliminate computer noise or hum and electro-magnetic interference created by desktop computers
Uses one inexpensive standard CAT-5 network cable to connect sender and receiver
Supports resolutions up to 1080p, 2K, and 1920 x 1200
Category: Tags: ,

Gefen VGA-AUDIO-141 Specs

General

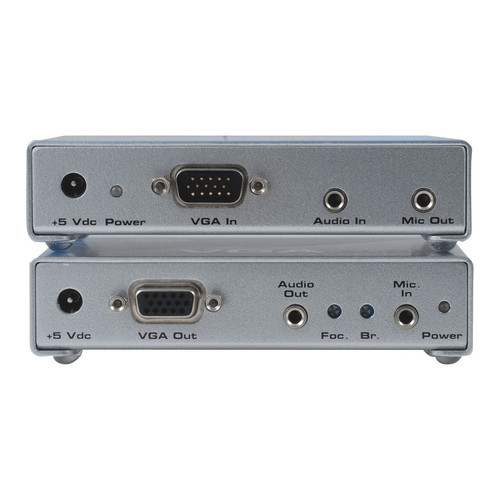

Inputs/Outputs Transmitter:
1 x DE-15/DB-15 (VGA) MaleInput
1 x 1/8″ / 3.5 mm (Audio) FemaleInput
1 x RJ45 (Ethernet)Output
Receiver:
1 x RJ45 (Ethernet)Input
1 x DE-15/DB-15 (VGA)Output
1 x 1/8″ / 3.5 mm (Audio)Output
Performance
Bandwidth 350 MHz (Video)
120 MHz
Frequency Response 15 to 70kHz (Horizontal)
30 to 170Hz (Vertical)
Signal Level 1.2 Vp-p (Video)
Power
Power Consumption 5 W
DC Input Power 5 VDC
Physical
Dimensions 4.0 x 3.0 x 1.2″ / 10.1 x 7.6 x 3.0 cm
Packaging Info
Package Weight 2.75 lb
Box Dimensions (LxWxH) 12 x 6 x 4.3″
