Gefen VGA Extender SRN

Add to Wishlist
Key Features
  • VGA Distribution System
  • VGA over CAT-5
  • Cable Runs Up to 150′
  • Resolutions Up to 1080p & 1920 x 1200

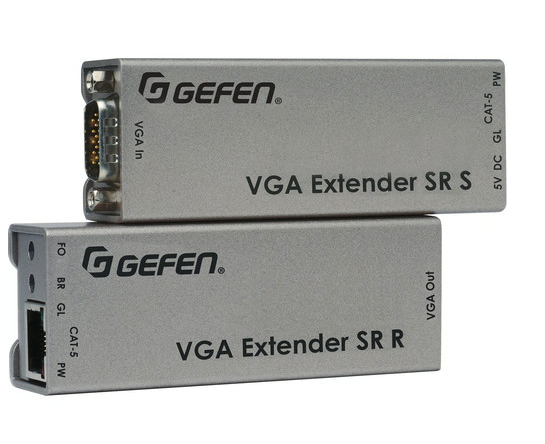

The VGA Extender SRN from Gefen is a distribution system that allows you to extend VGA signals by transporting them over CAT-5 Ethernet cable. The system consists of a transmitter that connects to your VGA source, which transports the signal over CAT-5 cable.

AED799.99

Add to Wishlist

Gefen EXT-VGA Overview

The VGA Extender SRN from Gefen is a distribution system that allows you to extend VGA signals by transporting them over CAT-5 Ethernet cable. The system consists of a transmitter that connects to your VGA source, which transports the signal over CAT-5 cable. The receiver then accepts this signal and translates to its original format for output.

This unit supports transmission distances of up to 150′. Resolutions up to 1080p or 1920 x 1200 are also supported.

VGA over CAT-5
Use this system to extend VGA signals by transporting them over CAT-5 Ethernet cable.
Transmission Distance
Cable runs of up to 150′ are possible with this device.
Resolution
It supports resolutions up to 1080p or 1920 x 1200
SKU: EXT-VGA-141SRN Category: Tag:

Gefen EXT-VGA Specs

General
Inputs/Outputs Receiver:
1 x DE-15/DB-15 (VGA) FemaleOutput
1 x RJ45 (Ethernet)Input
Transmitter:
1 x DE-15/DB-15 (VGA) MaleInput
1 x RJ45 (Ethernet)Output
Supported Resolutions 1920 x 1200
Performance
Bandwidth 350 MHz
Frequency Response 15 to 70kHz (Horizontal)
30 to 170Hz (Vertical)
Signal Level 1.2 Vp-p (Video)
5 Vp-p
Power
DC Input Power 5 VDC at 1 A
Physical
Dimensions 1.8 x 3.7 x 1.4″ / 4.6 x 9.4 x 3.6 cm
Packaging Info
Package Weight 1.7 lb
Box Dimensions (LxWxH) 9.4 x 6.2 x 2.9″
