GefenToolBox 1:4 Splitter for HDMI 4Kx2K – video/audio splitter – 4 ports GTB-HD4K2K-144C-BLK

Availability:

10 in stock


AED1,399.00

10 in stock

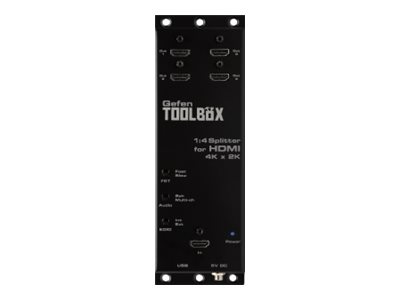

Gefen GTB-HD4K2K-144C-BLK 4K Ultra HD 1:4 Splitter for HDMI

Overview

The Gefen ToolBox 1:4 Splitter for HDMI 4Kx2K distributes one high-definition A/V source to four Ultra HD displays simultaneously, without loss of quality or resolution. It works with any high-definition source and supports resolutions up to 4K x 2K (3840 x 2160 at 30 Hz). It features Fast Switching Technology, and supports HDCP, deep color, 3DTV pass-through, and lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio.

Fast Switching Technology (FST) is a Gefen software implementation for HDMI products. FST was created to improve the lengthy HDMI authentication process, based on the HDMI and HDCP specifications. FST allows connecting/disconnecting or turning on/off of displays without having these activities affect other displays in the same distribution system.

  • Simultaneously displays any high-definition source on up to four Ultra HD displays
  • Supports HD resolutions up to Ultra HD 4K x 2K (3840 x 2160 at 30 Hz) and 1080p Full HD
  • Supports 12-bit deep color
  • 3DTV pass-through
  • Lip sync pass-through
  • FST technology speeds up HDCP authentication process
  • Fast and slow FST modes
  • Advanced EDID management for rapid integration of source and displays
  • Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters
  • Field-upgradeable firmware using mini-USB port
  • Locking power supply
  • Surface-mountable
SKU: GTB-HD4K2K-144C-BLK Category: Tags: , ,

Specifications

General
Device Type Video/audio splitter – 4 ports
Enclosure Type Surface-mountable
Subtype HDMI
Ports 4 x HDMI
Max Resolution 4096 x 2160
Features Firmware upgradable, HDCP compliant, 3DTV support, 4K resolution support, Advanced EDID Management, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support
Compliant Standards HDCP 1.4
Status Indicators Power
Expansion / Connectivity
Interfaces 1 x HDMI inputĀ 4 x HDMI outputĀ 1 x mini-USB Type B
Power
Power Device External power adapter
Power Consumption Operational 10 Watt
Miscellaneous
Color Black
Cables Included 1 x HDMI cable – 6 ft
Dimensions & Weight
Width 3 in
Depth 1 in
Height 9 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
General
Compliant Standards HDCP 1.4
Device Type Video/audio splitter – 4 ports
Enclosure Type Surface-mountable
Features Firmware upgradable, HDCP compliant, 3DTV support, 4K resolution support, Advanced EDID Management, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support
Max Resolution 4096 x 2160
Ports 4 x HDMI
Status Indicators Power
Subtype HDMI
Dimensions & Weight
Depth 1 in
Height 9 in
Width 3 in
Environmental Parameters
Max Operating Temperature 104 °F
Min Operating Temperature 32 °F
Expansion / Connectivity
Interfaces 1 x HDMI input ¦ 4 x HDMI output ¦ 1 x mini-USB Type B
Miscellaneous
Cables Included 1 x HDMI cable – 6 ft
Color Black
Power
Power Consumption Operational 10 Watt
Power Device External power adapter
